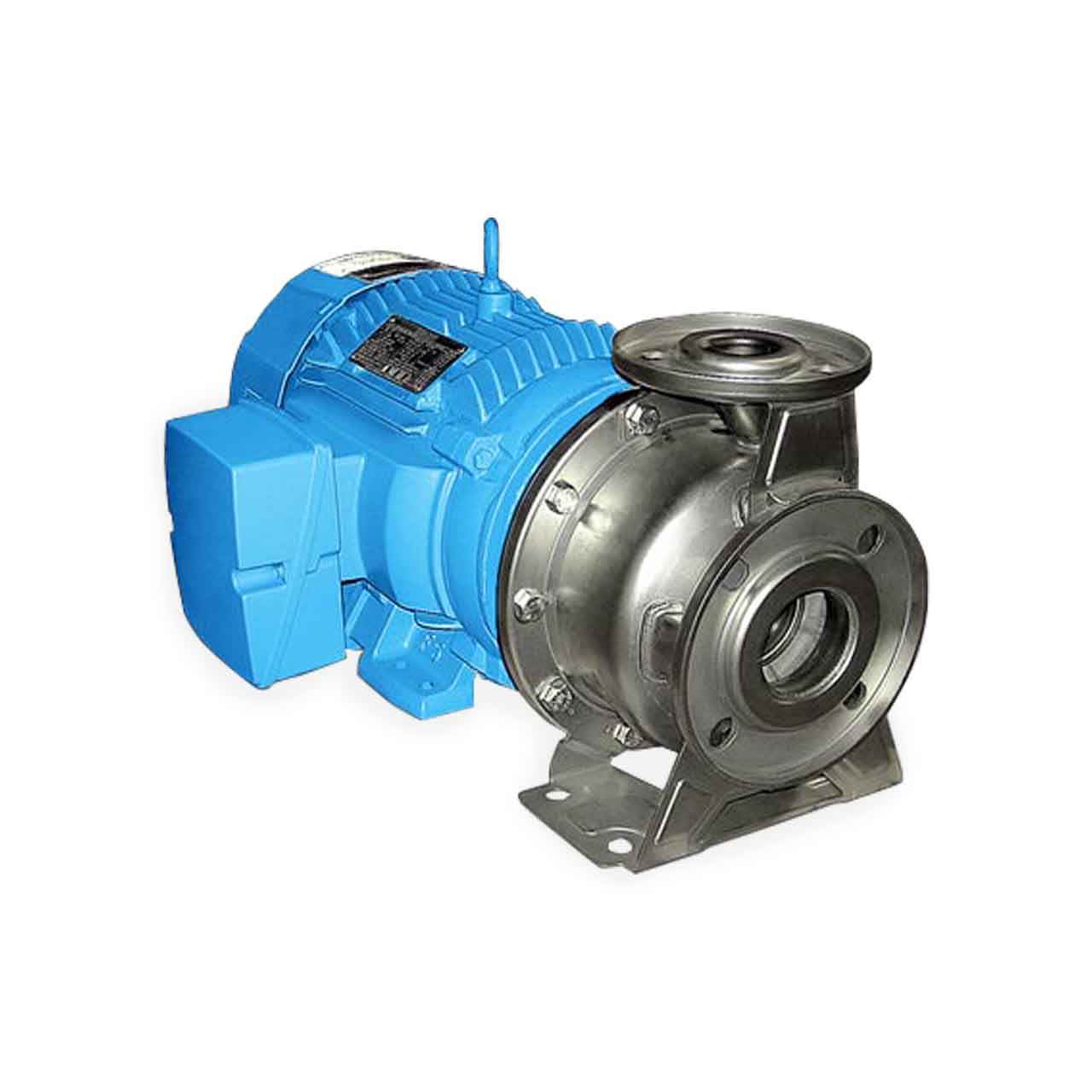

Barmesa PS1 1/4-1-4 End-Suction Centrifugal Stainless Steel Pump 1.0 HP 3PH
Barmesa PS1 1/4-1-4 End-Suction Centrifugal Stainless Steel Pump 1.0 HP 3PH
SKU : BMS62390101
In Stock Quantity:0
:
Brand
:
Regular price
$5,435.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump
Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Applications include Booster Systems, Water Transfers, Chilled Water Systems and High Flow-Rate/Medium Pressure.
Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Features
- NEMA JM, Totally Enclosed With External Ventilation; 60 Hz, 3450 RPM (2 poles) and 1750 RPM (4 poles), 230/460 Volts Three Phase. Requires Overload Protection to be Included in Control Panel.
- 304 Series Stainless Steel Housing
- Mechanical Type 21, Lubricated by Water Seal
- Seal is Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
- Impeller is made of 304 Series Stainless Steel
- 2.0" 150 LB ANSI, Flange Horizontal Suction
- 1¼" 150 LB ANSI, Flange Horizontal Discharge
- Temperature Rating: 212 °F (100 °C); With Seal for High Temperature Rises up to 250 °F (121 °C).
Specifications
Specifications
Barmesa PS1¼-1-4 End-Suction Centrifugal Pump Stainless Steel Specifications
- DISCHARGE SIZE: 1¼" 150 lb ANSI, Flange Horizontal
- INLET SIZE: 2.0" 150 lb ANSI, Flange Horizontal
- MAXIMUM CAPACITY: 78 GPM
- MAXIMUM HEAD: 51'
- IMPELLER MATERIAL: 304 Stainless Steel / Closed
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 1.0 HP @ 1750 RPM
- MOTOR TYPE: TEFC (Totally Enclosed Fan-Cooled)
- VOLTAGE: 3ø - 230/460V
- MAXIMUM LIQUID TEMPERATURE: 250°F (121°C)
Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Product Resources
Download Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Catalog Sheet
Download Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Manual
