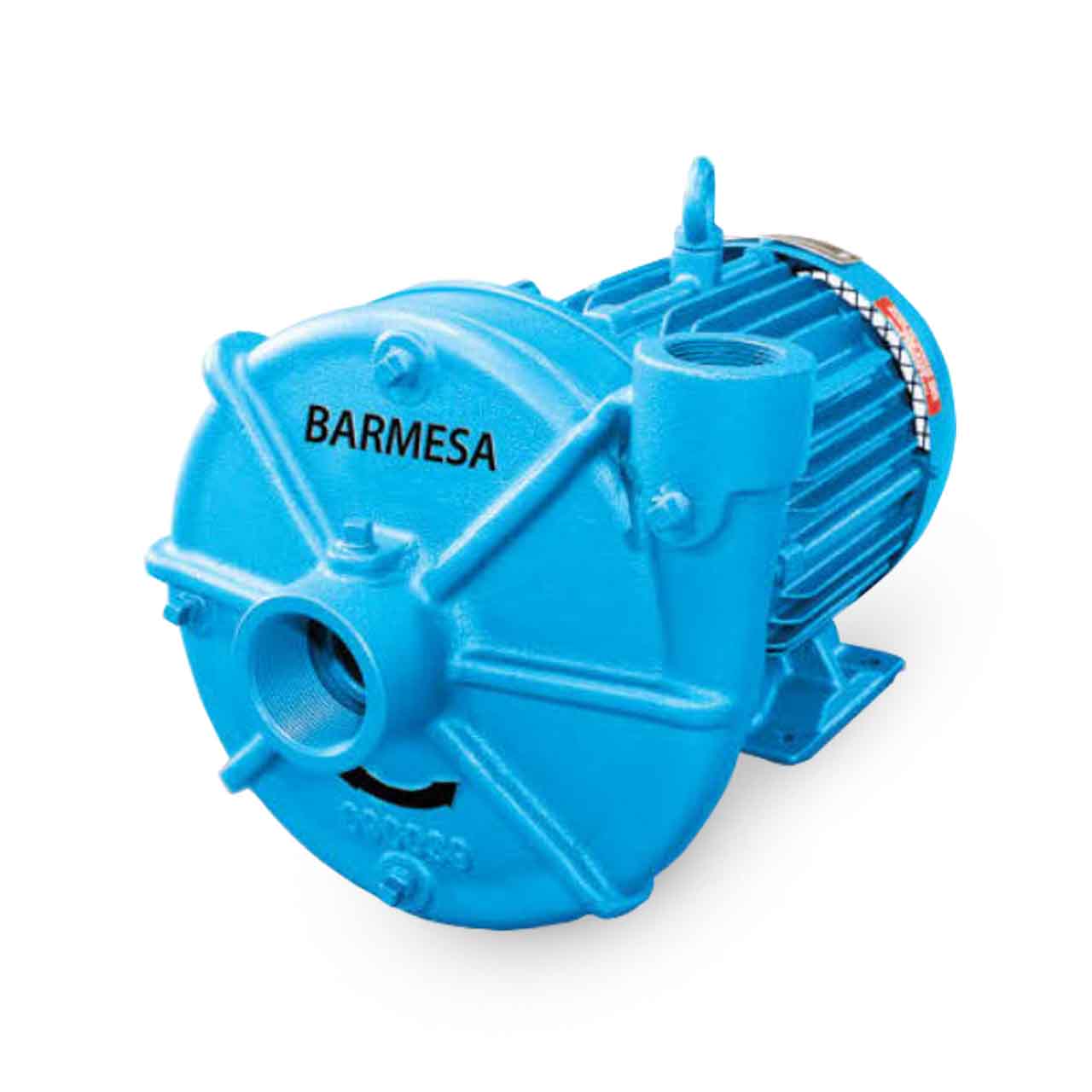

Barmesa IA2-25-2 TEFC End-Suction Centrifugal Pump 25 HP 3PH
Barmesa IA2-25-2 TEFC End-Suction Centrifugal Pump 25 HP 3PH
SKU : BMS62212048
In Stock Quantity:0
:
Brand
:
Regular price
$6,065.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa IA Series End-Suction Centrifugal Pump
End-Suction Centrifugal Pump Applications include Booster Systems, Water Transfers, Chilled Water Systems and High Flow-Rate/Medium Pressure. High Quality Premium Efficiency TEFC electric motors, 1 & 3 Phases, 60 Hz, NEMA with rated output from 2 HP to 125 HP, 1750 & 3500 RPM and frame sizes from 183JM to 405JM.
Barmesa IA Series End-Suction Centrifugal Pump Applications
- Booster Systems
- Water Transfer
- Chilled Water System
- High Flow-Rate/ Medium Pressure
Barmesa IA Series End-Suction Centrifugal Pump Features
- High Quality Premium Efficiency TEFC Electric Motors, Designed and Developed in Accordance with Industry Standards for Industrial and Commercial Pumping Applications.
- Cast Iron Motor ASTMA-48, Class 30 Housing
- Mechanical, Type 01 Seal
- Seal is Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
- Impeller is made of Cast Iron ASTM A-48 Class 30
Specifications
Specifications
Barmesa IA2-25-2 TEFC Series End-Suction Centrifugal Pump Specifications
- DISCHARGE SIZE: 2.0" NPT
- INLET SIZE: 2.5" NPT
- MAXIMUM CAPACITY: 256 GPM
- MAXIMUM HEAD: 337.5'
- IMPELLER MATERIAL: Cast Iron ASTMA A-48 Class 30/ Dynamically Balanced
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 25 HP @ 3500 RPM
- MOTOR TYPE: TEFC (Totally Enclosed, Fan Cooled)
- VOLTAGE: 3ø, 230/460V, 60Hz
Barmesa IA Series End-Suction Centrifugal Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa IA Series End-Suction Centrifugal Pump Product Resources
Download Barmesa IA Series End-Suction Centrifugal Pump Catalog Sheet
Download Barmesa IA Series End-Suction Centrifugal Pump Manual
Download Barmesa IA Series End-Suction Centrifugal Pump Curves
