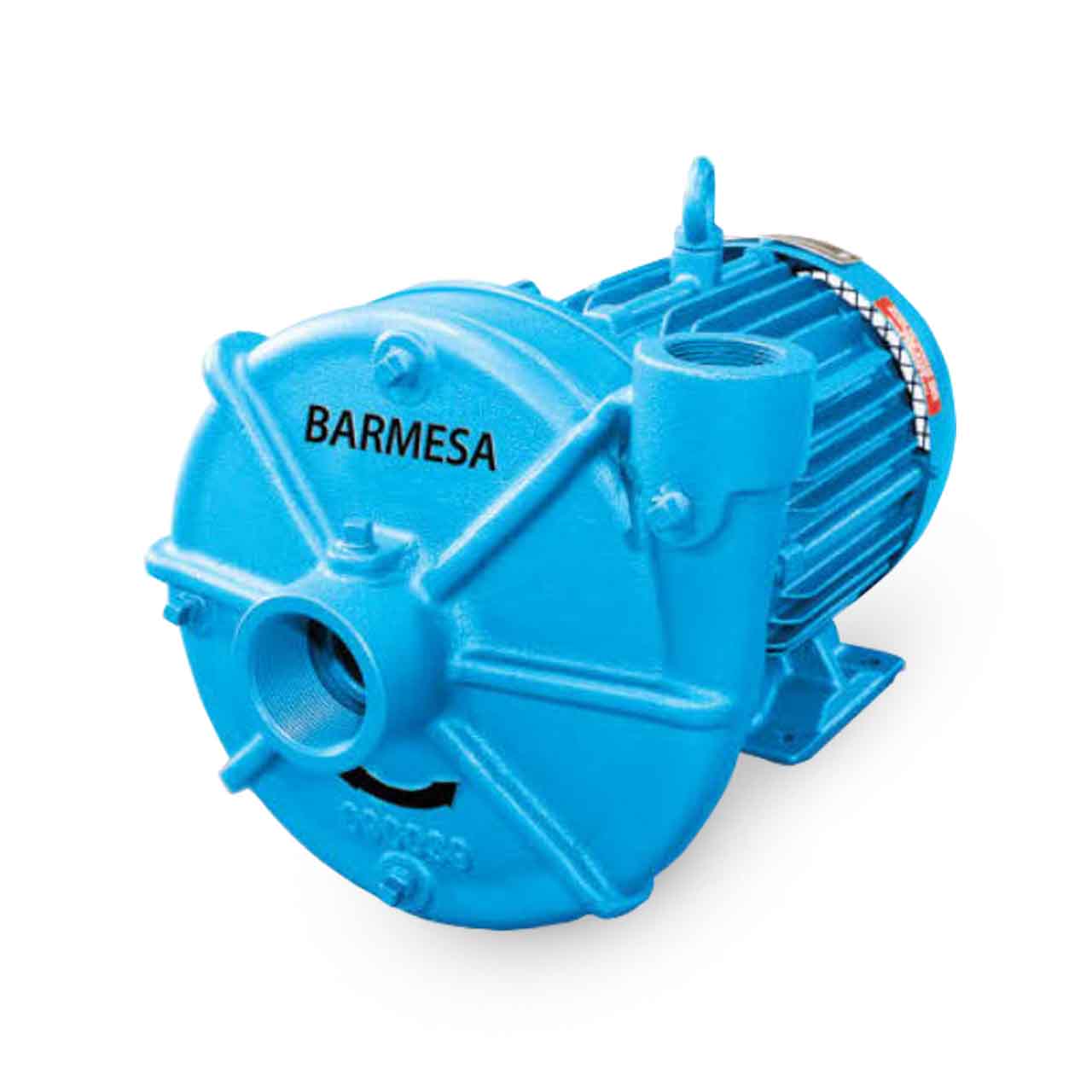

Barmesa IA11/2-7.5-2 ODP End-Suction Centrifugal Pump 7.5 HP 3PH
Barmesa IA11/2-7.5-2 ODP End-Suction Centrifugal Pump 7.5 HP 3PH
SKU : BMSIA112752
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - End-Suction Centrifugal
Barmesa IA Series End-Suction Centrifugal Pump
End-Suction Centrifugal Pump Applications include Booster Systems, Water Transfers, Chilled Water Systems and High Flow-Rate/Medium Pressure. High Quality Premium Efficiency TEFC or ODP electric motors, 1 & 3 Phases, 60 Hz, NEMA with rated output from 2 HP to 125 HP, 1750 & 3500 RPM and frame sizes from 183JM to 405JM.
Barmesa IA Series End-Suction Centrifugal Pump Features and Benefits
- High Quality Premium Efficiency TEFC or ODP Electric Motors, Designed and Developed in Accordance with Industry Standards for Industrial and Commercial Pumping Applications.
- Cast Iron Motor ASTMA-48, Class 30 Housing
- Mechanical,Type 01 Seal
- Seal is Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
- Impeller is made of Cast Iron ASTM A-48 Class 30
Specifications
Specifications
Barmesa IA1½-7.5-2 ODP End-Suction Centrifugal Pump Specifications
- DISCHARGE SIZE: 1.5" NPT
- INLET SIZE: 2.0" NPT
- MAXIMUM CAPACITY: 138 GPM
- MAXIMUM HEAD: 240'
- IMPELLER MATERIAL: Cast Iron ASTM A-48 Class 30, Dynamcilly Balanced
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 20 HP
- MOTOR TYPE: ODP
- VOLTAGE: 3ø, 230/460V, 60Hz
- MAXIMUM LIQUID TEMPERATURE: 160°F (71°C)
Barmesa IA Series End-Suction Centrifugal Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa IA Series End-Suction Centrifugal Pump Product Resources
Download Barmesa IA Series Catalog Sheet
