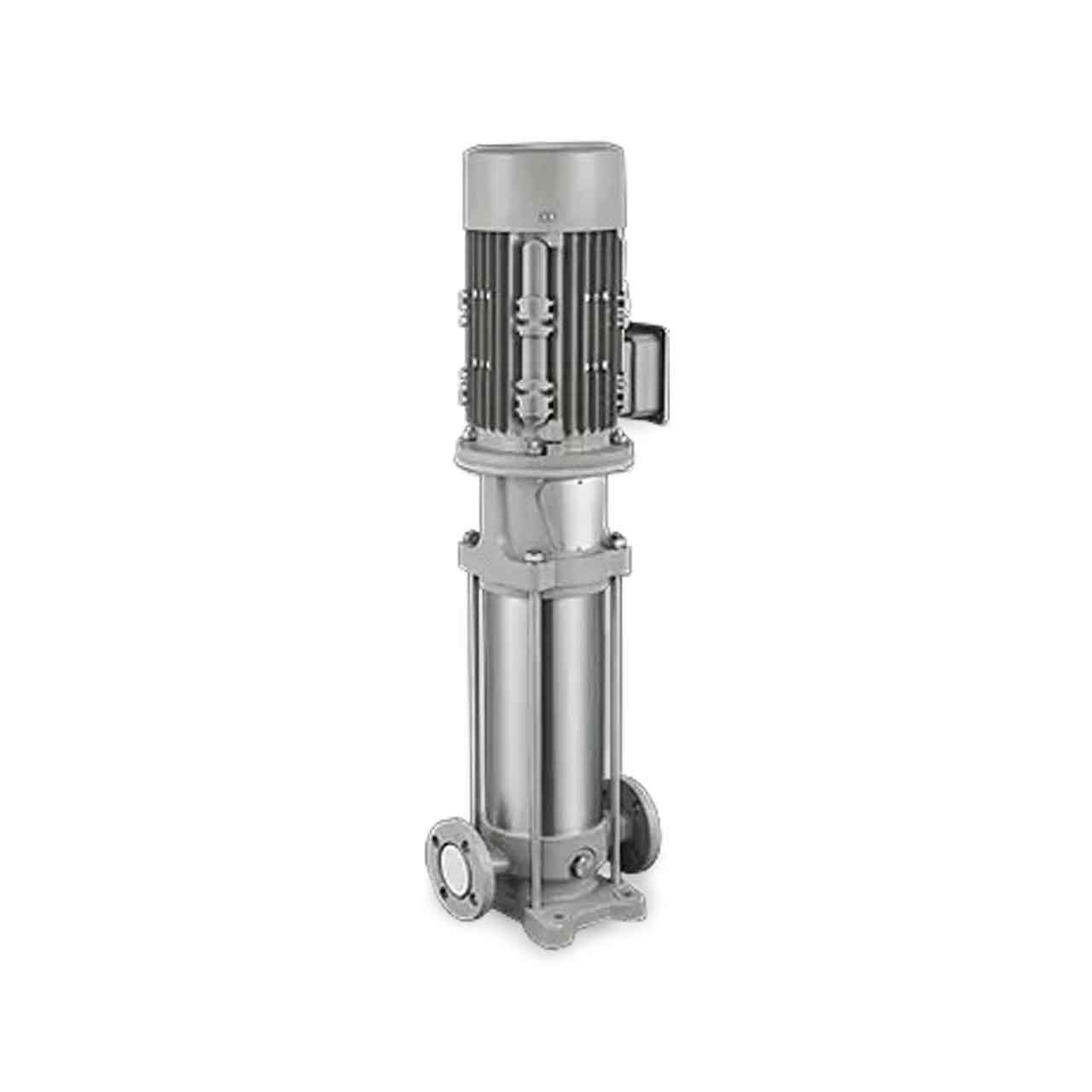

Barmesa HMV45-130-2003 Vertical Multi-Stage Centrifugal Pump 20 HP
Barmesa HMV45-130-2003 Vertical Multi-Stage Centrifugal Pump 20 HP
SKU : BMS70120107R
In Stock Quantity:0
:
Regular price
$7,556.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa HMV Vertical Multi-Stage Centrifugal Pump
Our vertical multi-stage centrifugal pumps are driven by premium efficiency electric motors. The output shaft of the motor is directly connected with the pump shaft through a coupling. The pressure resistant cylinder and flow passage components are fixed between the pump head and the inlet and outlet section with clamping bolts. The inlet and outlet are located at the bottom of the pump in the same plane. This type of pump can be equipped with a smart protector to effectively prevent dry running, phase-loss and overload.
Barmesa HMV Vertical Multi-Stage Centrifugal Pump Applications
- Water Supply - Water Filtration and Transport, Water Distribution, Net Pressure Increase for High-Rise Buildings and Industrial Water Pressure Boosting.
- Industrial Boosting - Process Water System, Cleaning System, High Pressure Washing System, Fire Fighting System and Automobile Cleaning System.
- Industrial Liquid Transportation - Refrigeration and Air Conditioning System, Boiler Feed System, Temperature System and Machine Adjustment.
- Irrigation - Irrigation by Region, Sprinkler Irrigation and Drip Irrigation.
- Delivery - Oil and Alcohol, Acid and Alkali and Ethylene, Glycol and Coolant.
- Water Treatment - Ultrafiltration System, Reverse Osmosis System and Distillation System.
Barmesa HMV Vertical Multi-Stage Centrifugal Pump Features
- PREMIUM EFFICIENCY MOTOR
- 1 HP up to 75 HP
- Totally Enclosed Fan-Cooled
- Three Phase, 3500 RPM
- 230/460 Volts, 60 Hz
- IP55 Protection Class
- Class F Insulation
- OPERATING CONDITIONS
- Thin, Clean, Non-Flammable and Non-Explosive Liquid, Free of Granules and Fibers
- Liquid Temperature: Hot Water Type: 5 °F - 248 °F
- Ambient Temperature up to 104 °F
- Height Up to 3280.83 ft
Specifications
Specifications
Barmesa HMV45-130-2003 Vertical Multi-Stage Centrifugal Pump Specifications
- DISCHARGE SIZE: 1-1/2"
- INLET SIZE: 1-1/2"
- MAXIMUM CAPACITY: 70 GPM
- MAXIMUM HEAD: 858'
- IMPELLER MATERIAL: Stainless Steel
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 20 HP
- MOTOR TYPE: (TEFC) Totally Enclosed Fan-Cooled
- VOLTAGE: 230/460V
- STAGES: 13
- MAXIMUM LIQUID TEMPERATURE: 248°F
Barmesa HMV Vertical Multi-Stage Centrifugal Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa HMV Vertical Multi-Stage Centrifugal Pump Product Resources
Download Barmesa HMV Vertical Multi-Stage Centrifugal Pump Series Brochure
Download Barmesa HMV Vertical Multi-Stage Centrifugal Pump Series Manual
Download Barmesa HMV Vertical Multi-Stage Centrifugal Pump Series Submittal Data Sheet
