Barmesa HMV300-20-4003 Vertical Multi-Stage Centrifugal Pump 40 HP
Barmesa HMV300-20-4003 Vertical Multi-Stage Centrifugal Pump 40 HP
SKU : BMS70120117H
In Stock Quantity:0
:
Brand
:
Regular price
$14,121.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

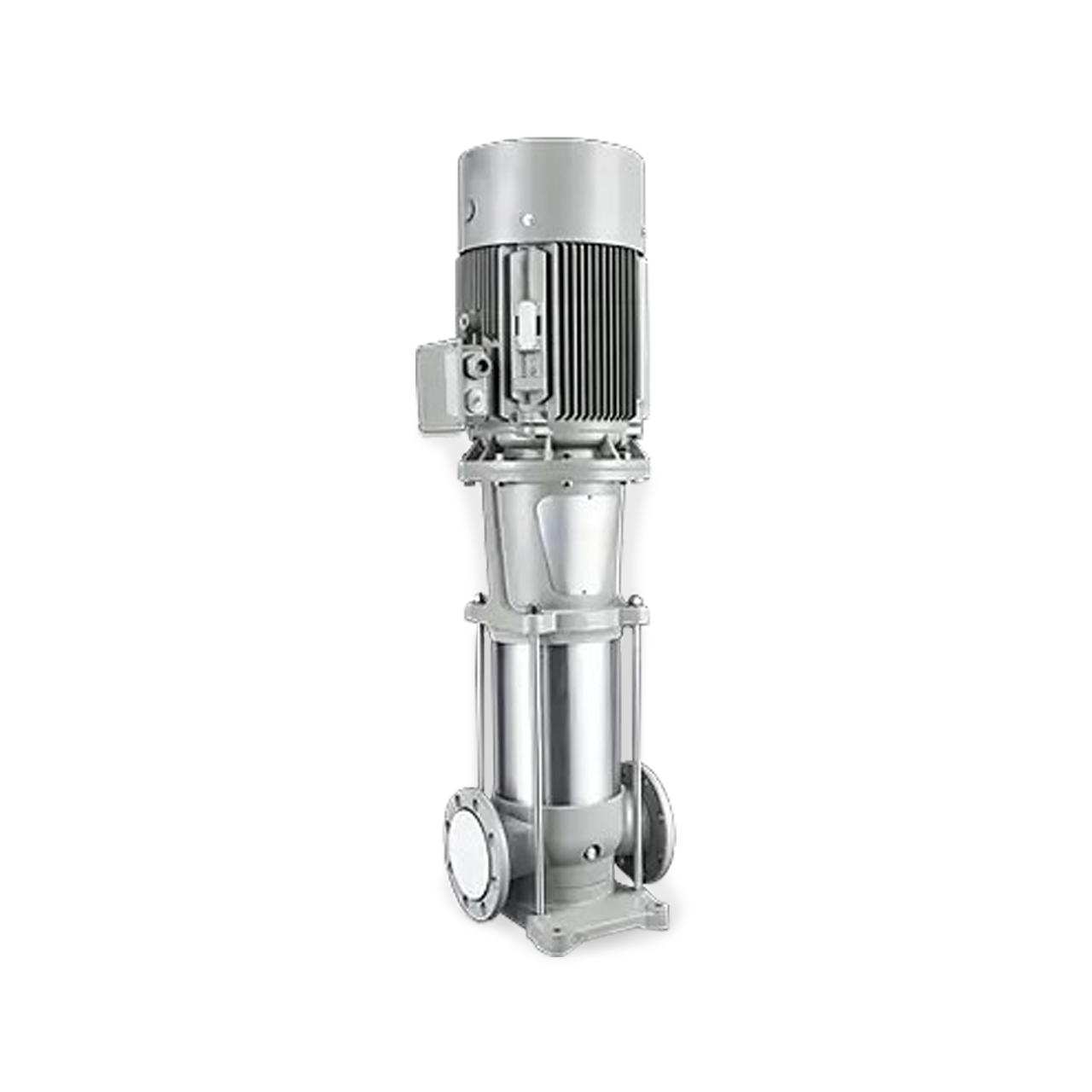

Barmesa HMV Vertical Multi-Stage Centrifugal Pump
Slim and compact, the HMV Series inline vertical multistage centrifugal pump can handle a variety of fluid applications. Certified NSF 61 for drinking water safe, it can pump thin, non-flammable, and non-explosive liquids at different temperatures, flow rates and pressure ranges. Designed to fit into tight spaces, the HMV Series is a versatile and reliable pump for many industrial liquid media. The HMV Series is the smart choice for applications that require increased pressure, high pressure fluid transfer and applications that require hygiene.
Barmesa Vertical Multi-Stage Centrifugal Pump Applications
- Water Supply - Water Filtration and Transport, Water Distribution, Net Pressure Increase for High-Rise Buildings and Industrial Water Pressure Boosting.
- Industrial Boosting - Process Water System, Cleaning System, High Pressure Washing System, Fire Fighting System and Automobile Cleaning System.
- Industrial Liquid Transportation - Refrigeration and Air Conditioning System, Boiler Feed System, Temperature System and Machine Adjustment.
- Irrigation - Irrigation by Region, Sprinkler Irrigation and Drip Irrigation.
- Delivery - Oil and Alcohol, Acid and Alkali and Ethylene, Glycol and Coolant.
- Water Treatment - Ultrafiltration System, Reverse Osmosis System and Distillation System.
Barmesa Vertical Multi-Stage Centrifugal Pump Features
- PREMIUM EFFICIENCY MOTOR
- 1 HP up to 75 HP
- Totally Enclosed Fan-Cooled
- Three Phase, 3500 RPM
- 230/460 Volts, 60 Hz
- IP55 Protection Class
- Class F Insulation
- OPERATING CONDITIONS
- Thin, Clean, Non-Flammable and Non-Explosive Liquid, Free of Granules and Fibers
- Liquid Temperature: Hot Water Type: 5 °F - 248 °F
- Ambient Temperature up to 104 °F
- Height Up to 3280.83 ft
Specifications
Specifications
Barmesa HMV300-20-4003 Vertical Multi-Stage Centrifugal Pump Specifications
- DISCHARGE SIZE: 4.0"
- INLET SIZE: 4.0"
- MAXIMUM CAPACITY: 440 GPM
- MAXIMUM HEAD: 297'
- IMPELLER MATERIAL: Stainless Steel
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 40 HP
- MOTOR TYPE: (TEFC) Totally Enclosed Fan-Cooled
- VOLTAGE: 230/460V
- STAGES: 2
- MAXIMUM LIQUID TEMPERATURE: 248°F
Barmesa Vertical Multi-Stage Centrifugal Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa Vertical Multi-Stage Centrifugal Pump Product Resources
Download Barmesa HMV Vertical Multi-Stage Centrifugal Pump Series Brochure
Download Barmesa HMV Vertical Multi-Stage Centrifugal Pump Series Manual
Download Barmesa HMV Vertical Multi-Stage Centrifugal Pump Series Submittal Data Sheet
