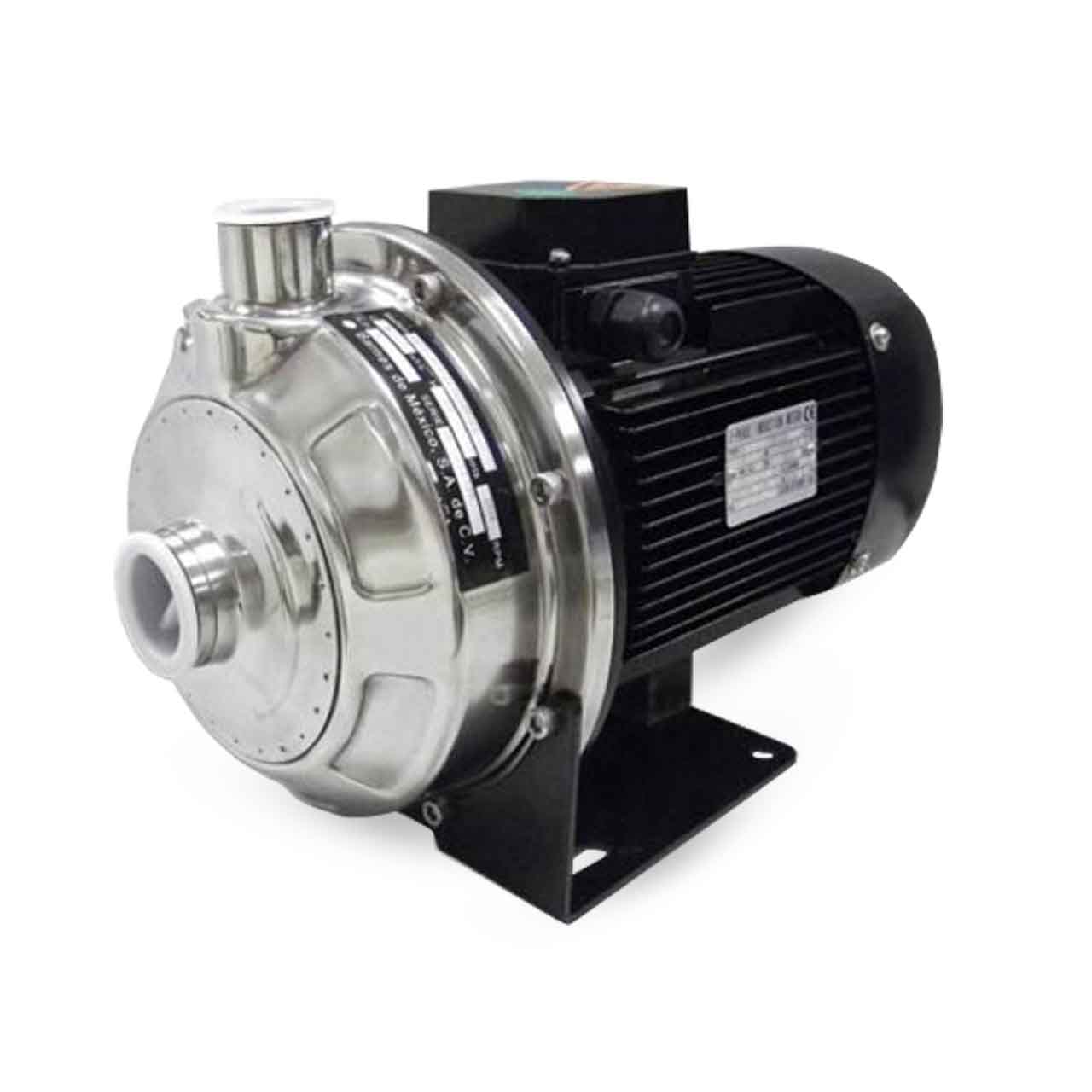

Barmesa CD70-2-2 End-Suction Centrifugal Stainless Steel Pump 2.0 HP 3PH
Barmesa CD70-2-2 End-Suction Centrifugal Stainless Steel Pump 2.0 HP 3PH
SKU : BMS70080053
In Stock Quantity:0
:
Brand
:
Regular price
$1,033.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa CD Series End-Suction Centrifugal Stainless Steel Pump
Barmesa CD Series End-Suction Centrifugal Stainless Steel Pump Applications include Booster Systems, Water Transfers, Chilled Water Systems and High Flow-Rate/Medium Pressure.
Barmesa CD Series End-Suction Centrifugal Stainless Steel Pump Features
- NEMA 56J, Totally Enclosed; 60 Hz, 3450 RPM (2 poles) Three Phase 230/460 Volts Motor. Requires Overload to be Included in Control Panel.
- 304 Series Stainless Steel Housing
- Mechanical Type 21, Lubricated by Water Seal
- Seal is Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
- Impeller is made of 304 Series Stainless Steel
- 1¼" NPT Horizontal Suction
- 1.0" NPT Horizontal Discharge
- Temperature Rating: 158°F (70°C)
Specifications
Specifications
Barmesa CD70-2-2 End-Suction Centrifugal Pump Stainless Steel Specifications
- DISCHARGE SIZE: 1.0" NPT Horizontal
- INLET SIZE: 1¼" NPT Horizontal
- MAXIMUM CAPACITY: 140 GPM
- MAXIMUM HEAD: 43'
- IMPELLER MATERIAL: 304 Stainless Steel / Closed
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 2.0 HP
- MOTOR TYPE: TEFC (Totally Enclosed Fan-Cooled)
- VOLTAGE: 3ø - 230/460V
- MAXIMUM LIQUID TEMPERATURE: 158°F (70°C)
Barmesa CD Series End-Suction Centrifugal Stainless Steel Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa CD Series End-Suction Centrifugal Stainless Steel Pump Product Resources
Download Barmesa CD Series End-Suction Centrifugal Stainless Steel Pump Catalog Sheet
Download Barmesa CD Series End-Suction Centrifugal Stainless Steel Pump Manual
