Barmesa BSP5CCE3-BF Self-Priming Close Coupled Pump 3.0 HP 230/460V 3PH

Barmesa BSP5CCE3-BF Self-Priming Close Coupled Pump 3.0 HP 230/460V 3PH

Usually ships within 2 days

SKU : BMS62030106

In Stock Quantity:0

:
Brand : Barmesa Pumps
$3,006.00 USD
Shipping calculated at checkout.

Description

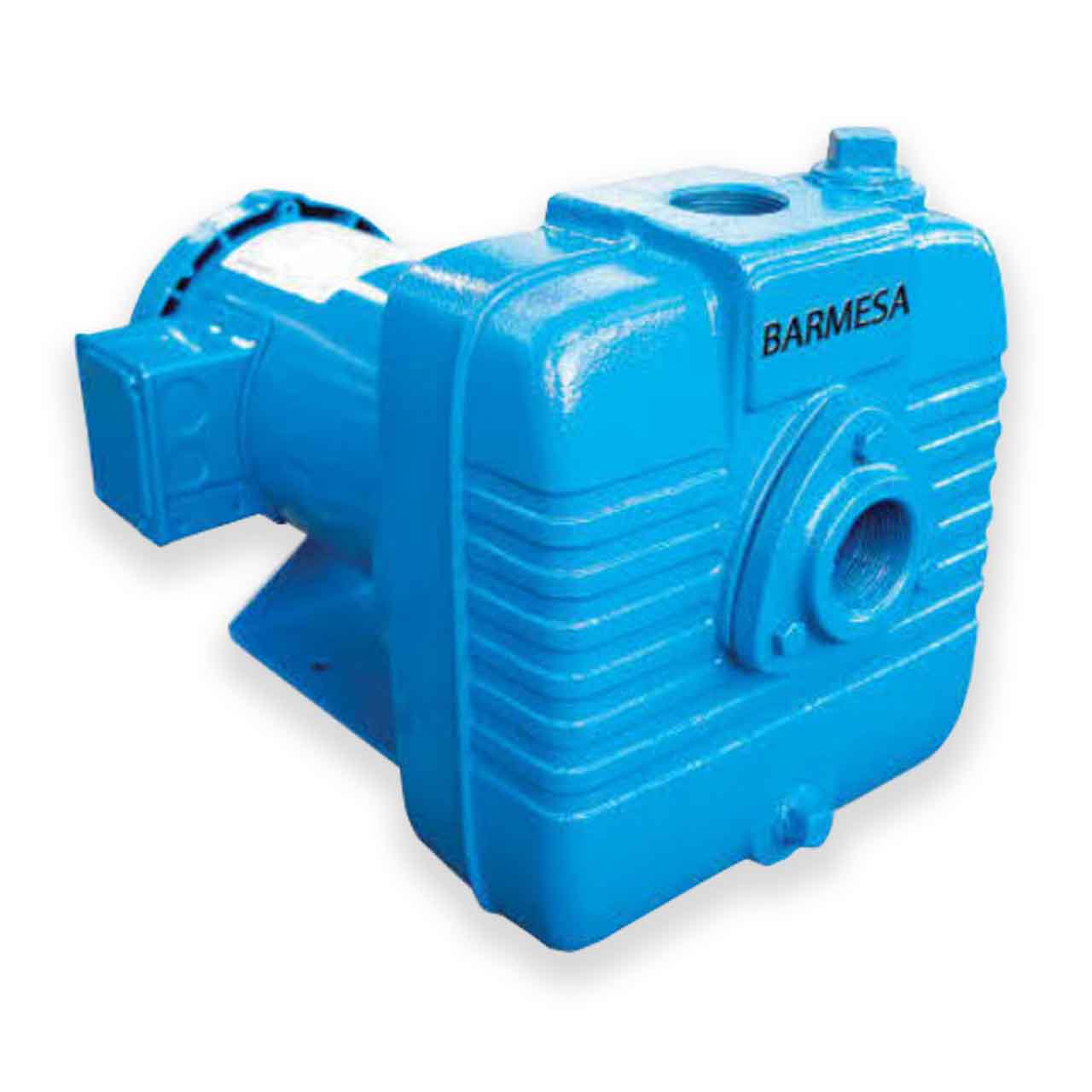

Barmesa BSP5CCE Series Self-Priming Close Coupled Pump

When dependability and performance matter, Barnes delivers. These rugged, high-efficient pumps are engineered for automatic priming, rapid deployment and impressive flow and pressure, even in the toughest environments. The BSPCCE Series packs performance into a small footprint, with a close-coupled design that makes setup fast and frustration-free. Whether you're installing in a tight spot or powering through a demanding job site, Barmesa pumps are the clear choice for reliability, speed and simplicity

Barmesa BSP5CCE Series Self-Priming Close Coupled Pump Applications

  • Fluid Transfer and Circulation
  • Pressure Boosting
  • Residential and Commercial Applications
  • Water Supply
  • Back Up Pump
  • Agriculture and Dewatering
  • Municipal, Industrial and Marine Applications

Barmesa BSP5CCE Series Self-Priming Close Coupled Pump Features

  • Totally Enclosed, Fan Cooled, C-Face, Footed, Squirrel Cage Induction, Class B or F Insulated Motor.
  • Three Phase is 208-230/460V, 60 Hz, 3450 RPM
  • Cast Iron ASTM A-48, Class 30 Motor Housing and Bronze Volute
  • Check Valve is Neoprene Flap Type With Steel Weight
  • Seal is a Mechanical, Self Lubricating, Ni-Resist Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
  • 1.5" NPT Discharge and Suction
  • Temperature Rating: 160°F (71°C)

Specifications

Barmesa BSP5CCE3-BF Self-Priming Close Coupled Pump Specifications

  • DISCHARGE SIZE: 1.5" NPT
  • INLET SIZE: 1.5" NPT
  • MAXIMUM SOLIDS HANDLING SIZE: 3/8" Spherical Solids
  • MAXIMUM CAPACITY: 130 GPM
  • MAXIMUM HEAD: 110'
  • IMPELLER MATERIAL: Open, Trash Type, Dynamically Balanced Bronze
  • BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30.
  • HORSEPOWER: 3.0 HP
  • MOTOR TYPE: ODP (Open Drip Proof)
  • VOLTAGE: 3ø, 230/460V, 60Hz
  • RPM: 3450 RPM
  • AMP DRAW (full load): 8.5/8.4
  • MAXIMUM LIQUID TEMPERATURE: 160°F (71°C)

Barmesa BSP5CCE Series Self-Priming Close Coupled Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa BSP5CCE Series Self-Priming Close Coupled Pump Product Resources


Download Barmesa BSP5CCE Series Self-Priming Close Coupled Pump Catalog Sheet

Download Barmesa BSP5CCE Series Self-Priming Close Coupled Pump Manual
