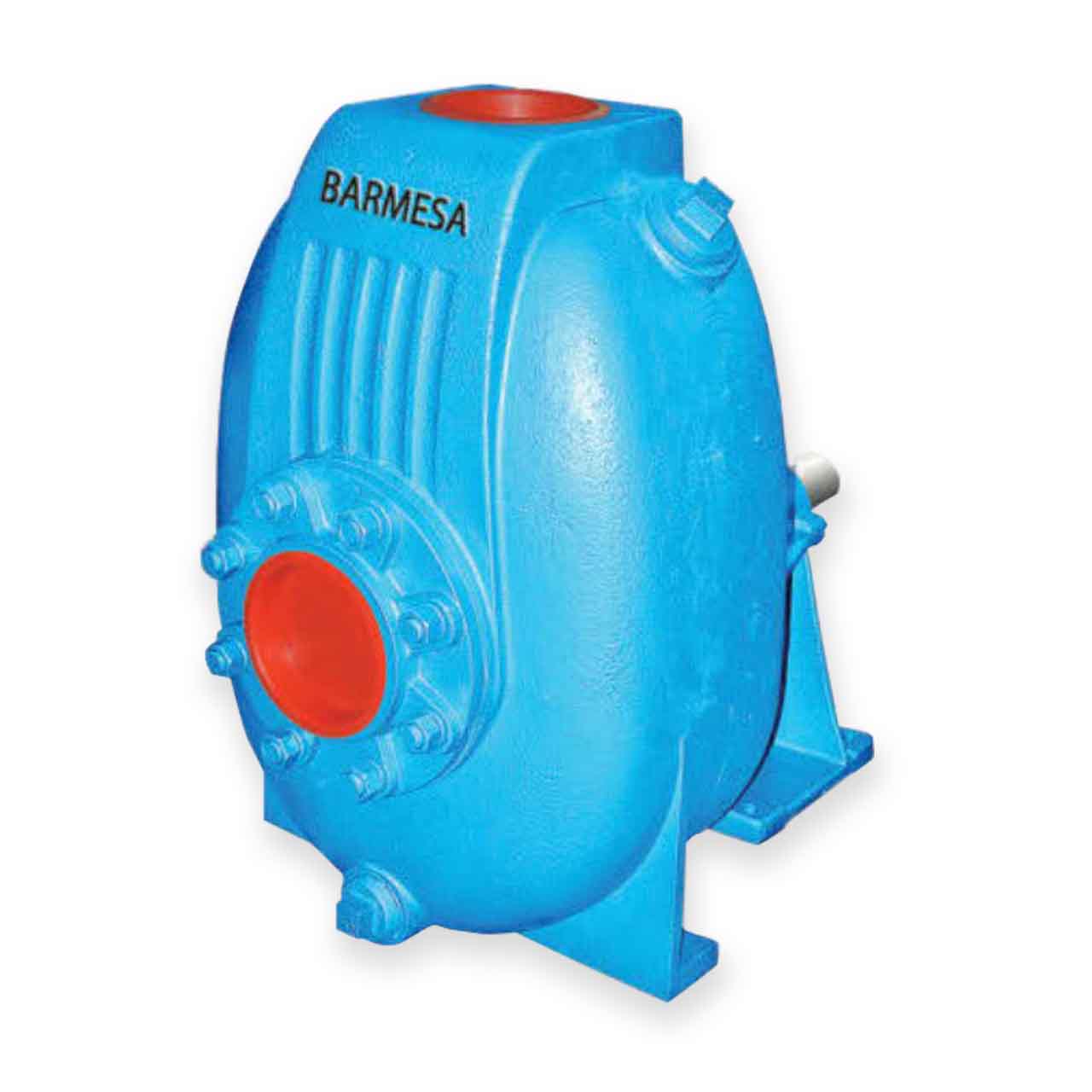

Barmesa BSP40MU Self-Priming Frame Mounted Pump 4.0" x 4.0"

Barmesa BSP40MU Self-Priming Frame Mounted Pump 4.0" x 4.0"

Usually ships within 2 days

SKU : BMS62040007

In Stock Quantity:0

:
Brand : Barmesa Pumps
$4,122.75 USD
Shipping calculated at checkout.

Description

Barmesa BSP40MU Self-Priming Frame Mounted Pump

Frame Mounted Self-Priming Pump are designed for a separate power source that is suitable for driving through couplings or belts.

Barmesa BSP40MU Self-Priming Frame Mounted Pump Features

  • Cast Iron ASTM A-48, Class 30 Housing and Volute.
  • Impeller is Cast Iron ASTM A-48, Class 30
  • Check Valve is Neoprene Flap Type With Steel Weight
  • Steel Hardware
  • Single Seal is Mechanical with Lip Seal, Water Lubricated, Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
  • 4" NPT Female Discharge and 4" NPT Female Suction
  • Temperature Rating: 160°F (71°C) Continuous

Specifications

Barmesa BSP40MU Pump Specifications

  • DISCHARGE SIZE: 4.0" NPT, Female
  • INLET SIZE: 4.0" NPT, Female Flange
  • MAXIMUM CAPACITY: 793 GPM @ 2200 RPM
  • MAXIMUM HEAD: 158' @ 2200 RPM
  • IMPELLER MATERIAL: 4 vanes, Semi-Open Type, Dynamically Balanced Cast Iron
  • MAXIMUM SOLIDS HANDLING SIZE: 1-1/4"
  • BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30.
  • MAXIMUM LIQUID TEMPERATURE: 160°F (71°C)
  • SELF PRIMING: YES

Barmesa BSP40MU Self-Priming Frame Mounted Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa BSP40MU Self-Priming Frame Mounted Pump Product Resources


Download Barmesa BSP40MU Catalog Sheet

Download Barmesa BSP40MU Manual
