Barmesa BSP25ICU Self-Priming Frame Mounted Pump 3.0" x 3.0"
Barmesa BSP25ICU Self-Priming Frame Mounted Pump 3.0" x 3.0"
SKU : BMS62040106
In Stock Quantity:0
:
Brand
:
Regular price
$2,682.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

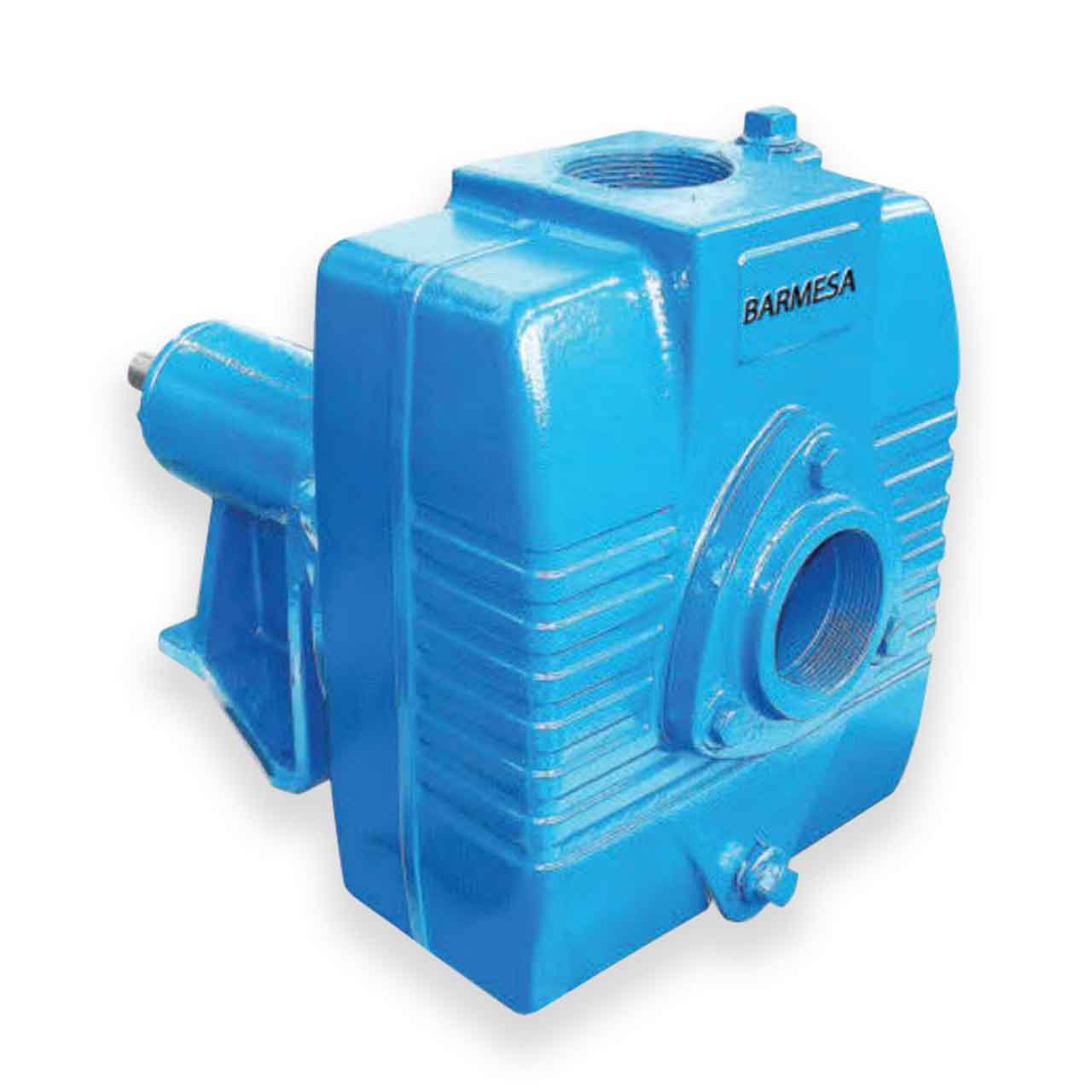

Barmesa BSP25ICU Self-Priming Frame Mounted Pump
Frame Mounted Self-Priming Pump are designed for a separate power source that is suitable for driving through couplings or belts.
Barmesa BSP25ICU Self-Priming Frame Mounted Pump Features
- Cast Iron ASTM A-48, Class 30 Housing and Volute.
- Impeller is Cast Iron ASTM A-48, Class 30
- Check Valve is Neoprene Flap Type With Steel Weight
- Steel and Stainless Steel Hardware
- Single Seal is Mechanical with Lip Seal, Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
- 3" NPT Female Discharge and 3" NPT Female Suction
- Suction & Discharge Bearing Frame Mounted
- Temperature Rating: 160°F (71°C) Continuous
Specifications
Specifications
Barmesa BSP25ICU Pump Specifications
- DISCHARGE SIZE: 3.0" NPT
- INLET SIZE: 3.0" NPT
- MAXIMUM CAPACITY: 440 GPM @ 3500 RPM
- MAXIMUM HEAD: 182' @ 3500 RPM
- IMPELLER MATERIAL: Open, Trash Type, Dynamically Balanced Cast Iron
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30.
- MAXIMUM LIQUID TEMPERATURE: 160°F (71°C)
- SELF PRIMING: YES
Barmesa BSP25ICU Self-Priming Frame Mounted Pump Performance Curve
