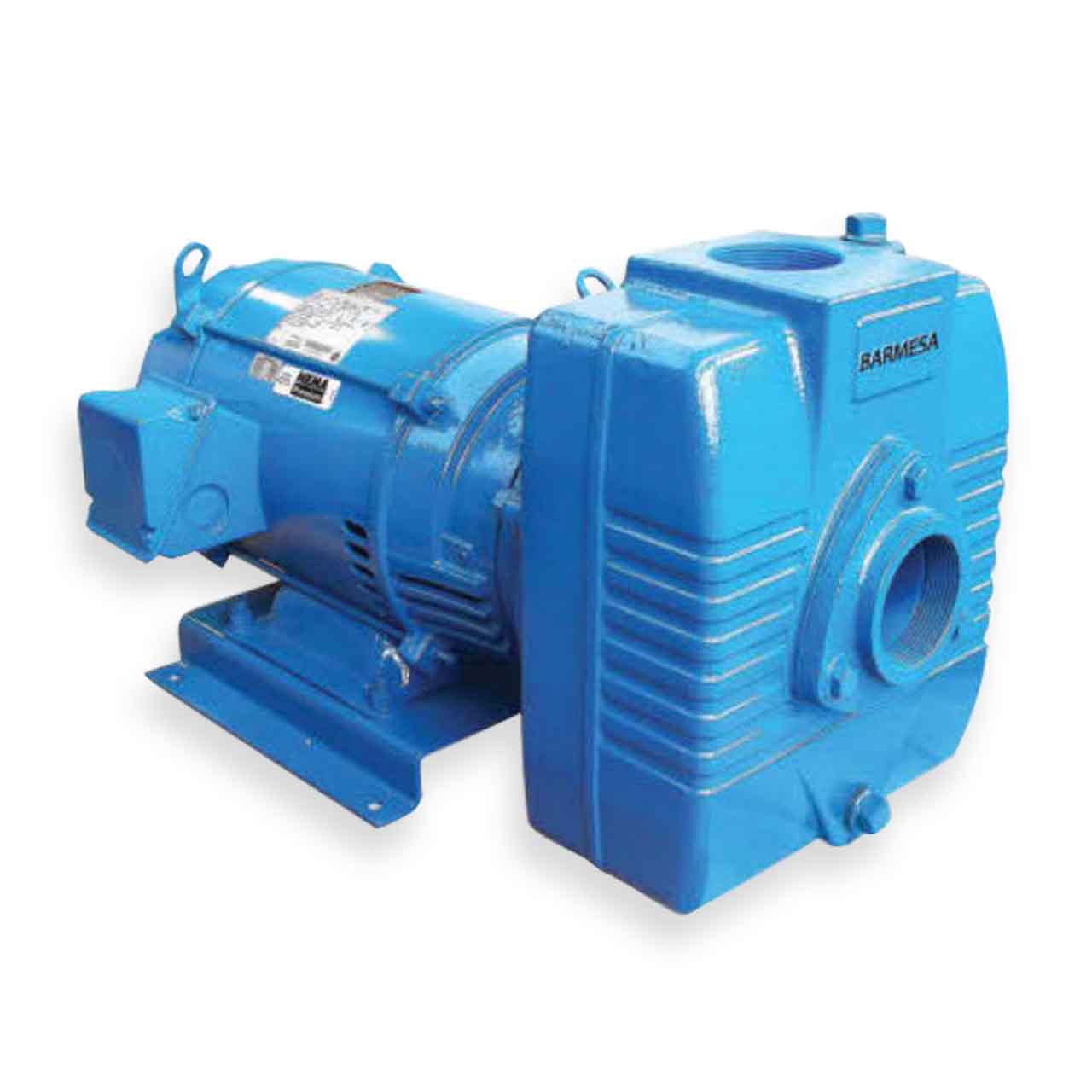

Barmesa BSP20CCE3-T Self-Priming Close Coupled Pump 10 HP 230/460V 3PH
Barmesa BSP20CCE3-T Self-Priming Close Coupled Pump 10 HP 230/460V 3PH
SKU : BMS62030030
In Stock Quantity:0
:
Brand
:
Regular price
$5,001.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa BSP20CCE Series Self-Priming Close Coupled Pump
Self-Priming Close Coupled Pumps are Electric Motor Driven Centrifugal Pumps and come in 1½, 2 , 3, 5, 7½, 10 and 15 HP. Used for High Liquid Transfer, Irrigation and Dewatering.
Barmesa BSP20CCE Series Self-Priming Close Coupled Pump Features
- Totaly Enclosed, Fan Cooled, C-Face, Footed, Squirrel Cage Induction, Class B or F Insulated Motor.
- Three Phase is 208-230/460V, 60 Hz, 3450 RPM
- Cast Iron ASTM A-48, Class 30 Motor Housing and Volute
- Check Valve is Neoprene Flap Type With Steel Weight
- Seal is a Mechanical, Self Lubricating, Ni-Resist Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
- 3" NPT Discharge and Suction
- Temperature Rating: 160°F (40°C)
Specifications
Specifications
Barmesa BSP20CCE3-T Pump Specifications
- DISCHARGE SIZE: 3.0" NPT
- INLET SIZE: 3.0" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4" Spherical Solids
- MAXIMUM CAPACITY: 400 GPM
- MAXIMUM HEAD: 138'
- IMPELLER MATERIAL: Open, Trash Type, Dynamically Balanced Cast Iron
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30.
- HORSEPOWER: 10 HP
- MOTOR TYPE: TEFC (Totally Enclosed, Fan Cooled)
- VOLTAGE: 3ø, 230/460V, 60Hz
- RPM: 3450 RPM
- AMP DRAW (full load): 25-23/11.5
- MAXIMUM LIQUID TEMPERATURE: 160°F (71°C)
Barmesa BSP20CCE Series Self-Priming Close Coupled Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BSP20CCE Series Self-Priming Close Coupled Pump Product Resources
