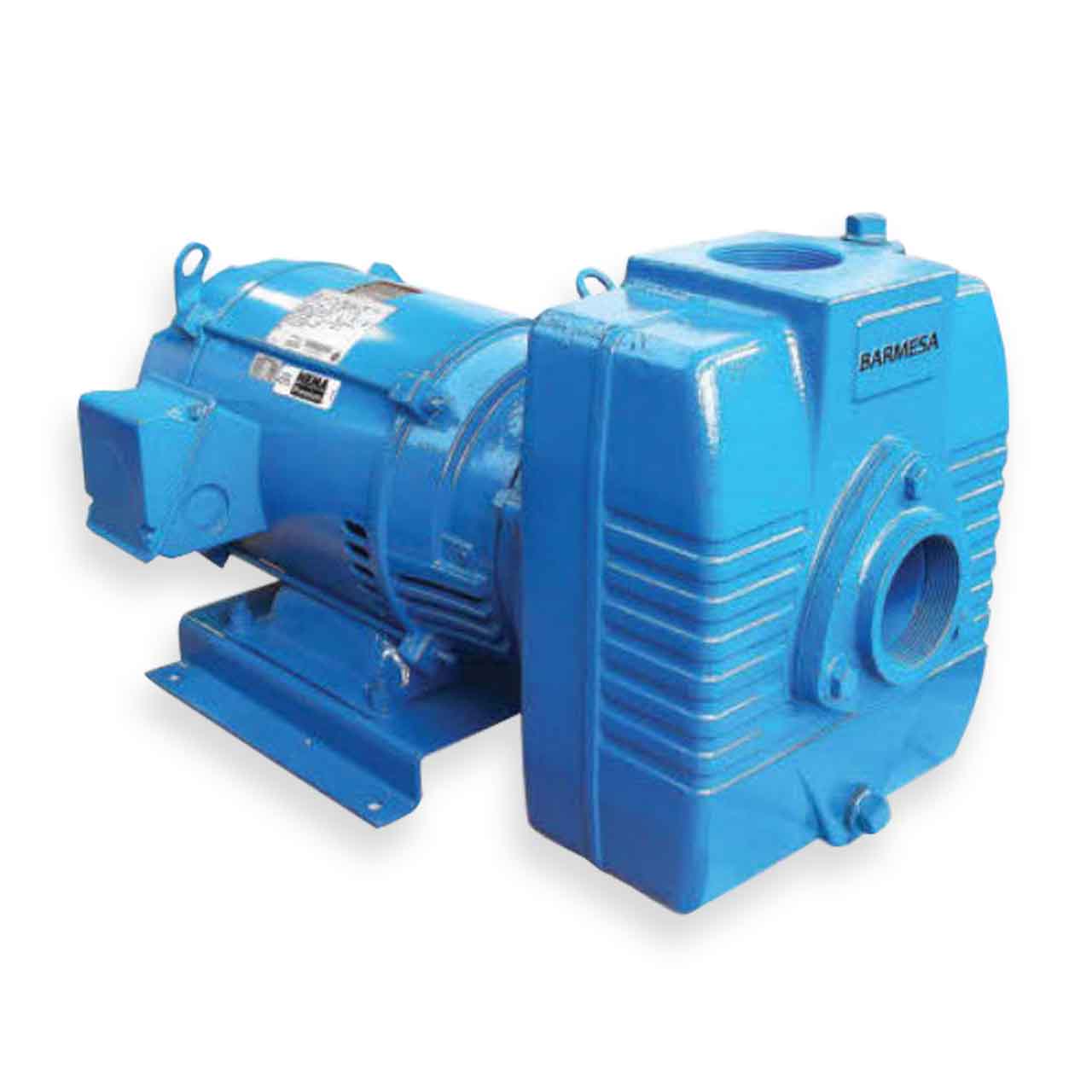

Barmesa BSP10CCE1-BF Self-Priming Close Coupled Pump 5.0 HP 200/230V 1PH
Barmesa BSP10CCE1-BF Self-Priming Close Coupled Pump 5.0 HP 200/230V 1PH
SKU : BMSBSP10CCE1BF
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued SEE SIMILIAR BSP10CCE PUMPS
Barmesa BSP10CCE Series Self-Priming Close Coupled Pump
Self-Priming Close Coupled Pumps are Electric Motor Driven Centrifugal Pumps and come in 1½, 2 , 3, 5, 7½, 10 and 15 HP. Used for High Liquid Transfer, Irrigation and Dewatering.
Barmesa BSP10CCE Series Self-Priming Close Coupled Pump Features and Benefits
- Open Drip Proof , C-Face, Footed, Squirrel Cage Induction, Class B or F Insulated Motor.
- Single Phase is 208-230V, 60 Hz, 3450 RPM
- Cast Iron ASTM A-48, Class 30 Motor Housing and Bronze Volute
- Check Valve is Neoprene Flap Type With Steel Weight
- Seal is a Mechanical, Self Lubricating, Ni-Resist Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
- 2" NPT Discharge and Suction
- Temperature Rating: 160°F (40°C)
Specifications
Specifications
Barmesa BSP10CCE1-BF Series Self-Priming Close Coupled Pump Specifications
- HORSEPOWER: 5.0 HP
- VOLTAGE: 200/230 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- MAX AMPS: 24-23
- DISCHARGE PIPE SIZE: 2" NPT Discharge
- SUCTION SIZE: 2"
- SOLIDS HANDLING: 1/2" Spherical Solids
- MAX HEAD: 126'
- MAX FLOW RATE: 195 GPM
- IMPELLER TYPE: Open, Trash Type, Dynamically Balanced Bronze
Barmesa BSP10CCE Series Self-Priming Close Coupled Pump Performance Curve
