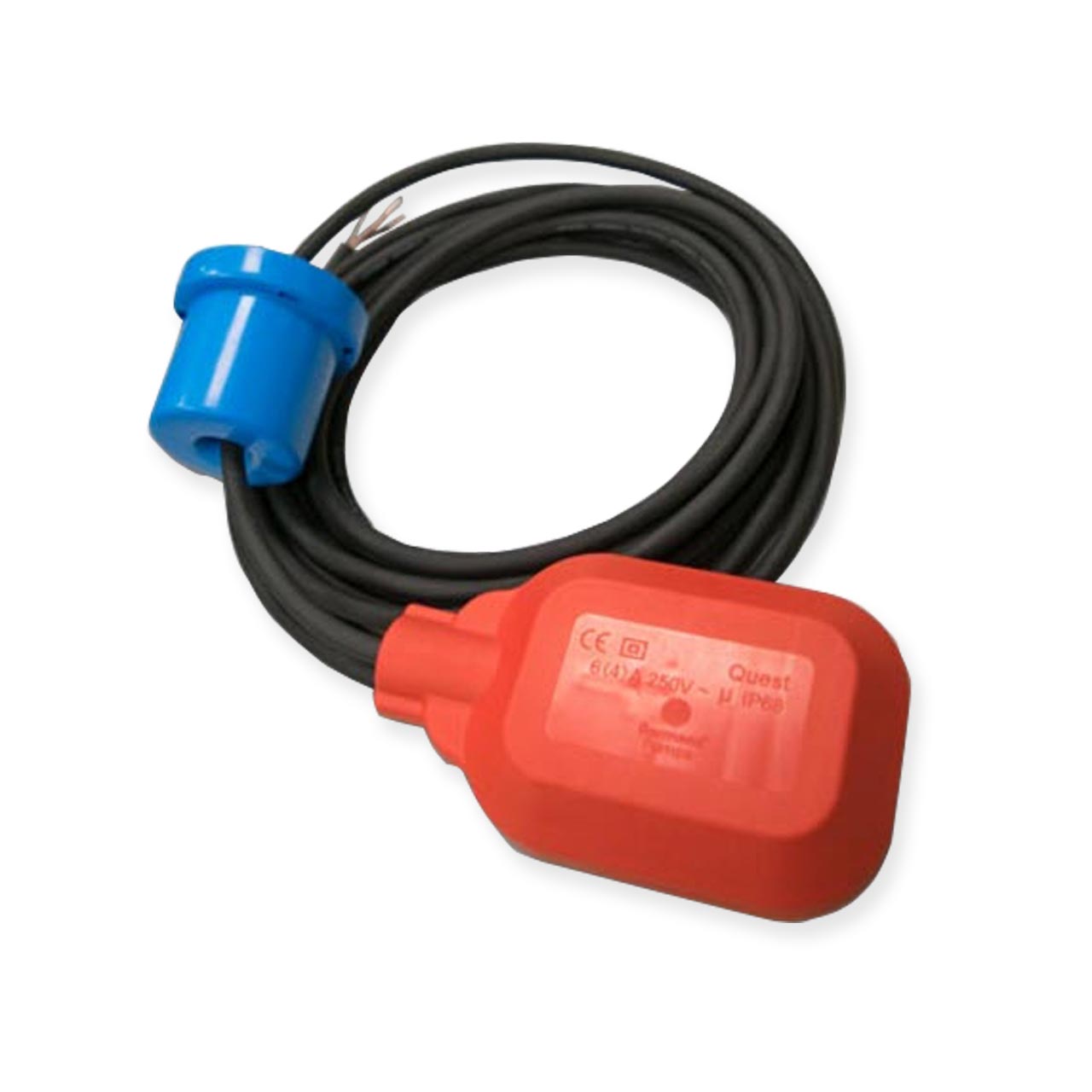

Barmesa BP-SJT Pump Level Control

The Barmesa BP-SJT Pump Level Control is a Mechanically-Activated, Wide Angle Pump Level Control Designed for Performance and Dependability, Provides Automatic Control of Pumps in Non-Potable Water Applications. The Barmesa BPSJT Pump Level Control Switch Must be Used with Pumps that Provide Integral Thermal Overload Protection.

Barmesa BP-SJT Pump Level Control Features

• Mechanically-Activated, Snap Action Contacts.
• Non-Toxic, Corrosion Resistant, Polypropylene Float Housing.
• Adjustable Pumping Range of 9 to 36 in (23 to 91 cm).
• Includes an Innovative One-Piece Cable Weight for Mounting; No Clip to Lose.
• Standard H05RN-F Rubber Cable Lengths of 6 Meters (20 Feet).
• CE Certified, TUV Certified.

OPTIONS
• In 3-Wire SPDT Version, Normally Open for Pump Down and Normally Closed for Pump Up (Function, Class II).

Barmesa BP-SJT Pump Level Control Specifications

• CABLE: H05 VV 0.75 mm² 3 Conductor.
• FLOAT: 7.7 x 13 x 4 cm (3 x 5 x 1.6 in) Non-Toxic, Corrosion Resistant, Polypropylene Housing for use up to 55 °C (131 °F).
• ELECTRICAL: 16 (4) Amp, 250 VAC, 50 Hz/ 60 Hz, Micro Disconnect, Function Class II
• NOTE: This Switch is not Recommended for Controlling:
• Electric Loads Less than 100 Milliamps, 12 VAC.
• Non-Arcing Electric Loads.

Switch Must Be Used with Pumps that Provide Integral Thermal Overload Protection.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barmesa BP-SJT Pump Level Control Product Resources

Barmesa BP-SJT Pump Level Control Datasheet
