Barmesa BPEV512 Submersible Effluent Pump 0.5 HP 115V 1PH 30' Cord Manual
Barmesa BPEV512 Submersible Effluent Pump 0.5 HP 115V 1PH 30' Cord Manual
SKU : BMSBPEV512
In Stock Quantity:-2
:
Brand
:
Regular price
$685.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

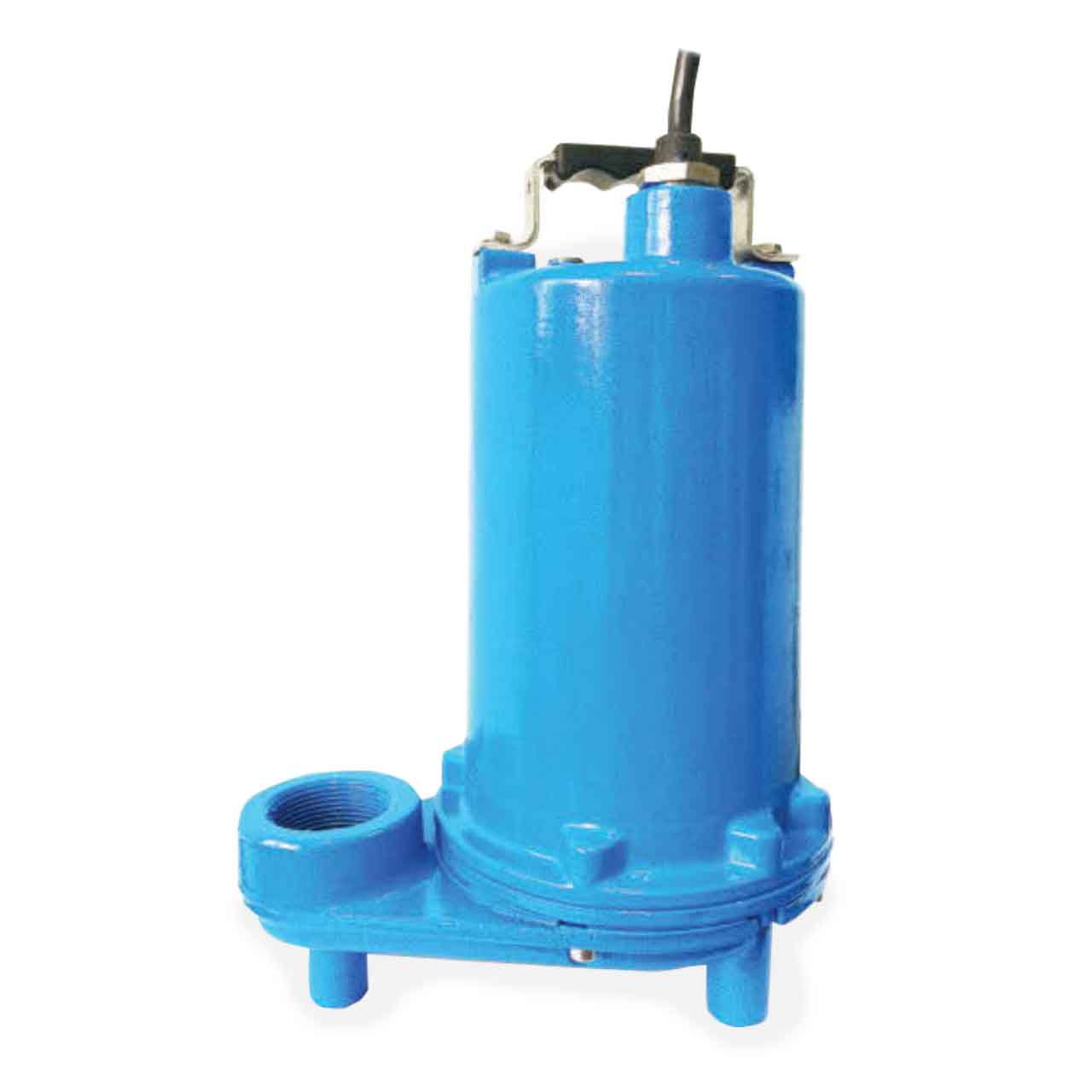

Barmesa BPEV512 Series Submersible Effluent Pump
Efficiently transferring wastewater from septic tanks to drainage fields or disposal areas, these pumps are adept at handling solids, making them suitable for various residential, commercial, and industrial applications. They play a crucial role in sewage systems, agricultural practices, construction sites and wastewater treatment facilities, ensuring proper disposal and environmental protection.
Barmesa BPEV512 Series Submersible Effluent Pump Features
- NEMA L, Single Phase, Permanent Split Capacitor, Oil Filled, with Overload Protection in Motor.
- Cast Iron Motor Housing
- Upper Ball Bearings are Single Row, Oil Lubricated for Radial Load. Lower Ball Bearings are Single Row, Oil Lubricated for Radial Load.
- Single Mechanical Seal
- Seal is Carbon/Ceramic/Buna-N with Stainless Steel Hardware
- Impeller is made of Cast Iron ASTM A-48 Class 30, Dynamically Balanced
- 2" NPT Vertical Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa BPEV512 Submersible Effluent Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 8
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3500
- MAXIMUM HEAD: 49'
- MAXIMUM CAPACITY: 60 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solids
- IMPELLER TYPE: Cast Iron, Vortex
- IMPELLER DIAMETER: 3.35" Standard
- CORD LENGTH: 30'
- CORD SIZE: 16/3; Type: SJTOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa BPEV512 Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BPEV512 Series Submersible Effluent Pump Product Resources
Download Barmesa BPEV512 Series Submersible Effluent Pump Catalog Sheet
Download Barmesa BPEV512 Series Submersible Effluent Pump Manual
