Barmesa BP50 Submersible Sump / Utility Pump 0.5 HP 115V 1PH 20' Cord Manual
Barmesa BP50 Submersible Sump / Utility Pump 0.5 HP 115V 1PH 20' Cord Manual
SKU : BMSBP50
In Stock Quantity:0
:
Brand
:
Regular price
$472.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

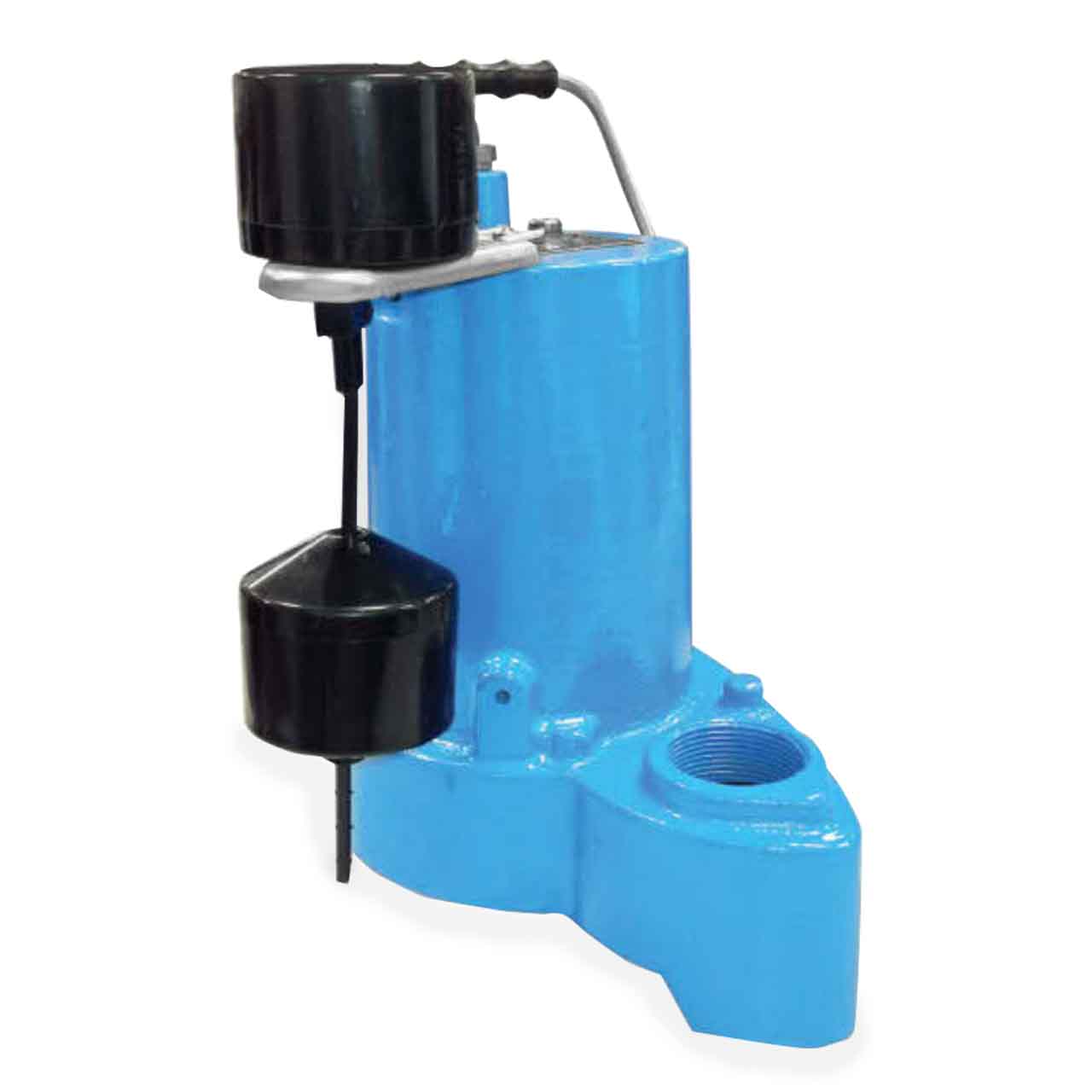

Barmesa BP50 Series Submersible Sump / Utility Pump
Designed to efficiently remove water from enclosed spaces like sump pits, basements, and utility areas, these pumps prevent flooding and water damage by swiftly pumping out accumulated water. Widely used in residential, commercial and industrial settings, they aid in maintaining dry and safe environments while facilitating drainage in diverse situations.
Barmesa BP50 Series Submersible Sump / Utility Pump Features
- NEMA L, Single Phase, Permanent Split Capacitor, Oil Filled, with Overload Protection in Motor.
- Cast Iron Motor Housing
- Upper Ball Bearings are Single Row, Oil Lubricated for Radial Load. Lower Ball Bearings are Single Row, Oil Lubricated for Radial and Thrust Load.
- Single Mechanical Seal
- Seal is Carbon/Ceramic/Buna-N with Stainless Steel Hardware
- Impeller is made of Cast Iron ASTM A-48 Class 30, Dynamically Balanced
- 1.5" NPT Vertical Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa BP50 Submersible Sump / Utility Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 8
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3500
- MAXIMUM HEAD: 30'
- MAXIMUM CAPACITY: 70 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1.5" NPT
- MAXIMUM SOLIDS HANDLING: 1/2" Spherical Solids
- IMPELLER TYPE: Cast Iron, 10 Vane Vortex w/ Vanes on Back Side, Balanced
- CORD LENGTH: 20'
- CORD SIZE: 18/3; Type: SJTOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa BP50 Series Submersible Sump / Utility Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BP50 Series Submersible Sump / Utility Pump Product Resources
Download Barmesa BP50 Series Submersible Sump / Utility Pump Catalog Sheet
Download Barmesa BP50 Series Submersible Sump / Utility Pump Manual
