Barmesa BP43D4XNM040 Duplex Control Panel 460V 3PH
Barmesa BP43D4XNM040 Duplex Control Panel 460V 3PH
SKU : BMSBP43D4XNM040
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

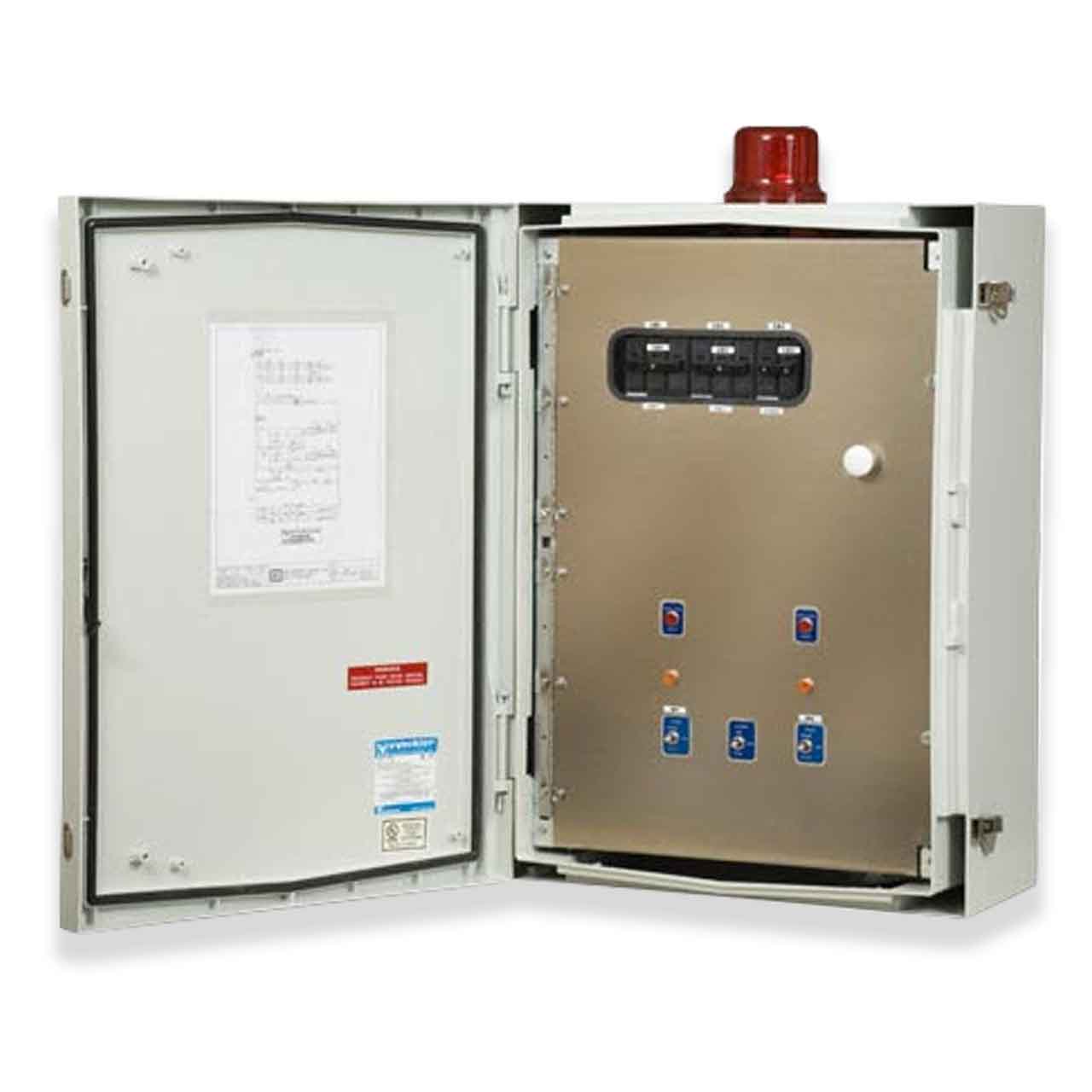

Barmesa BP43D4XNM040 Duplex Control Panel
The Barmesa Duplex Control Panels can be used with Sewage, Effluent and Non-Clog Pumps. These Control Panels come in Three Phase and 460 Volt Only. Consult Factory for Other Available Options. Some Options may Require an Increase in the Enclosure Size.
Specifications
Specifications
Barmesa BP43D4XNM040 Duplex Control Panel Specifications
- ENCLOSURE: Type 4X Polycarbon
- MANUAL MOTOR PROTECTOR: With Class 10 Overload
- MOTOR CONTACTOR: IEC Rated
- HOA SWITCH: Three Position Toggle HP Rated
- ALARM SWITCH: Three Positon Toggle HP Rated
- RUN LIGHT: Amber Neon Pilot Light
- TRANSFORMER: With Fuse Protection
- ALTERNATING RELAY: With Lead Selector Switch
- MOISTURE SENSOR: Seal Fail Circuit Light, Requires Sensor to be in Pump
- TEMP SENSOR: Heat Sensor Connections, Requires Sensor to be in Pump
- SUB DOOR: Bright Aluminum
- FUSE: Control and Alarm Sized at 3 Amps
- TERMINAL STRIP: Box Type Lugs Sectional
- WIRING: Color Coded
- VISIBLE ALARM: 360 Degree Flashing
- AUDIBLE ALARM: Piezo Buzzer
- LEVEL CONTROL: Requires 4 Floats Rated at 2 Amps
- AMP RATING: 32-40 Amps
- CERTIFICATIONS: UL 508A
- NOTE: Overloads Must be Located in Pump
