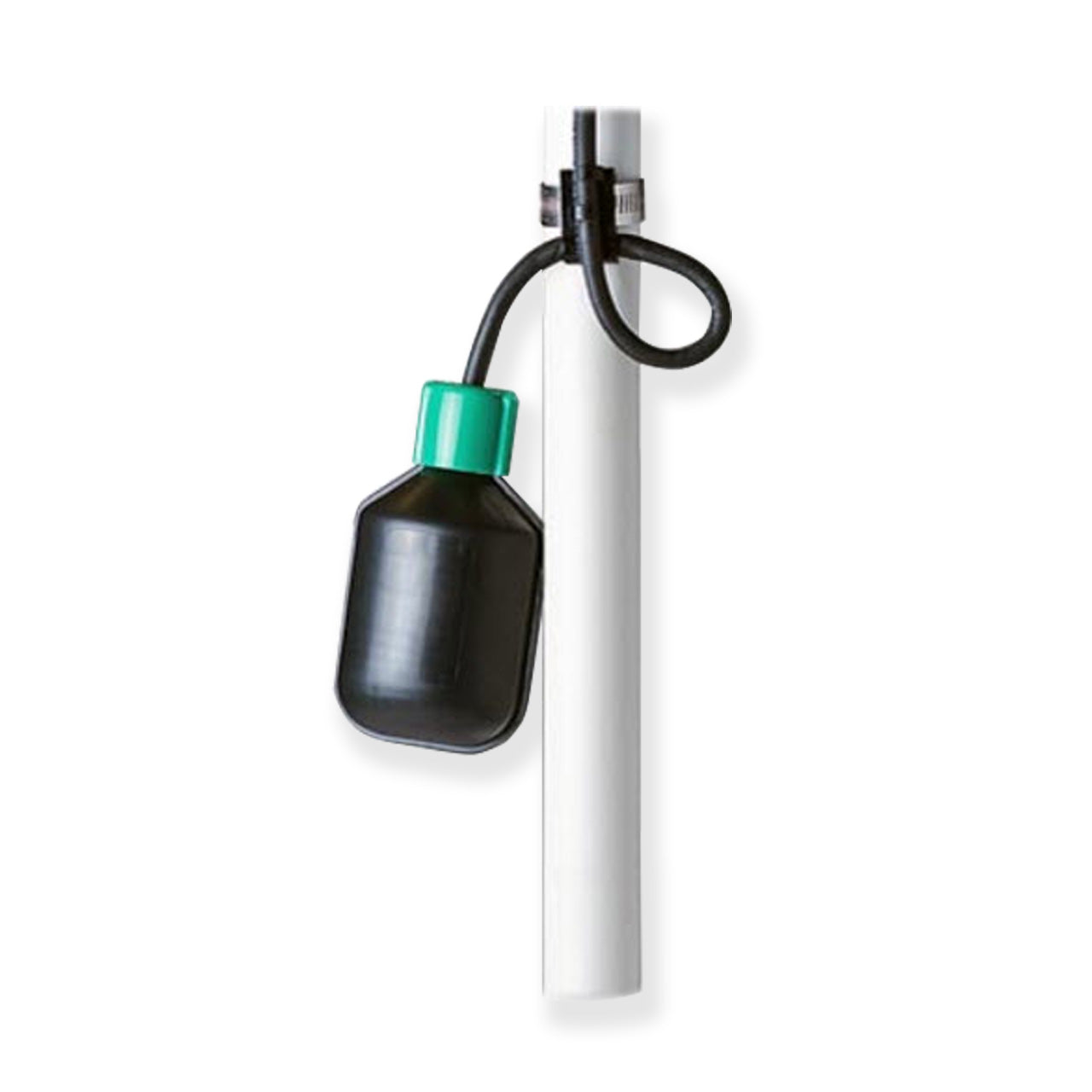

Barmesa BP-SGMSPDT Series Narrow Angle Pump Level Control

The Barmesa BP-SGMSPDT Series Narrow Angle Pump Level Control is Used to Accurately Monitor High (Normally Open) or Low (Normally Closed) Liquid Levels to Activate Pump Control Panels and Alarms in Water and Sewage Applications. It Features a Green Colored Cap for Easy Identification of SPDT Control Switch. This Switch can be Wired to Work in Either Normally Open or Normally Closed Applications.

Barmesa BP-SGMSPDT Series Narrow Angle Pump Level Control Features

• Can be Wired to Work in Either Pump Down (Normally Open) or Pump Up (Normally Closed) Applications (Single Pole, Double Throw)
• Mechanically-Activated, Snap Action Contacts.
• High Impact, Corrosion Resistant, Polypropylene Float Housing
• Not Sensitive to Turbulence.
• Control Differential of 1.5 inches (4 cm) Above or Below Horizontal.
• Green Colored Cap for Easy Identification of SPDT Control Switch.
• Includes Standard Mounting Clamp and Boxed Packaging
• 20' Control Switch with Weight
• UL & CSA Certified.

OPTIONS
• In Standard Cable Lengths of 15, 25 or 50 Feet (5, 8 or 15 meters).
• Two Mounting Options for Flexibility in Installation: Mounting Clamp: for Applications Where the Float can be Attached to a Discharge Pipe or Similar Mounting Device and Externally Weighted, for Applications Where the Float can be Suspended From Above.

Barmesa BP-SGMSPDT Series Narrow Angle Pump Level Control Specifications

• CABLE: Flexible 18 Gauge, 3 Conductor, SJOW, Water-Resistant CPE.
• FLOAT: 2.74" Diameter x 4.83" Long (7.0 x 12.3 cm) High Impact, Corrosion Resistant, Polypropylene Housing for use in Sewage and Water up to 140 °F (60 °C).
• MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90 kPa).
• ELECTRICAL: 5 Amp, 125/250 VAC, 60 Hz
• NOTE: This Switch is not Recommended for Controlling: Electric Loads Less Than 100 Milliamps, 12 VAC and Non-Arcing Electric Loads.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barmesa BP-SGMSPDT Series Narrow Angle Pump Level Control Product Resources

Barmesa BP-SGMSPDT Series Narrow Angle Pump Level Control Datasheet
