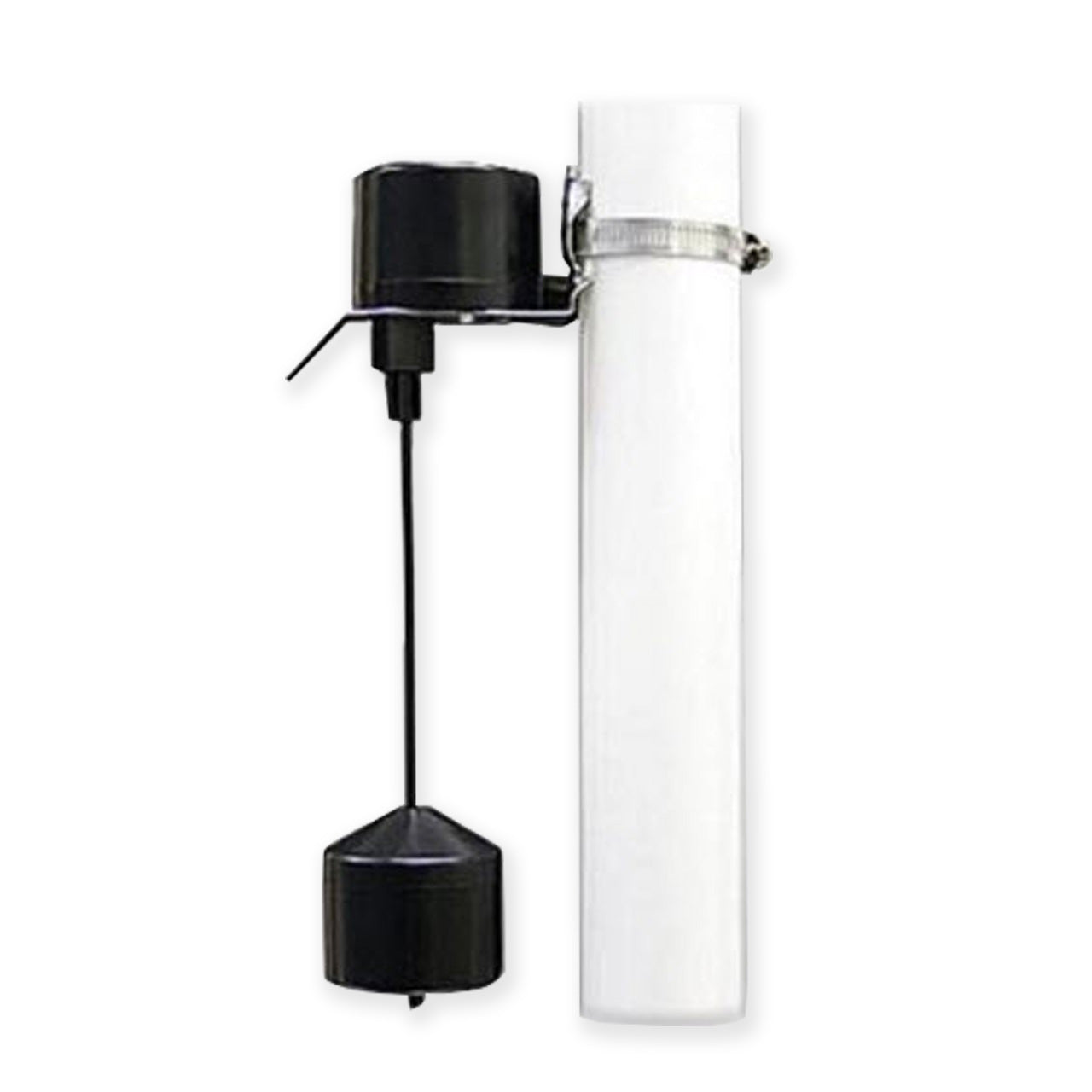

Barmesa BP-VM Vertical Pump Level Control

The Barmesa BP-VM Vertical Pump Level Control Pump Switch is Designed to Directly Control Pumps up to 1/2 HP at 120 VAC in Non-Potable Water and Sewage Applications with Limited Space. It Works Well in Small Sump Chambers, Effluent Applications, and Laundry Trays, as well as in Large Tanks. The Switch is not Sensitive to Turbulence and is Available for Pump Down Applications Only.

Barmesa BP-VM Vertical Pump Level Control Features

• Heavy-Duty Contacts
• Controls Pumps up to 1/2 HP at 120 VAC
• Includes Standard Mounting Clamp and Boxed Packaging.
• UL CSA Certified.

OPTIONS
• With a 120 VAC Piggy-Back Plug.
• Without a Plug for Direct Wiring in 120 VAC Applications.
• In Standard Cable Lengths of 10, 15, 20, or 30 Feet (3, 5, 6 or 10 Meters).

Barmesa BP-VM Vertical Pump Level Control Specifications

• CABLE: Flexible 16 Gauge, 2 Conductor, SJOW or SJTOW, Water-Resistant CPE.
• MOUNTING BRACKET & HOSE CLAMP: Stainless Steel
• LIFT ROD: Injection Molded Acetal Plastic.
• FLOAT STOP: Neoprene.
• SWITCH & FLOAT HOUSING: High Impact, Corrosion Resistant, PVC Housing for use in Sewage and Nonpotable Water up to 125 °F (52 °C)
• OVERALL DIMENSIONS: 12" High x 5" x 3" Wide (30.5 cm High x 12.7 cm x 7.6 cm Wide) (Pipe Mounted Dimensions Only).
• NOTE: This Switch Must be Used with Pumps that Provide Integral Thermal Overload Protection.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barmesa BP-VM Vertical Pump Level Control Product Resources

Barmesa BP-VM Vertical Pump Level Control Datasheet
