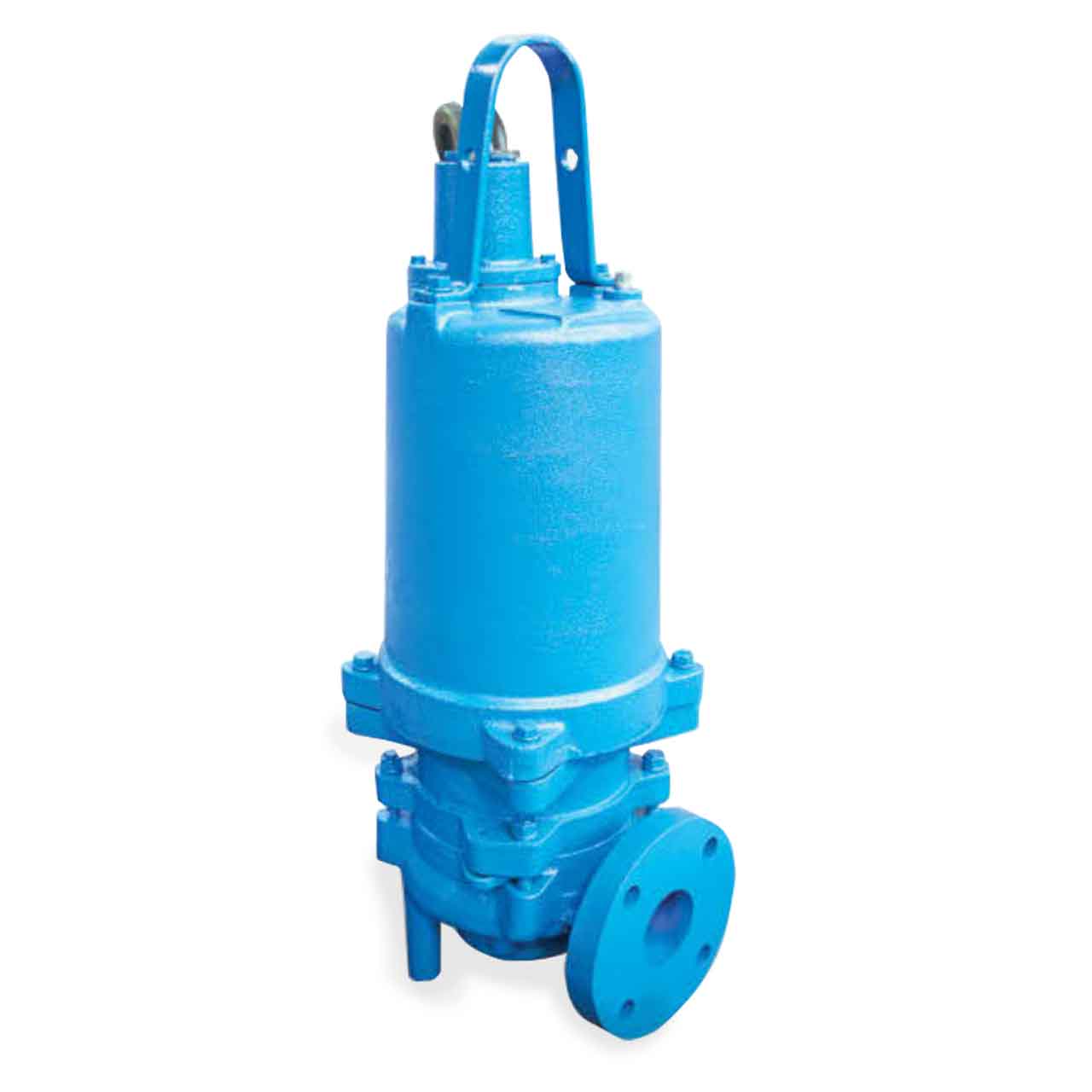

Barmesa BGPH-DS Series Submersible Grinder Pump
A Submersible Grinder Pump that is designed to meet the demands of wastewater and sewage applications. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa BGPH-DS Series Submersible Grinder Pump Features
- Single Phase, NEMA L, Capacitor Start/Run (to located in control panel, Oil Filled, Class F Insulation.
- Cast Iron ASTM A-48, class 30 Motor Housing
- Ball Bearings, Single Row, Oil Lubricated.
- Double, Mechanical, Oil Lubricated Seal
- Seal is Silicon Carbide Outboard, Carbon Ceramic Inboard, Buna-N Elastomer and Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 2.5" Flange Horizontal Discharge
- Temperature Rating: 104° F (40° C)
Specifications
Specifications
Barmesa BGPH502DS Submersible Grinder Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 5.0 HP
- AMP DRAW (full load): 39
- MOTOR TYPE: NEMA L, Oil Filled
- RPM: 3500
- MAXIMUM HEAD: 150'
- MAXIMUM CAPACITY: 96 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.5" Flange, Horizontal, 150lbs std ANSI
- IMPELLER TYPE: Cast Iron, 10 Vanes, Vortex w/ Vanes on Back Side, Dynamically Balanced
- IMPELLER DIAMETER: 6.25” Standard
- CORD LENGTH: 40'
- CORD SIZE: 8/4C Type: SO
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- CONTROL PANEL REQUIRED
Barmesa BGPH-DS Series Submersible Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BGPH-DS Series Submersible Grinder Pump Product Resources
Download Barmesa BGPH-DS Series Submersible Grinder Pump Catalog Sheet
Download Barmesa BGPH-DS Series Submersible Grinder Pump Manual
