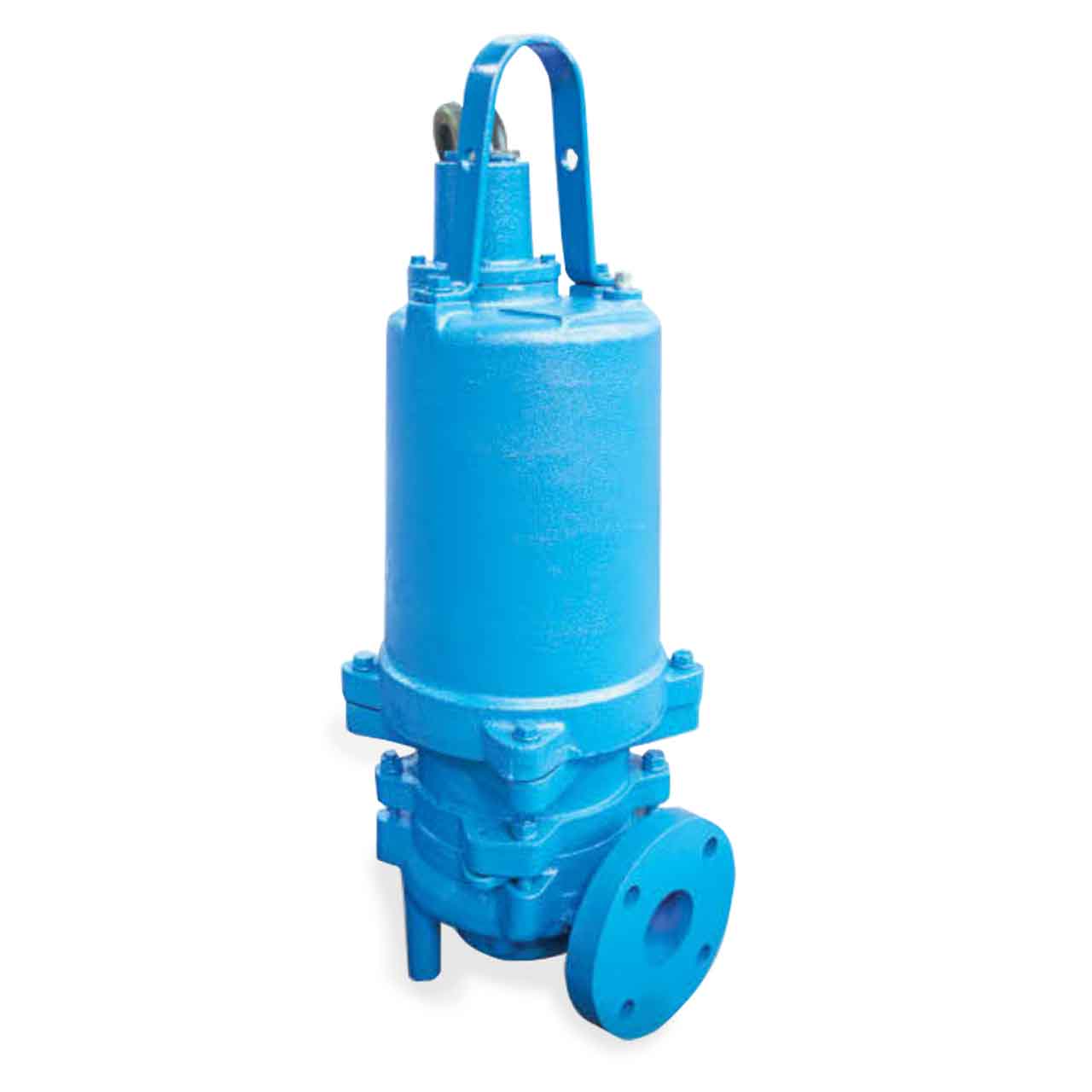

Barmesa BGPH304DS Submersible Grinder Pump 3.0 HP 460V 3PH 40' Cord Manual
Barmesa BGPH304DS Submersible Grinder Pump 3.0 HP 460V 3PH 40' Cord Manual
SKU : BMS62170623
In Stock Quantity:0
:
Brand
:
Regular price
$5,485.60 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa BGPH-DS Series Submersible Grinder Pump
A Submersible Grinder Pump that is designed to meet the demands of wastewater and sewage applications. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa BGPH-DS Series Submersible Grinder Pump Features
- Three Phase, NEMA B, Oil Filled, Class F Insulation
- Requires Overload Protection to be Included in Control Panel.
- Cast Iron ASTM A-48, class 30 Motor Housing
- Ball Bearings, Single Row, Oil Lubricated.
- Double, Mechanical, Oil Lubricated Seal
- Seal is Silicon Carbide Outboard, Carbon Ceramic Inboard, Buna-N Elastomer and Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 2.5" Flange Horizontal Discharge
- Temperature Rating: 104° F (40° C)
Specifications
Specifications
Barmesa BGPH304DS Submersible Grinder Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 3.0 HP
- AMP DRAW (full load): 6.5
- MOTOR TYPE: NEMA B, Oil Filled
- RPM: 3500
- MAXIMUM HEAD: 98'
- MAXIMUM CAPACITY: 96 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.5" Flange, Horizontal, 150lbs std ANSI
- IMPELLER TYPE: Cast Iron, 10 Vanes, Vortex w/ Vanes on Back Side, Dynamically Balanced
- IMPELLER DIAMETER: 5” Standard
- CORD LENGTH: 40'
- CORD SIZE: 10/4C Type: SO
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- CONTROL PANEL REQUIRED
Barmesa BGPH-DS Series Submersible Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BGPH-DS Series Submersible Grinder Pump Product Resources
Download Barmesa BGPH-DS Series Submersible Grinder Pump Catalog Sheet
Download Barmesa BGPH-DS Series Submersible Grinder Pump Manual
