Barmesa BGP302DS Submersible Grinder Pump 3.0 HP 230V 1PH 40' Cord Manual
Barmesa BGP302DS Submersible Grinder Pump 3.0 HP 230V 1PH 40' Cord Manual
SKU : BMS62170605
In Stock Quantity:0
:
Brand
:
Regular price
$5,734.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

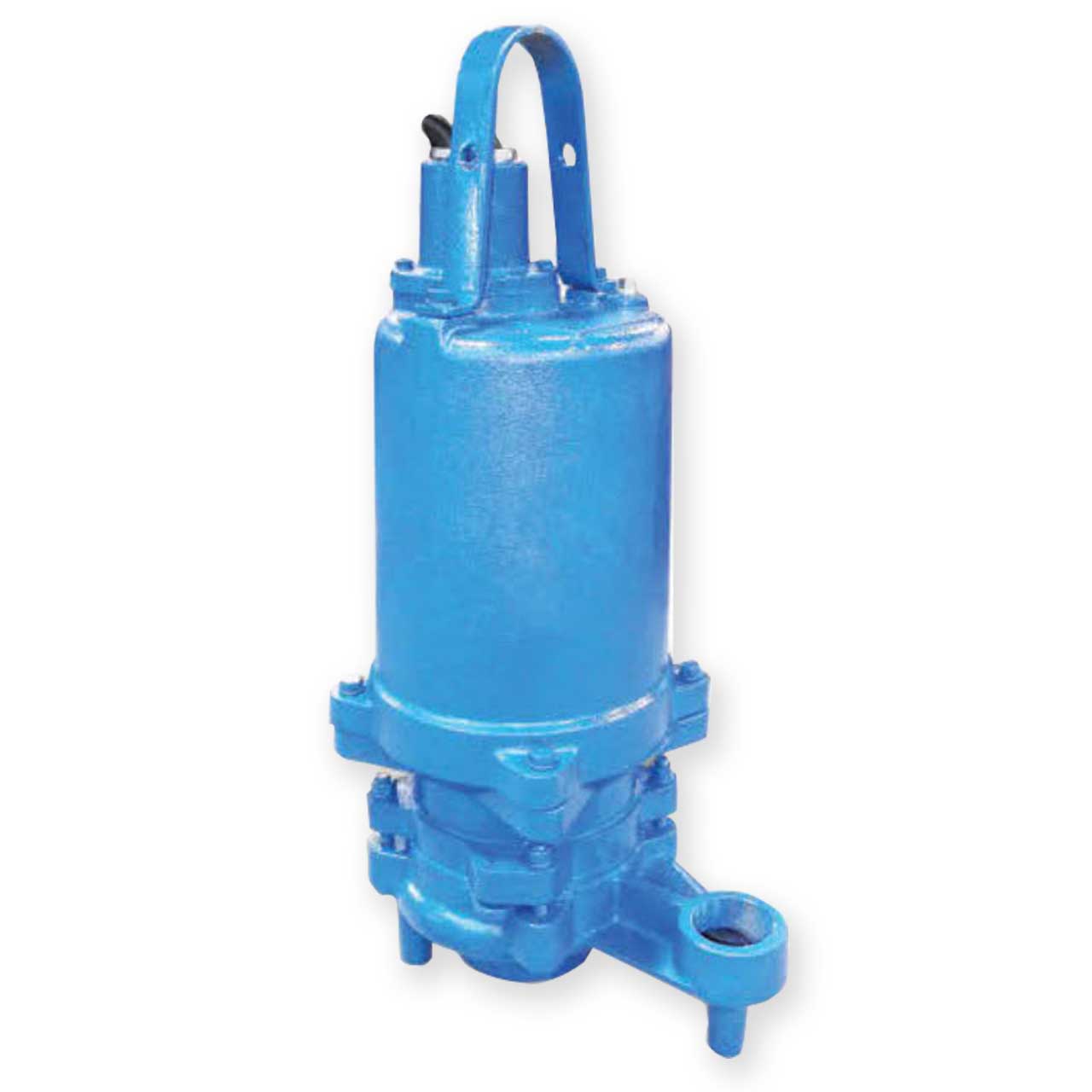

Barmesa BGP-DS Series Submersible Grinder Pump
A Submersible Grinder Pump that is designed to meet the demands of wastewater and sewage applications. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa BGP-DS Series Submersible Grinder Pump Features
- Single Phase, NEMA L, Capacitor Start/Run (to be located in control panel) Oil Filled. Class F Insulation
- Cast Iron ASTMA-48, Class 30 Motor Housing
- Ball Bearings, Single Row, Oil Lubricated.
- Double Mechanical Seal, Oil Lubricated.
- Seal is Silicone Carbide Outboard, Carbon Ceramic Inboard, Buna-N Elastomer and Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 2" NPT Vertical Discharge
- Temperature Rating: 104°F (60°C)
Specifications
Specifications
Barmesa BGP302DS Submersible Grinder Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 3.0 HP
- AMP DRAW (full load): 23
- MOTOR TYPE: NEMA L, Oil Filled. Class F Insulation
- RPM: 3500
- MAXIMUM HEAD: 98'
- MAXIMUM CAPACITY: 96 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT Vertical
- IMPELLER TYPE: Cast Iron, 10 Vanes, Vortex w/ Vanes on Back Side, Dynamically Balanced
- IMPELLER DIAMETER: 5" Standard
- CORD LENGTH: 40'
- CORD SIZE: 10/4C Type: SO
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- HAZARDOUS DUTY: Class 1, Division 1, Group C & D Insulation Class F
- CONTROL BOX REQUIRED
Barmesa BGP-DS Series Submersible Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BGP-DS Series Submersible Grinder Pump Product Resources
Download Barmesa BGP-DS Series Submersible Grinder Pump Catalog Sheet
Download Barmesa BGP-DS Series Submersible Grinder Pump Manual
