Barmesa BGP204DS Submersible Grinder Pump 2.0 HP 460V 3PH 30' Cord Manual
Barmesa BGP204DS Submersible Grinder Pump 2.0 HP 460V 3PH 30' Cord Manual
SKU : BMS72100103
In Stock Quantity:0
:
Brand
:
Regular price
$2,714.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

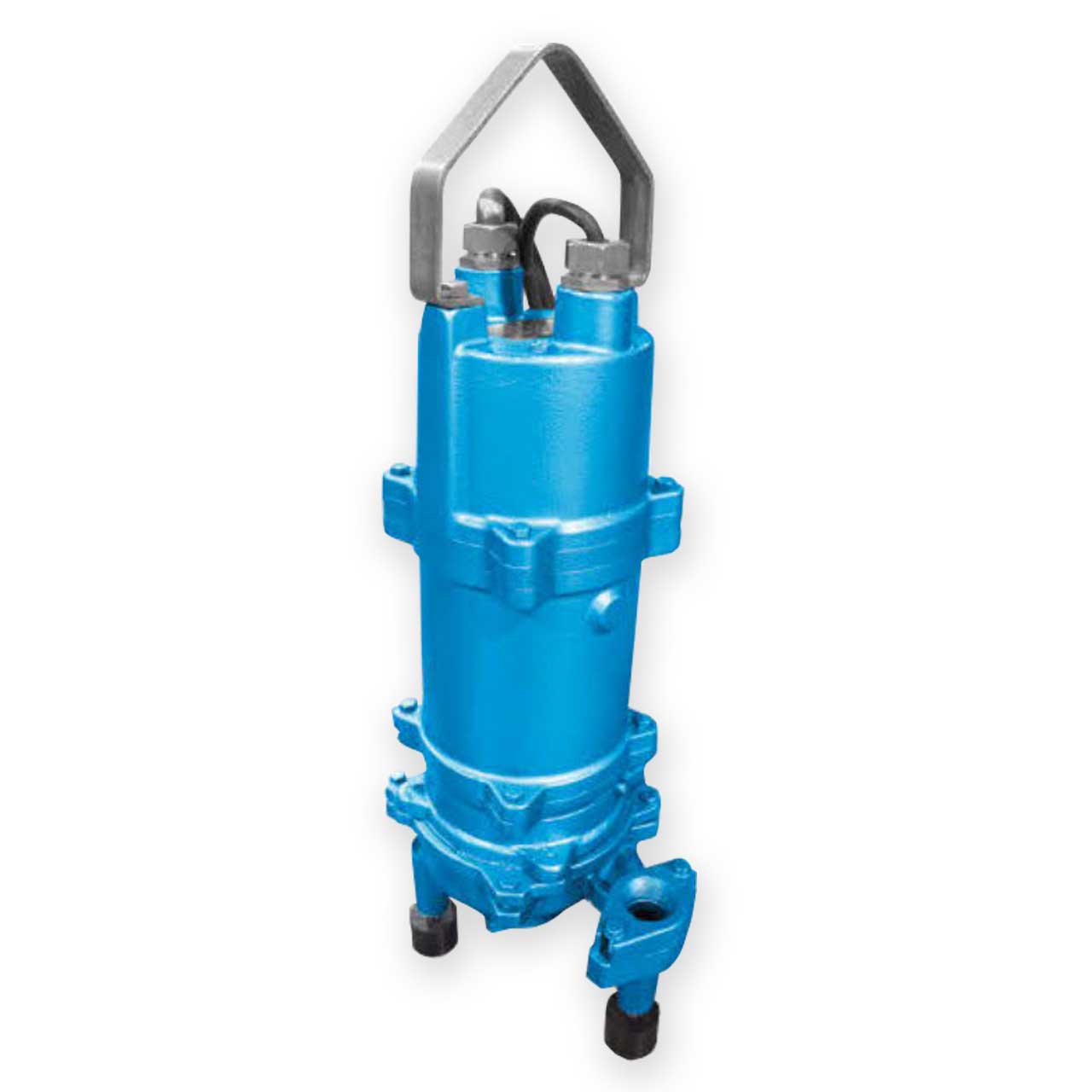

Barmesa BGP-DS Series Submersible Grinder Pump
A Submersible Grinder Pump that is designed to meet the demands of wastewater and sewage applications. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa BGP-DS Series Submersible Grinder Pump Features
- Three Phase,Oil Filled, with Overload Protection in Motor. Class F Insulation.
- Cast Iron Motor Housing
- Ball Bearings, Single Row, Oil Lubricated.
- Double Seal, Oil Lubricated.
- Seal is Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 1.25" NPT Vertical Discharge
- Temperature Rating: 140°F (60°C)
Specifications
Specifications
Barmesa BGP204DS Submersible Grinder Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 4.4
- MOTOR TYPE: Three Phase, Oil Filled
- RPM: 3500
- MAXIMUM HEAD: 108'
- MAXIMUM CAPACITY: 43 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1.25" NPT Vertical
- IMPELLER TYPE: Cast Iron, 12 Vanes, Vortex w/ Vanes on Back Side, Dynamically Balanced
- CORD LENGTH: 30'
- CORD SIZE: 12/4 Type: SOOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
Barmesa BGP-DS Series Submersible Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BGP-DS Series Submersible Grinder Pump Product Resources
Download Barmesa BGP-DS Series Submersible Grinder Pump Catalog Sheet
Download Barmesa BGP-DS Series Submersible Grinder Pump Manual
