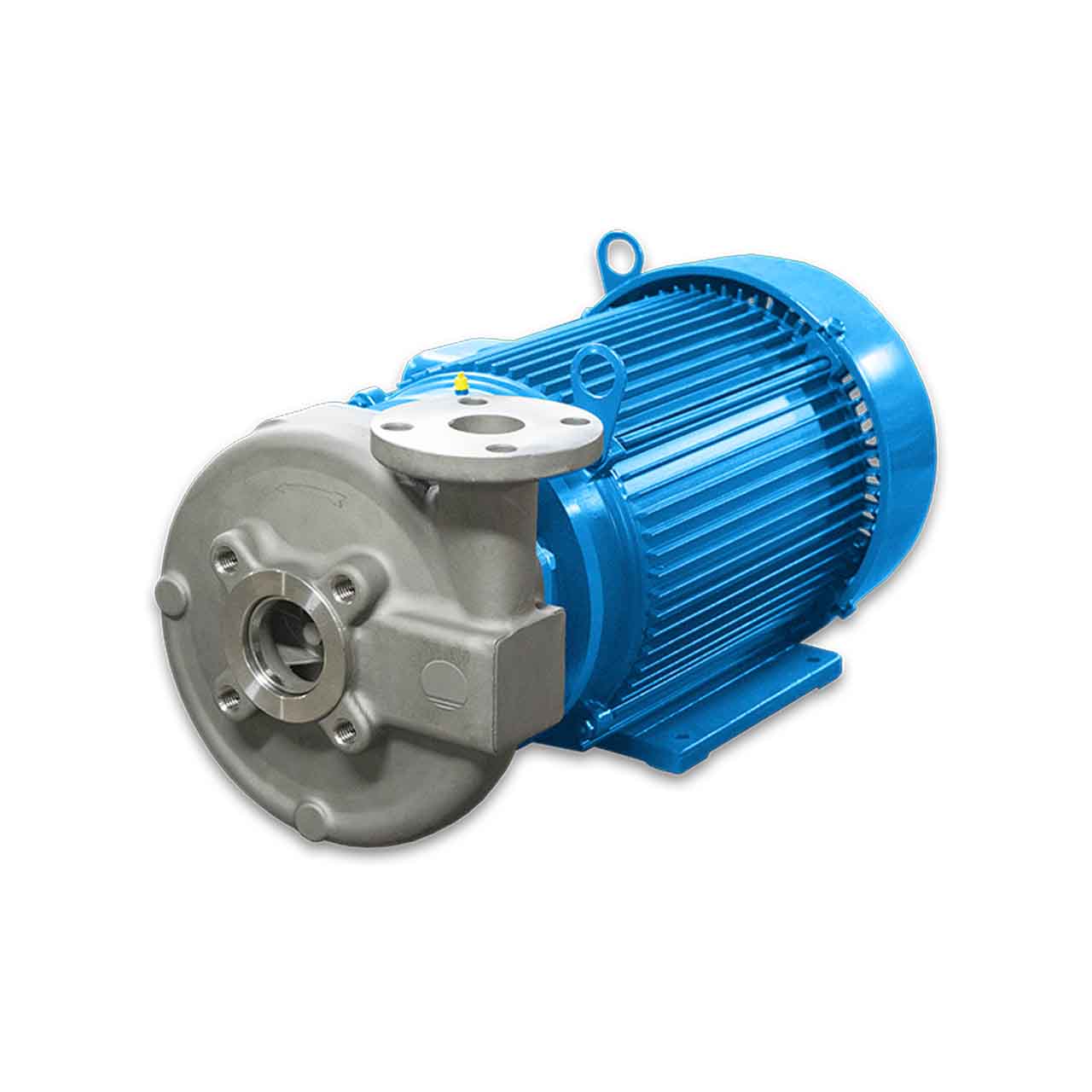

Barmesa BCSF2-7.5-2 Stainless Steel End-Suction Pump 7.5 HP 208-230/460V
Barmesa BCSF2-7.5-2 Stainless Steel End-Suction Pump 7.5 HP 208-230/460V
SKU : BMSBCSF2752
In Stock Quantity:0
:
Brand
:
Regular price
$5,084.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa BCSF Series Stainless Steel End-Suction Pump
The BCSF Pumps efficiently handle fluid transfer tasks in various industrial, commercial, and municipal environments. Constructed from stainless steel, they are ideal for applications requiring corrosion resistance and hygiene, such as water supply, chemical processing, food and beverage industries, and pharmaceutical manufacturing. Their durability and reliability make them valuable assets in fluid transfer operations where cleanliness and longevity are paramount.
Barmesa BCSF Series Stainless Steel End-Suction Pump Features
- NEMA Standard JM Shaft Extension from 3 to 20 HP at 3500 RPM and 0.5 to 5 HP at 1750 RPM. Single Phase Motors are 115/208-230V. Three Phase Motors are 208-230/460V. Overload Protection Must be Provided.
- Seal is Mechanical Type 01, Carbon/Silicone-Carbide Faces, Viton Elastomers 316 Stainless Steel Metal Parts.
- Impeller is made of AISI316 Stainless Steel
- 2.0" or 3.0" Flange Horizontal Suction
- 1½" or 2.0" Flange Vertical Discharge
- Maximum Temperature: 250°F (121 °C)
Specifications
Specifications
Barmesa BCSF2-7.5-2 Stainless Steel End-Suction Pump Specifications
- DISCHARGE SIZE: 2.0" Flange Vertical
- INLET SIZE: 3.0" Flange Horizontal
- MAXIMUM CAPACITY: 390 GPM
- MAXIMUM HEAD: 120'
- MAXIMUM WORKING PRESSURE: 175 PSIG
- IMPELLER MATERIAL: AISI 316 Stainless Steel / Closed
- BODY CONSTRUCTION: AISI 316 Stainless Steel
- HORSEPOWER: 7.5 HP @ 3500 RPM
- MOTOR TYPE: TEFC (Totally Enclosed Fan-Cooled)
- VOLTAGE: 3ø - 208-230/460V
- MAXIMUM LIQUID TEMPERATURE: 250 °F (121 °C)
Barmesa BCSF Series Stainless Steel End-Suction Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BCSF Series Stainless Steel End-Suction Pump Product Resources
Download Barmesa BCSF Series Stainless Steel End-Suction Pump Kit Catalog Sheet
Download Barmesa BCS/BCSF Series Stainless Steel End-Suction Pump Kit Manual
