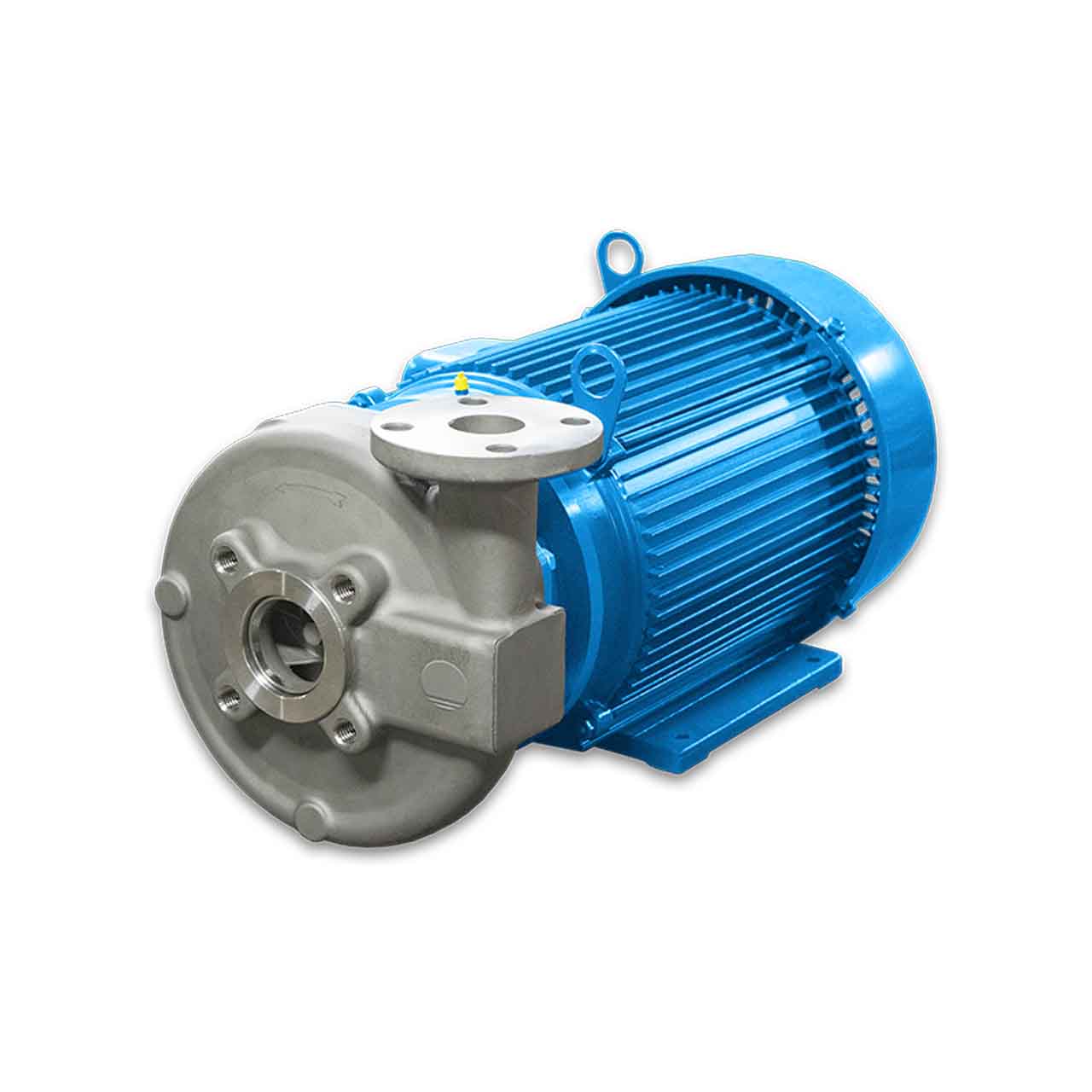

Barmesa BCSF1-1/2-10-2 Stainless Steel End-Suction Pump 10 HP 208-230/460V

Barmesa BCSF1-1/2-10-2 Stainless Steel End-Suction Pump 10 HP 208-230/460V

Usually ships within 3 weeks

SKU : BMSBCSF112102

In Stock Quantity:0

:
Brand : Barmesa Pumps
$5,235.75 USD
Shipping calculated at checkout.

Description

Barmesa BCSF Series Stainless Steel End-Suction Pump

The BCSF Pumps efficiently handle fluid transfer tasks in various industrial, commercial, and municipal environments. Constructed from stainless steel, they are ideal for applications requiring corrosion resistance and hygiene, such as water supply, chemical processing, food and beverage industries, and pharmaceutical manufacturing. Their durability and reliability make them valuable assets in fluid transfer operations where cleanliness and longevity are paramount.

Barmesa BCSF Series Stainless Steel End-Suction Pump Features

  • NEMA Standard JM Shaft Extension from 3 to 20 HP at 3500 RPM and 0.5 to 5 HP at 1750 RPM. Single Phase Motors are 115/208-230V. Three Phase Motors are 208-230/460V. Overload Protection Must be Provided.
  • Seal is Mechanical Type 01, Carbon/Silicone-Carbide Faces, Viton Elastomers 316 Stainless Steel Metal Parts.
  • Impeller is made of AISI316 Stainless Steel
  • 2.0" or 3.0" Flange Horizontal Suction
  • 1½" or 2.0" Flange Vertical Discharge
  • Maximum Temperature: 250°F (121 °C)

Specifications

Barmesa BCSF1½-10-2 Stainless Steel End-Suction Pump Specifications

  • DISCHARGE SIZE: 1½" Flange Vertical
  • INLET SIZE: 2.0" Flange Horizontal
  • MAXIMUM CAPACITY: 270 GPM
  • MAXIMUM HEAD: 180'
  • MAXIMUM WORKING PRESSURE: 175 PSIG
  • IMPELLER MATERIAL: AISI 316 Stainless Steel / Closed
  • BODY CONSTRUCTION: AISI 316 Stainless Steel
  • HORSEPOWER: 10 HP @ 3500 RPM
  • MOTOR TYPE: TEFC (Totally Enclosed Fan-Cooled)
  • VOLTAGE: 3ø - 208-230/460V
  • MAXIMUM LIQUID TEMPERATURE: 250 °F (121 °C)

Barmesa BCSF Series Stainless Steel End-Suction Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa BCSF Series Stainless Steel End-Suction Pump Product Resources


Download Barmesa BCSF Series Stainless Steel End-Suction Pump Kit Catalog Sheet

Download Barmesa BCS/BCSF Series Stainless Steel End-Suction Pump Kit Manual
