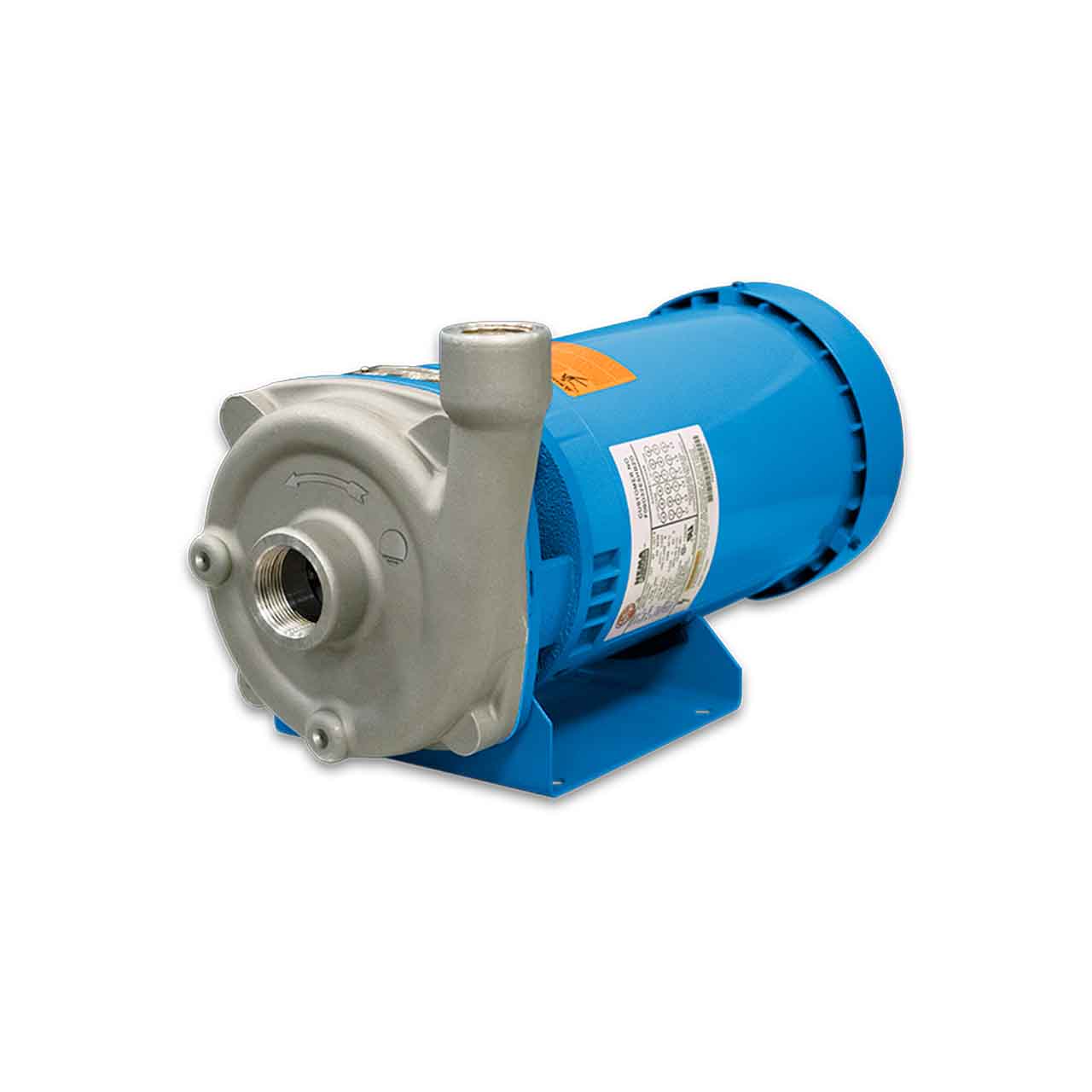

Barmesa BCS1-1/4 -1-2 Stainless Steel End-Suction Pump 1.0 HP 208-230/460V

Barmesa BCS1-1/4 -1-2 Stainless Steel End-Suction Pump 1.0 HP 208-230/460V

Usually ships within 3 weeks

SKU : BMSBCS11412

In Stock Quantity:0

:
Brand : Barmesa Pumps
$2,092.50 USD
Shipping calculated at checkout.

Description

Barmesa BCS Series Stainless Steel End-Suction Pump

The BCS Pumps efficiently handle fluid transfer tasks in various industrial, commercial, and municipal environments. Constructed from stainless steel, they are ideal for applications requiring corrosion resistance and hygiene, such as water supply, chemical processing, food and beverage industries, and pharmaceutical manufacturing. Their durability and reliability make them valuable assets in fluid transfer operations where cleanliness and longevity are paramount.

Barmesa BCS Series Stainless Steel End-Suction Pump Features

  • NEMA Standard 56J Frame Motors from 0.75 to 3.0 HP at 3500 RPM and 0.5 HP at 1750 RPM. Open Drip Proof and Totally Enclosed Fan-Cooled.
  • Single Phase 115/230V (3HP Model is 230V only) Built in Overload with Reset Provided. Three-Phase 208-230/460V. Overload Protection Must be Provided.
  • Seal is Mechanical Type 01, Carbon/Silicone-Carbide Faces, Viton Elastomers 316 Stainless Steel Metal Parts.
  • Impeller is made of AISI316 Stainless Steel
  • 1¼" or 1½" NPT Horizontal Suction
  • 1" or 1¼" NPT Vertical Discharge
  • Maximum Temperature: 250°F (121 °C)

Specifications

Barmesa BCS1¼-1-2 Stainless Steel End-Suction Pump Specifications

  • DISCHARGE SIZE: 1½"" NPT Vertical
  • INLET SIZE: 1¼" NPT Horizontal
  • MAXIMUM SOLIDS HANDLING SIZE: Up to 3/8" Diameter
  • MAXIMUM CAPACITY: 75 GPM
  • MAXIMUM HEAD: 45'
  • MAXIMUM WORKING PRESSURE: 175 PSIG
  • IMPELLER MATERIAL: AISI 316 Stainless Steel / Open
  • BODY CONSTRUCTION: AISI 316 Stainless Steel
  • HORSEPOWER: 1.0 HP @ 3500 RPM
  • MOTOR TYPE: ODP (Open Drip-Proof)
  • VOLTAGE: 3ø - 208-230/460V
  • MAXIMUM LIQUID TEMPERATURE: 250 °F (121 °C)

Barmesa BCS Series Stainless Steel End-Suction Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa BCS Series Stainless Steel End-Suction Pump Product Resources


Download Barmesa BCS Series Stainless Steel End-Suction Pump Kit Catalog Sheet

Download Barmesa BCS/BCSF Stainless Steel End-Suction Pump Kit Series Manual
