Bargain Cave ~ Huge Discount Offer!
The bargain cave is a collection of clearance and discounted items.
Barmesa ANSI Centrifugal Process Pumps 911S Series 1.5 x 3 - 8 AB
Barmesa ANSI Centrifugal Process Pumps 911S Series 1.5 x 3 - 8 AB
SKU : BMS60340012
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

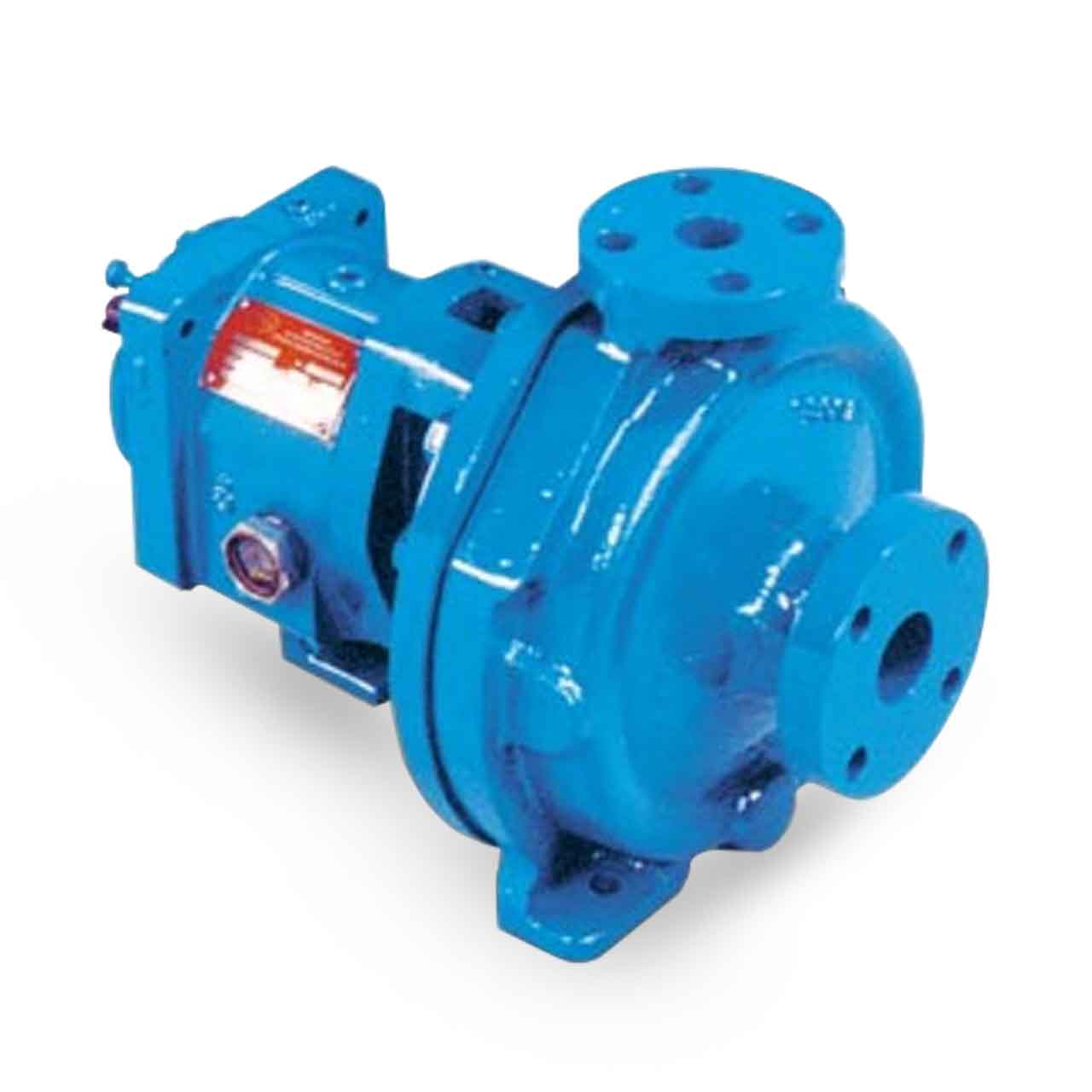

Barmesa ANSI Centrifugal Process Pumps
BARMESA process pump series 911 is a centrifugal pump with horizontal suction and vertical discharge, open impeller, which meets ANSI B73.1 requirements. It is made of the best materials and components, with continuous inspection, ensuring high quality.
Barmesa ANSI Centrifugal Process Pumps Applications
- Automotive Industry
- Food & Beverage Industry
- Textile
- Petrochemical
- Pharmaceutical Industry
- Chemical
- Pulps & paper
- General industry
Barmesa ANSI Centrifugal Process Pumps Features
- Volute in Horizontal Suction and Vertical Discharge, Foot Design makes it Resistant to Slippage and the Distortion Due to Piping Loads. Packing is Fully Confined, the Standard Layout is Serrated Flanges with Flat Face, ASME/ANSI B16.5, for 150#, there are other Alternatives such as: 150#RF, 3400#FF and 300#RF
- Impeller is Fully Open and Threaded to the Drive Shaft, Thread is Isolated from the Fluid Pumped by Teflon Ring
- Seal Plate is Manufactured in Iron or Stainless Steel 316, Machined to Totally Seal with Volute Gaskets.
- Adapter is made of Iron, with Machined Socket to Hold the Volute and the Seal Plate, having Holes to fit the Bearings Box.
- Shaft is made of 4140 Steel and comes with Adjustable Bearing Set. This Shaft can also be Supplied in 316 Stainless and in this Case it Requires no Sleeve
- Bearings Box is a Rigid Construction and Requires no Additional Machining, to make Lubrication Oil to Grease or Oil Mist, has a Sight Glass to Check the Oil Level, the Box is Sealed in INPRO Labyrinth Seal "VBX". This Bearing Box is made of Iron for Models 911M and 911L has Two Bearings Box Support Sizes; According to the Suction Lift the Support Size is Selected.
- Bearings Support is made of Iron Material and Slot Holes for Lubrication with Oil, Grease and Oil Mist.
- Outer Bearings is Located in the Bearing Support, it is a Two Angular Contact Ball and its Design is Suitable to Support Combined Load, Meaning Axial and Radial Loads Acting Simultaneously.
- Bearing Interior is a Rigid Single Row of Bearings with a Simple Design, Suitable to Support Combined Load, meaning Axial and Radial Loads Acting Simultaneously.
- Available Construction Material all Ductile Iron, Ductile Iron with 316 Stainless Steel Impeller and all 316 Stainless Steel
Specifications
Specifications
Barmesa ANSI Centrifugal Process Pumps Specifications
- DISCHARGE SIZE: 1.5"
- INLET SIZE: 3.0"
- MAXIMUM CAPACITY: 295 GPM
- MAXIMUM HEAD: 300'
- IMPELLER MATERIAL: Ductile Iron
- BODY CONSTRUCTION: Ductile Iron
- PUMP SIZE: 1.5 x 3 - 8 AB
- RPM: 1750 and 3500 RPM
- MAXIMUM LIQUID TEMPERATURE: 350°F (177°C)
Barmesa ANSI Centrifugal Process Pumps Performance Curve
