Barmesa 8XBSE75046HADS Submersible Non-Clog X-Proof Sewage Pump 75 HP 460V 3PH 25' Cord Manual
Barmesa 8XBSE75046HADS Submersible Non-Clog X-Proof Sewage Pump 75 HP 460V 3PH 25' Cord Manual
SKU : BMS62170365
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

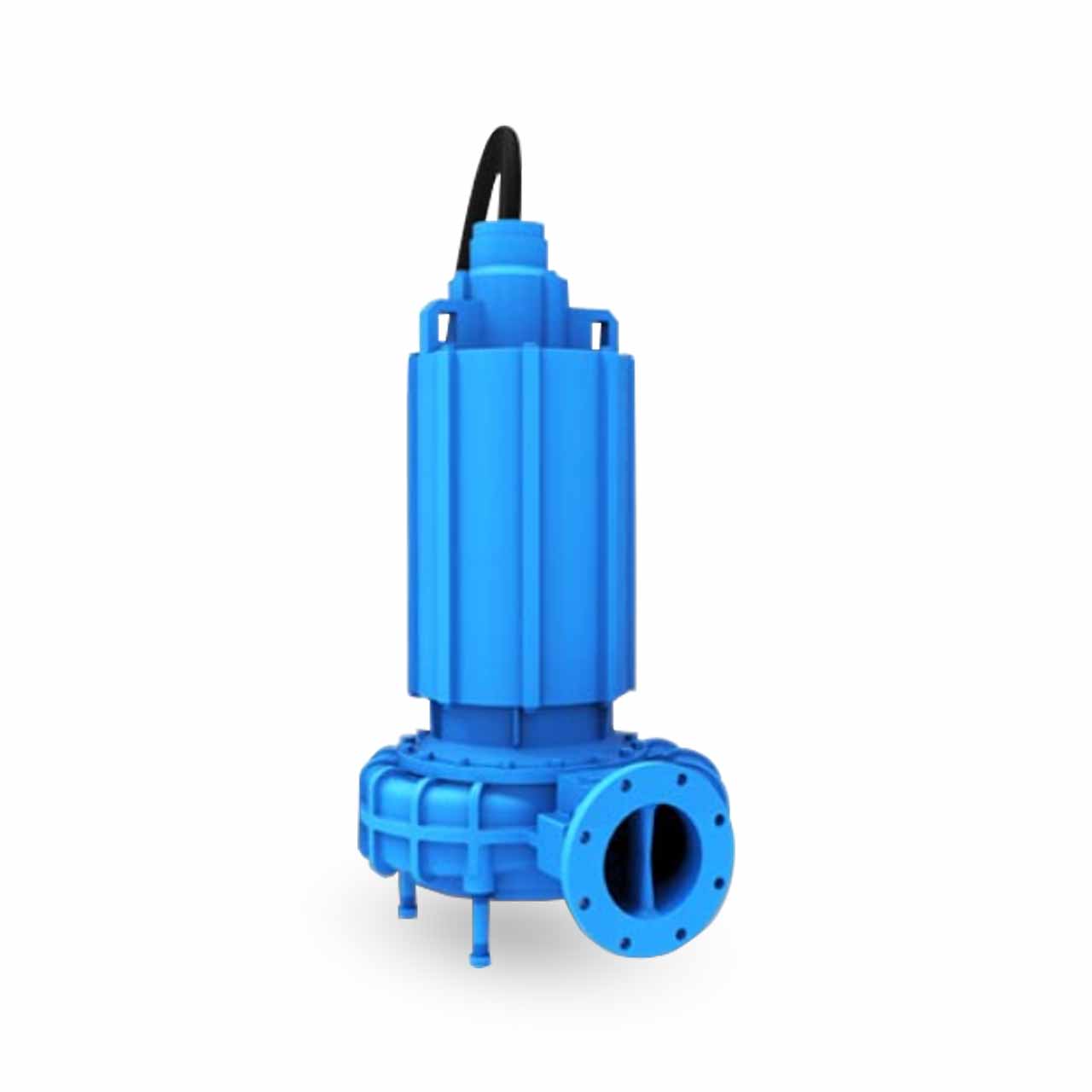

Barmesa 8XBSE-HADS Series Submersible Non-Clog X-Proof Sewage Pump
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa 8XBSE-HADS Series Submersible Non-Clog X-Proof Sewage Pump Features
- Nema B Three Phase, Air Cooled. Explosion Proof, Class I, Division 1, Group C & D. Requires Overload Protection to be Included in Control Panel.
- Cast Iron Motor Housing
- Upper Ball Bearings, Permanently Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Permanently Oil Lubricated, Designed for Radial and Axial Loads.
- Double Mechanical Seal
- Seal is Ceramic Stationary Seat, Carbon Ring and Exclusion Seal in Rotatory Set, Buna-N Elastomer and Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 8" 125' Flange Horizontal Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 8XBSE75046HADS Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 75 HP
- AMP DRAW (full load): 92
- MOTOR TYPE: NEMA B, Air Cooled, Explosion Proof
- RPM: 1150
- MAXIMUM HEAD: 108'
- MAXIMUM CAPACITY: 4000 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 8.0" 125LB Flange Horizontal
- MAXIMUM SOLIDS HANDLING: 3.0" Spherical Solids
- IMPELLER TYPE: Cast Iron, 3 Vanes, Closed w/ a Bronze Wear Ring and Vanes on Back Side
- IMPELLER DIAMETER: Ø14.5" Standard
- CORD LENGTH: 25'
- CORD SIZE: 2/4 Type: SOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- HAZARDOUS DUTY: Class 1, Division 1, Group C & D Insulation Class F
- CONTROL BOX REQUIRED
Barmesa 8XBSE-HADS Series Submersible Non-Clog X-Proof Sewage Pump Performance Curve
