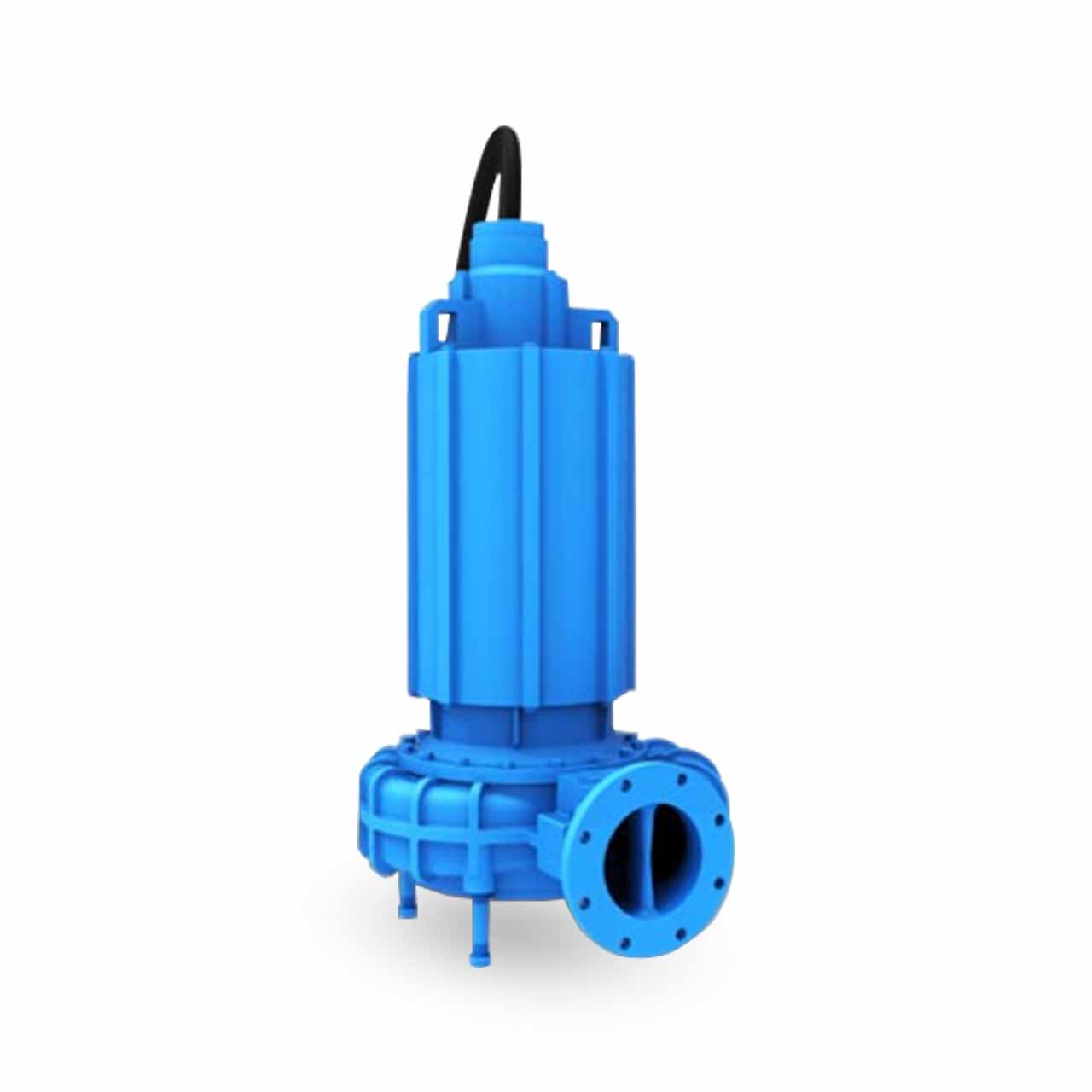

Barmesa 8XBSE50046HADS Submersible Non-Clog X-Proof Sewage Pump 50 HP 460V 3PH 25' Cord Manual
Barmesa 8XBSE50046HADS Submersible Non-Clog X-Proof Sewage Pump 50 HP 460V 3PH 25' Cord Manual
SKU : BMS62170363
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa 8XBSE Series Submersible Non-Clog X-Proof Sewage Pump
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa 8XBSE Series Submersible Non-Clog X-Proof Sewage Pump Features
- Explosion Proof, NEMA B, Three Phase, 230/460 Volts, 60 Hz, 1750 RPM, Air Cooled.
- Requires Overload Protection to be Included in Control Panel.
- Cast Iron ASTM A-48, Class 30 Motor Housing
- Upper Ball Bearings, Single Row, Ball, Permanently Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Double Row, Ball, Permanently Oil Lubricated, Designed for Radial and Axial Loads.
- Seal is Double, Mechanical, Oil Filled Chamber
- Ceramic Stationary Seal, Carbon Ring and Exclusion Seal in the Rotatory Set, Buna-N Elastomer and Stainless Steel Hardware.
- Impeller is Made of Cast Iron ASTM A-48 Class 30
- 8", 125lb, Flange Horizontal Discharge
- Temperature Rating: 104° F (40° C)
Specifications
Specifications
Barmesa 8XBSE50046HADS Submersible Non-Clog X-Proof Sewage Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 50 HP
- AMP DRAW (full load): 67
- MOTOR TYPE: NEMA B, Air Cooled, Explosion Proof
- RPM: 1150
- MAXIMUM HEAD: 100'
- MAXIMUM CAPACITY: 4100 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 8.0" 125LB Flange Horizontal
- MAXIMUM SOLIDS HANDLING: 3.0" Spherical Solids
- IMPELLER TYPE: Cast Iron, 3 Vanes, Closed w/ a Bronze Wear Ring and Vanes on Back Side
- IMPELLER DIAMETER: Ø13.5" Standard
- CORD LENGTH: 25'
- CORD SIZE: 4/4 Type: SOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- HAZARDOUS DUTY: Class 1, Division 1, Group C & D Insulation Class F
- CONTROL BOX REQUIRED
Barmesa 8XBSE Series Submersible Non-Clog X-Proof Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 8XBSE Series Submersible Non-Clog X-Proof Sewage Pump Product Resources
Download Barmesa 8XBSE50046HADS Submersible Non-Clog X-Proof Sewage Pump Catalog Sheet
