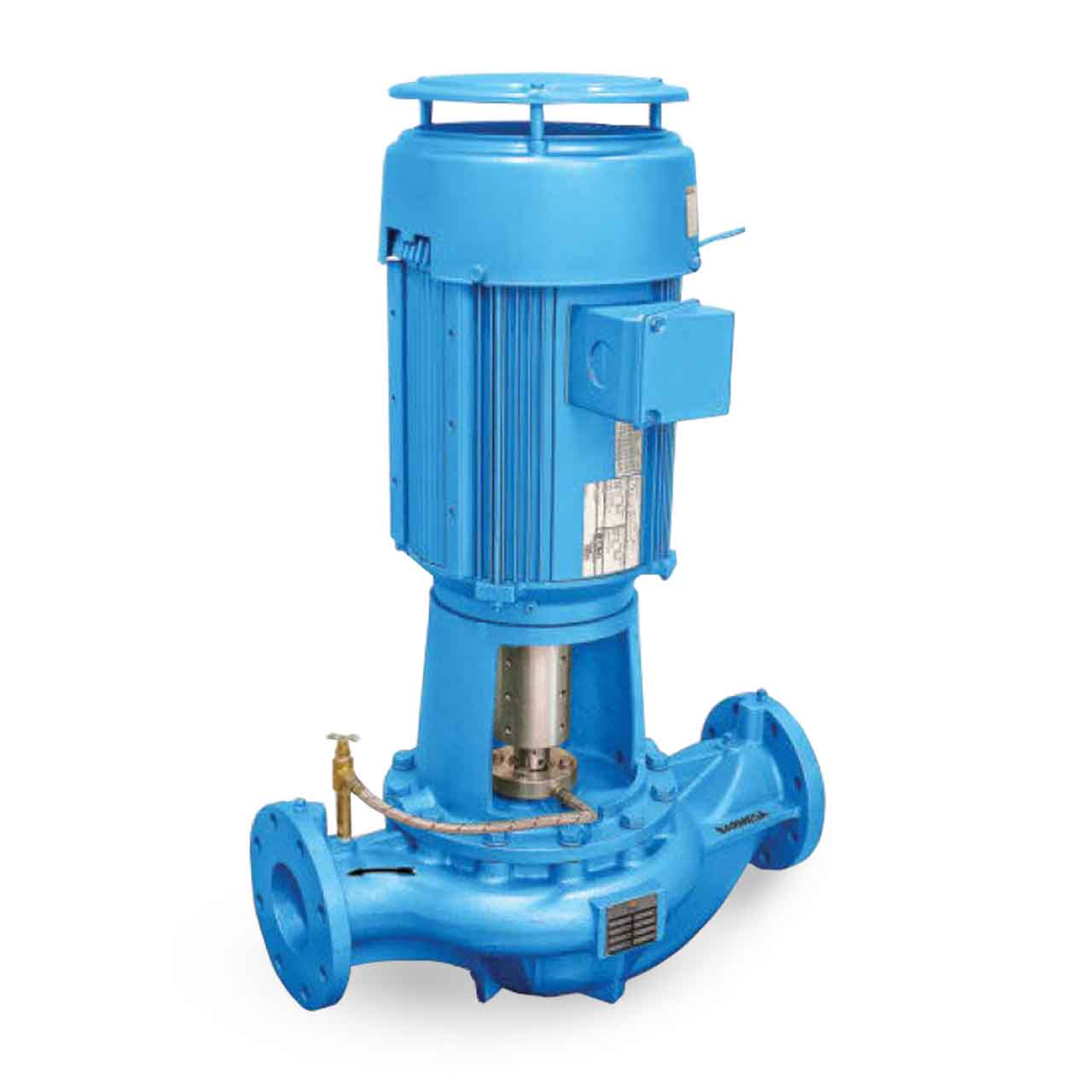

Barmesa 8X8X15 Split Coupled Vertical In-Line Pump

The BVL Vertical In-Line Pump Series is a versatile and cost-effective pumping solution. The BVL Series does not require field alignment or a foundation. The pump is supported by the pipes, thus avoiding misalignment. Plus the vertical design takes up to three times less space than a horizontal split case pump installation. The BVL pumps are engineered  with a dynamically balanced impeller to ensure silent operation and require minimum maintenance time.

Barmesa 8X8X15 Split Coupled Vertical In-Line Pump Typical Applications

• Air Conditioning
• Condensed Water
• Chilled Water
• Service Water

Barmesa 8X8X15 Split Coupled Vertical In-Line Pump Features and Benefits

• Pumps do not Require Field Alignment or a Foundation.
• Space Saving Can Take up to Three Times Less Space Than the Horizontal Split Case Pump.
• Coupling Allows all Mechanical Seals Components to be Removed for Servicing without Disturbing other Components. Reinstalling it gets the Pump Back to its Original Specifications.
• Highly Reliable Due to the Rotating Assembly and the Dynamically Balanced Impeller Assuring a Silent Operation
• Simplifies Pipes Fixing Considerably. The Pump is Supported by the Pipes Avoiding Misalignment.
• Installation and Servicing Costs are Highly Reduced.
• Minimum Time Required for Maintenance
• Servicing can be Done without Disassembling it.
• Mechanical Seal is Viton Secondary, Carbon Rotating Face and Silicon Carbide Stationary Seat. Stainless Steel Multi-Spring Outside Balanced Type.

Barmesa 8X8X15 Split Coupled Vertical In-Line Pump Specifications

Barmesa 8X8X15 Split Coupled Vertical In-Line Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barmesa Split Coupled Vertical In-Line Pump Product Resources

Download Barmesa Split Coupled Vertical In-Line Pump Series Brochure

Download Barmesa Split Coupled Vertical In-Line Pump Series Manual
