Barmesa 6XBSE75034HADS Submersible Non-Clog X-Proof Sewage Pump 75 HP 230V 3PH 25' Cord Manual
Barmesa 6XBSE75034HADS Submersible Non-Clog X-Proof Sewage Pump 75 HP 230V 3PH 25' Cord Manual
SKU : BMS6XBSE75034HADS
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

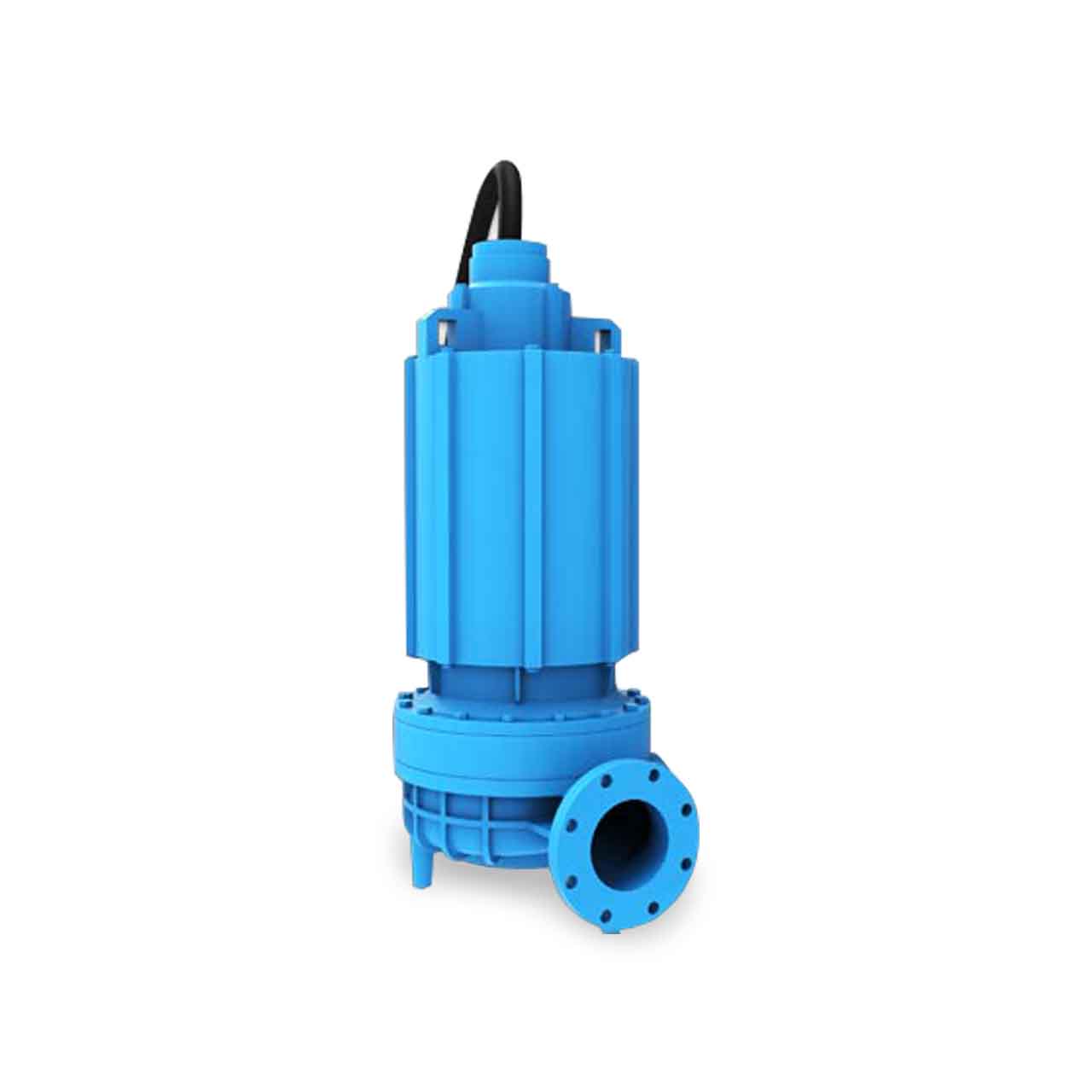

Barmesa 6XBSE-HADS Series Submersible Non-Clog X-Proof Sewage Pump
A Submersible Sewage Pump that is useful for a variety of applications. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa 6XBSE-HADS Series Submersible Non-Clog X-Proof Sewage Pump Features
- Three Phase, NEMA B, Air Cooled, Explosion Proof, Class 1, Division 1, Group C & D, Insulation Class F.
- Requires Overload Protection to be Included in Control Panel.
- Cast Iron ASTM A-48, class 30 Motor Housing
- Upper Ball Bearings, Single Row, Oil Lubricated for Radial Load. Lower Ball Bearings, Single Row, Oil Lubricated, for Radial and Thrust Load.
- Double, Mechanical, Oil Filled Chamber
- Seal is Silicon Carbide Outboard Seal, Carbon Ceramic Inboard Seal, with Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 6", 125lb, Flange Horizontal Discharge
- Temperature Rating: 104° F (40° C)
Specifications
Specifications
Barmesa 6XBSE75034HADS Submersible Non-Clog X-Proof Sewage Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 75 HP
- MOTOR TYPE: NEMA B, Air Cooled, Explosion Proof
- RPM: 1750
- MAXIMUM HEAD: 110'
- MAXIMUM CAPACITY: 2750 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 6.0" 125LB Flange Horizontal
- MAXIMUM SOLIDS HANDLING: 4.0" Spherical Solids
- IMPELLER TYPE: Cast Iron, 1 Vane, Closed w/ Vanes on Back Side
- IMPELLER DIAMETER: 12" Standard
- CORD LENGTH: 25'
- CORD SIZE: 8/4 Type: SOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- HAZARDOUS DUTY: Class 1, Division 1, Group C & D Insulation Class F
- CONTROL BOX REQUIRED
Barmesa 6XBSE-HADS Series Submersible Non-Clog X-Proof Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 6XBSE-HADS Series Submersible Non-Clog X-Proof Sewage Pump Product Resources
