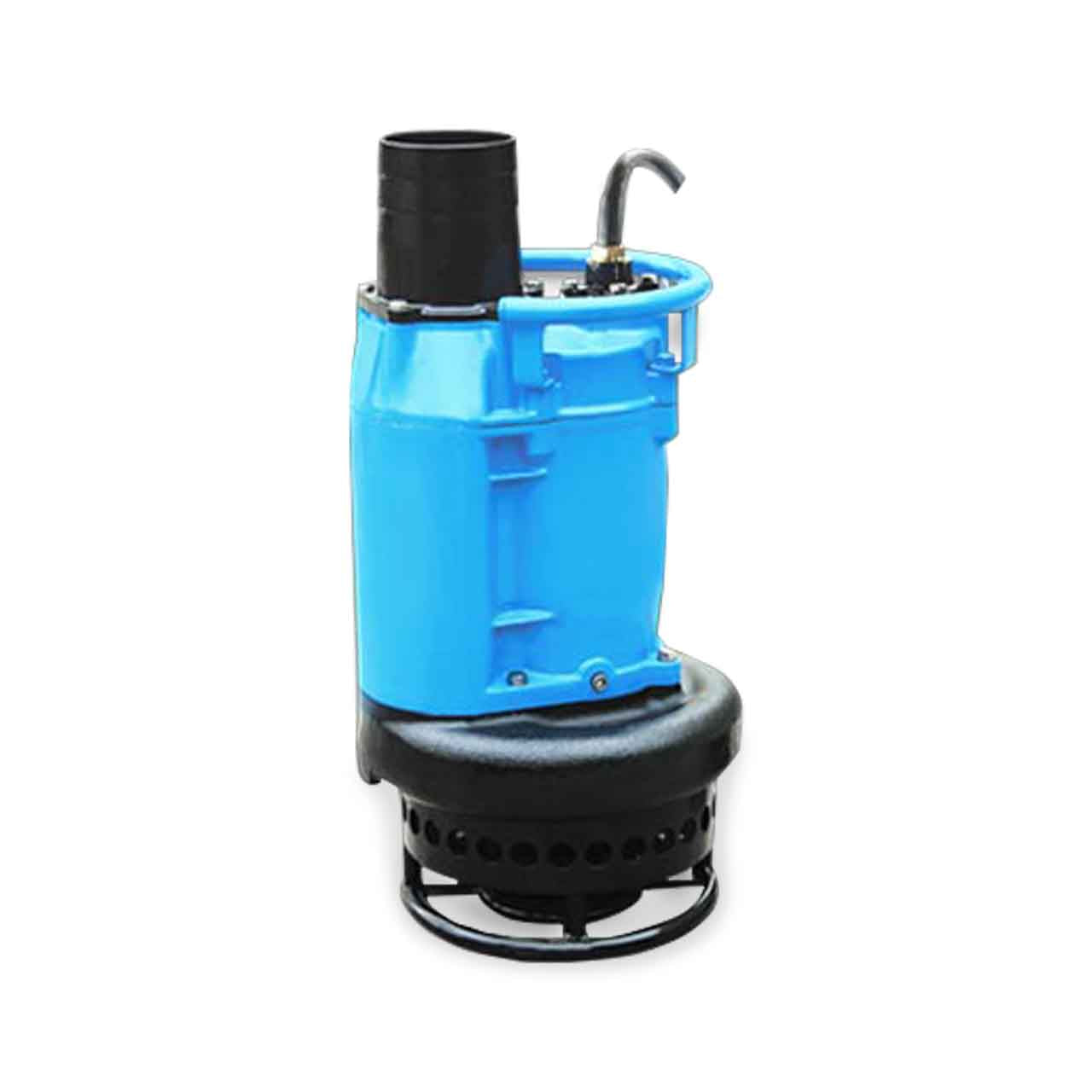

Barmesa 6KMUD1203 Submersible Slurry Pump 12 HP 230V 3PH 50' Cord Manual

Barmesa 6KMUD1203 Submersible Slurry Pump 12 HP 230V 3PH 50' Cord Manual

Usually ships within 2 days

SKU : BMS70090277

In Stock Quantity:0

:
Brand : Barmesa Pumps
$6,393.75 USD
Shipping calculated at checkout.

Description

Barmesa KMUD Series Submersible Slurry Pump

Built for extreme slurry applications, the KMUD Series tackles tough, abrasive pumping challenges with ease. Its high nickel chrome agitator and high chrome alloy impeller work in tandem to maintain smooth, efficient operation. Equipped with a robust three-phase induction motor, the KMUD Series delivers reliable power under demanding conditions.

Barmesa KMUD Series Submersible Slurry Pump Applications

  • Open Mines
  • Construction
  • Treatment Plants
  • Drilling Mud
  • Pulp & Paper Process
  • Iron & Steel and More!

Barmesa KMUD Series Submersible Slurry Pump Features

  • Three Phase Induction Motor, 230 & 460 Volts, 60 Hz, 1750 RPM. Insulation Class F and IP68 Protection Class.
  • Cast Iron ASTM A-48 Class 30 Motor Housing
  • Double Mechanical, Oil Filled Chamber Seal
  • Seal is SiC-SiC/SiC-SiC. Stainless Steel Hardware
  • Impeller is made of High Chrome Alloy, Semi-Open
  • 8.0" Vertical for Hose Coupling. Cast Iron ASTM A-48 Class 30
  • Temperature Rating: 104°F (40°C)

Specifications

Barmesa 6KMUD1203 Submersible Slurry Pump Specifications

  • VOLTAGE: 3ø, 230V, 60Hz
  • HORSEPOWER: 12 HP
  • AMP DRAW (full load): 32.4
  • MOTOR TYPE: Three Phase Induction Motor
  • RPM: 1750
  • MAXIMUM HEAD: 69'
  • MAXIMUM CAPACITY: 840 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 6.0"
  • IMPELLER TYPE: High Chrome Alloy, Semi-Open
  • CORD LENGTH: 50' Type Neoprene Cord
  • BODY CONSTRUCTION: Cast Iron ASTM A-48 Class 30
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)

Barmesa KMUD Series Submersible Slurry Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa KMUD Series Submersible Slurry Pump Product Resources


Download Barmesa 6KMUD1203 Series Submersible Slurry Pump Catalog Sheet

Download Barmesa Submersible Dewatering Pump Brochure

Download Barmesa KMUD Series Submersible Slurry Pump Manual
