Barmesa 6BSE48044LDS Submersible Non-Clog Sewage Pump 48 HP 460V 3PH 25' Cord Manual

Barmesa 6BSE48044LDS Submersible Non-Clog Sewage Pump 48 HP 460V 3PH 25' Cord Manual

Discontinued or no longer available

SKU : BMS62170220

In Stock Quantity:0

:
Brand : Barmesa Pumps
Shipping calculated at checkout.

Description

DISCONTINUED SEE SUGGESTED REPLACMENT: Solids Handling 6SWL/6SWM/6SWH

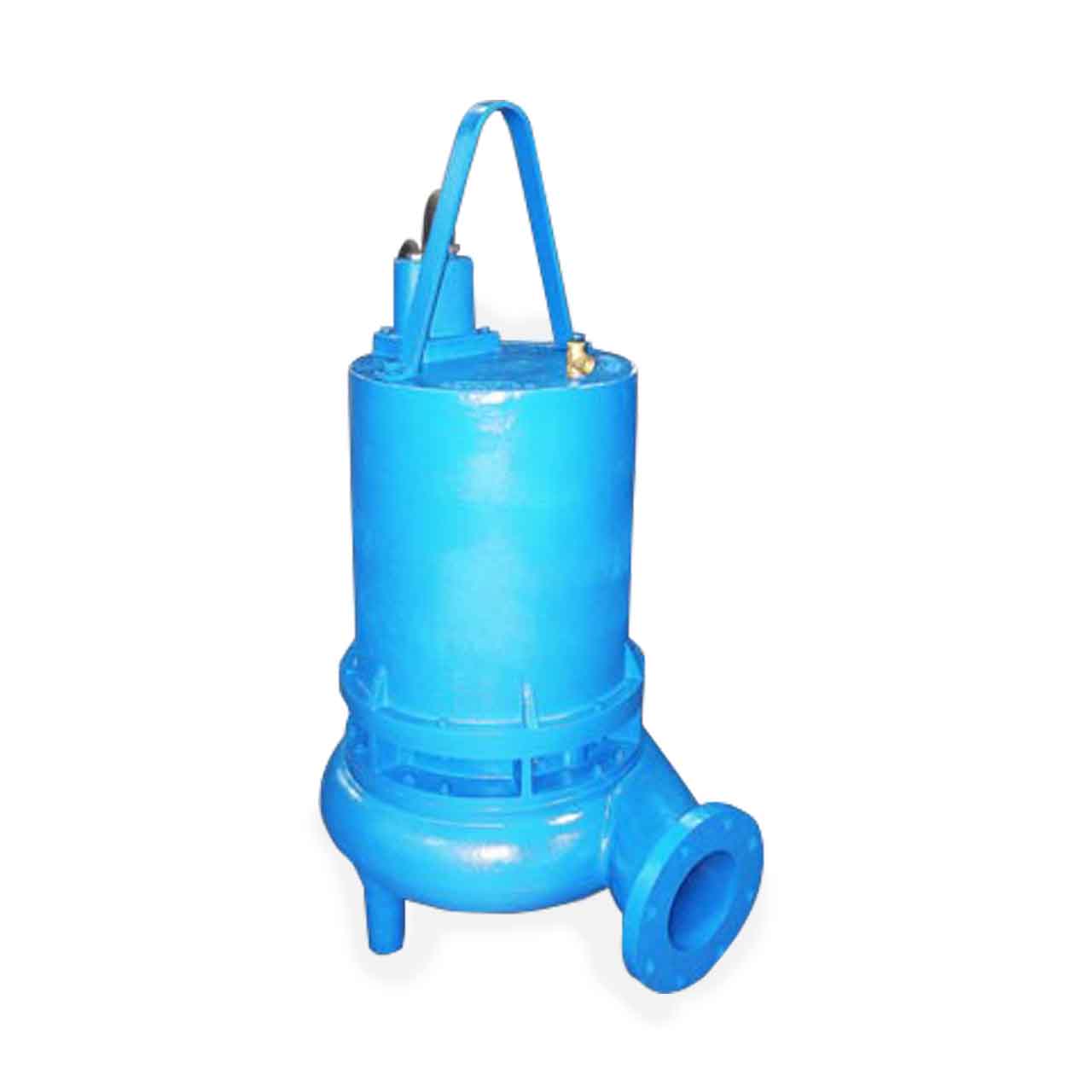

Barmesa 6BSE-LDS Series Submersible Non-Clog Sewage Pump

A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.

Barmesa 6BSE-LDS Series Submersible Non-Clog Sewage Pump Features

  • Nema B, Three Phase, Oil Filled. Requires Overload Protection to be Included in Control Panel.
  • Cast Iron Motor Housing
  • Upper Ball Bearings, Single Row, Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Single Row, Oil Lubricated, Designed for Radial and Thrust Loads.
  • Double Mechanical Seal
  • Seal is Silicone Carbide Outboard Seal, Carbon Ceramic Inboard Seal with Stainless Steel Hardware.
  • Impeller is made of Cast Iron ASTM A-48 Class 30
  • 6" 125' Flange Horizontal Discharge
  • Temperature Rating: 104°F (40°C)

Specifications

Barmesa 6BSE48044LDS Non-Clog Sewage Pump Specifications

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 48 HP
  • AMP DRAW (full load): 65
  • MOTOR TYPE: NEMA B, Oil Filled
  • RPM: 1750
  • MAXIMUM HEAD: 205'
  • MAXIMUM CAPACITY: 2200 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 6.0" 125LB Flange Horizontal
  • MAXIMUM SOLIDS HANDLING: 4.0" Spherical Solids
  • IMPELLER TYPE: Cast Iron, 2 Vane, Closed w/ Vanes on Back Side
  • IMPELLER DIAMETER: Ø11"
  • CORD LENGTH: 25'
  • CORD SIZE: 2/3 Type: G
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
  • CONTROL BOX REQUIRED

Barmesa 6BSE-LDS Series Submersible Non-Clog Sewage Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa 6BSE-LDS Series Submersible Non-Clog Sewage Pump Product Resources


Download Barmesa 6BSE-LDS Series Non-Clog Sewage Pump Catalog Sheet

Download Barmesa 6BSE-LDS Series Non-Clog Sewage Pump Manual

Download Barmesa 6BSE-LDS Series Non-Clog Sewage Pump Specifications
