Barmesa 6BSE30044LDS Submersible Non-Clog Sewage Pump 30 HP 460V 3PH 25' Cord Manual
Barmesa 6BSE30044LDS Submersible Non-Clog Sewage Pump 30 HP 460V 3PH 25' Cord Manual
SKU : BMS62170215
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED SEE SUGGESTED REPLACMENT: Solids Handling 6SWL/6SWM/6SWH

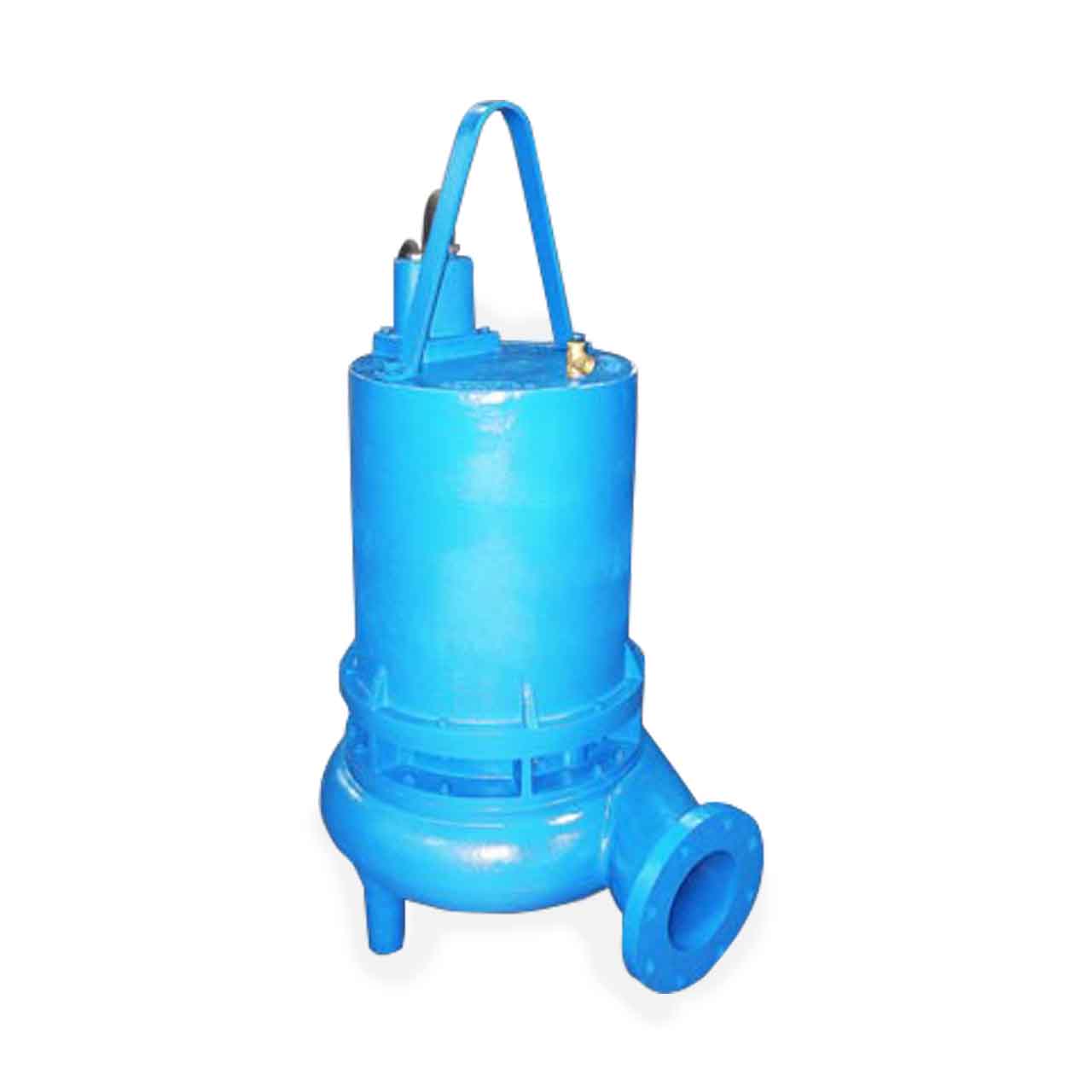

Barmesa 6BSE-LDS Series Submersible Non-Clog Sewage Pump
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa 6BSE-LDS Series Submersible Non-Clog Sewage Pump Features
- Nema B, Three Phase, Oil Filled. Requires Overload Protection to be Included in Control Panel.
- Cast Iron Motor Housing
- Upper Ball Bearings, Single Row, Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Single Row, Oil Lubricated, Designed for Radial and Thrust Loads.
- Double Mechanical Seal
- Seal is Silicone Carbide Outboard Seal, Carbon Ceramic Inboard Seal with Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 6" 125' Flange Horizontal Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 6BSE30044LDS Non-Clog Sewage Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 30 HP
- AMP DRAW (full load): 37.9
- MOTOR TYPE: NEMA B, Oil Filled
- RPM: 1750
- MAXIMUM HEAD: 128'
- MAXIMUM CAPACITY: 2000 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 6.0" 125LB Flange Horizontal
- MAXIMUM SOLIDS HANDLING: 4.0" Spherical Solids
- IMPELLER TYPE: Cast Iron, 1 Vane, Closed w/ Vanes on Back Side
- IMPELLER DIAMETER: Ø11"
- CORD LENGTH: 25'
- CORD SIZE: 2/3 Type: G
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- CONTROL BOX REQUIRED
Barmesa 6BSE-LDS Series Submersible Non-Clog Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 6BSE-LDS Series Submersible Non-Clog Sewage Pump Product Resources
Download Barmesa 6BSE-LDS Series Non-Clog Sewage Pump Catalog Sheet
Download Barmesa 6BSE-LDS Series Non-Clog Sewage Pump Manual
Download Barmesa 6BSE-LDS Series Non-Clog Sewage Pump Specifications
