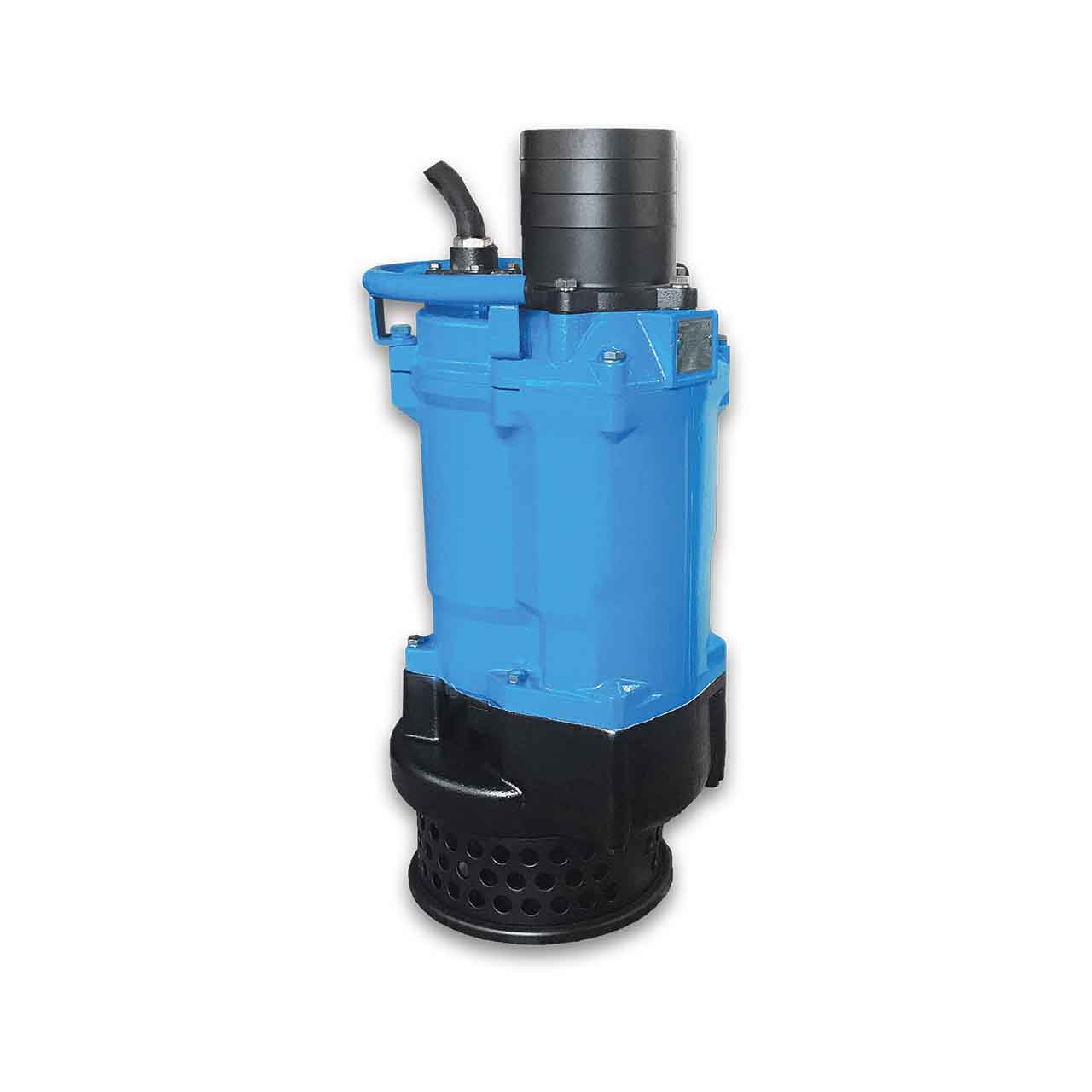

Barmesa 4KTM2004 Submersible Dewatering Pump 20 HP 460V 3PH 50' Cord Manual
Barmesa 4KTM2004 Submersible Dewatering Pump 20 HP 460V 3PH 50' Cord Manual
SKU : BMS4KTM2004
In Stock Quantity:0
:
Brand
:
Regular price
$7,958.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa KTM Series Submersible Dewatering Pump
The KTM Series submersible dewatering pumps are built for muddy water removal and continuous duty. Featuring high chrome steel impellers and pump covers, they offer superior resistance to corrosion. Available in both single and three-phase models, these pumps perform reliably, even when not fully submerged.
Barmesa KTM Series Submersible Dewatering Pump Applications
- Construction Sites
- Portable Utility
- Flood Control
- Open Mining
- Quarries
- Dewatering Muddy Water
Barmesa KTM Series Submersible Dewatering Pump Features
- Three Phase Induction Motor, 460 Volts, 60 Hz, 3450 RPM. Insulation Class F and IP68 Protection Class.
- Cast Iron ASTM A-48 Class 30 Motor Housing
- Double Mechanical, Oil Filled Chamber Seal
- Seal is SiC-SiC/Carbon-SiC. Stainless Steel Hardware
- Impeller is made of High Chrome Alloy, Semi-Open
- 4.0" Vertical for Hose Coupling. Cast Iron ASTM A-48 Class 30
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 4KTM2004 Dewatering Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 20 HP
- AMP DRAW (full load): 24.9
- MOTOR TYPE: Three Phase Induction Motor
- RPM: 3450
- MAXIMUM HEAD: 182'
- MAXIMUM CAPACITY: 380 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0"
- IMPELLER TYPE: High Chrome Alloy, Semi-Open
- CORD LENGTH: 50' Type Neoprene Cord
- BODY CONSTRUCTION: Cast Iron ASTM A-48 Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa KTM Series Submersible Dewatering Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa KTM Series Submersible Dewatering Pump Product Resources
Download Barmesa 4KTM2004 Series Dewatering Pump Catalog Sheet
