Barmesa 4BSV1003DS Submersible Stainless Vortex Sewage Pump 10 HP 230V 3PH 47' Cord Manual
Barmesa 4BSV1003DS Submersible Stainless Vortex Sewage Pump 10 HP 230V 3PH 47' Cord Manual
SKU : BMS72090079
In Stock Quantity:0
:
Brand
:
Regular price
$7,655.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

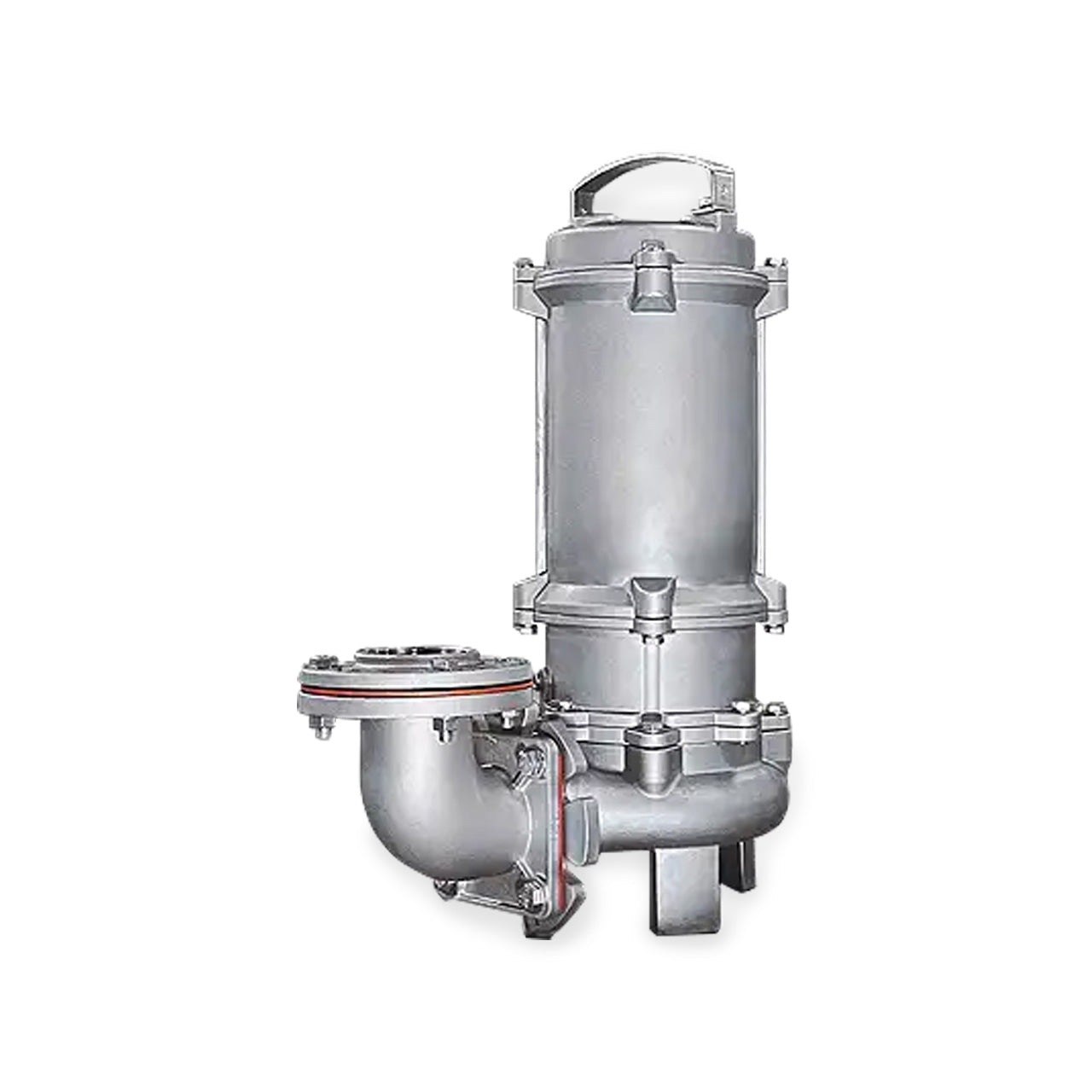

Barmesa BSV Series Submersible Stainless Vortex Sewage Pump
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Features
- For Continuous Duty, Dry Type, Insulation Class B, Protection IP68.
- 316 Stainless Steel Motor Housing
- Ball Bearings are Single Row, Permanently Oil Lubricated for Radial and Thrust Load.
- Double Mechanical Seal, Oil Filled Chamber
- Seal is Carbon-Ceramic Upper Seal, Silicone Carbide Lower Seal, Stainless Steel Spring.
- Impeller is 316 Series Stainless Steel; 8 Vane, Semi-Open Vortex.
- 4.0" NPT Flange, Includes Flanged Elbow at Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 4BSV1003DS Submersible Stainless Vortex Sewage Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 10 HP
- AMP DRAW (full load): 28
- MOTOR TYPE: Continuous Duty, Dry Type
- RPM: 3450
- MAXIMUM HEAD: 126'
- MAXIMUM CAPACITY: 300 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" NPT Elbow, Vertical
- MAXIMUM SOLIDS HANDLING: 1.75" Spherical Solids
- IMPELLER TYPE: 316 Series Stainless Steel, 8 Vane, Semi-Open Vortex
- CORD LENGTH: 47'
- BODY CONSTRUCTION: 316 Series Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Product Resources
Download Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Catalog Sheet
Download Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Manual
