Barmesa 4BSE753DS Submersible Non-Clog Sewage Pump 7.5 HP 200/230V 3PH 40' Cord Manual
Barmesa 4BSE753DS Submersible Non-Clog Sewage Pump 7.5 HP 200/230V 3PH 40' Cord Manual
SKU : BMS62170125
In Stock Quantity:0
:
Brand
:
Regular price
$7,131.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

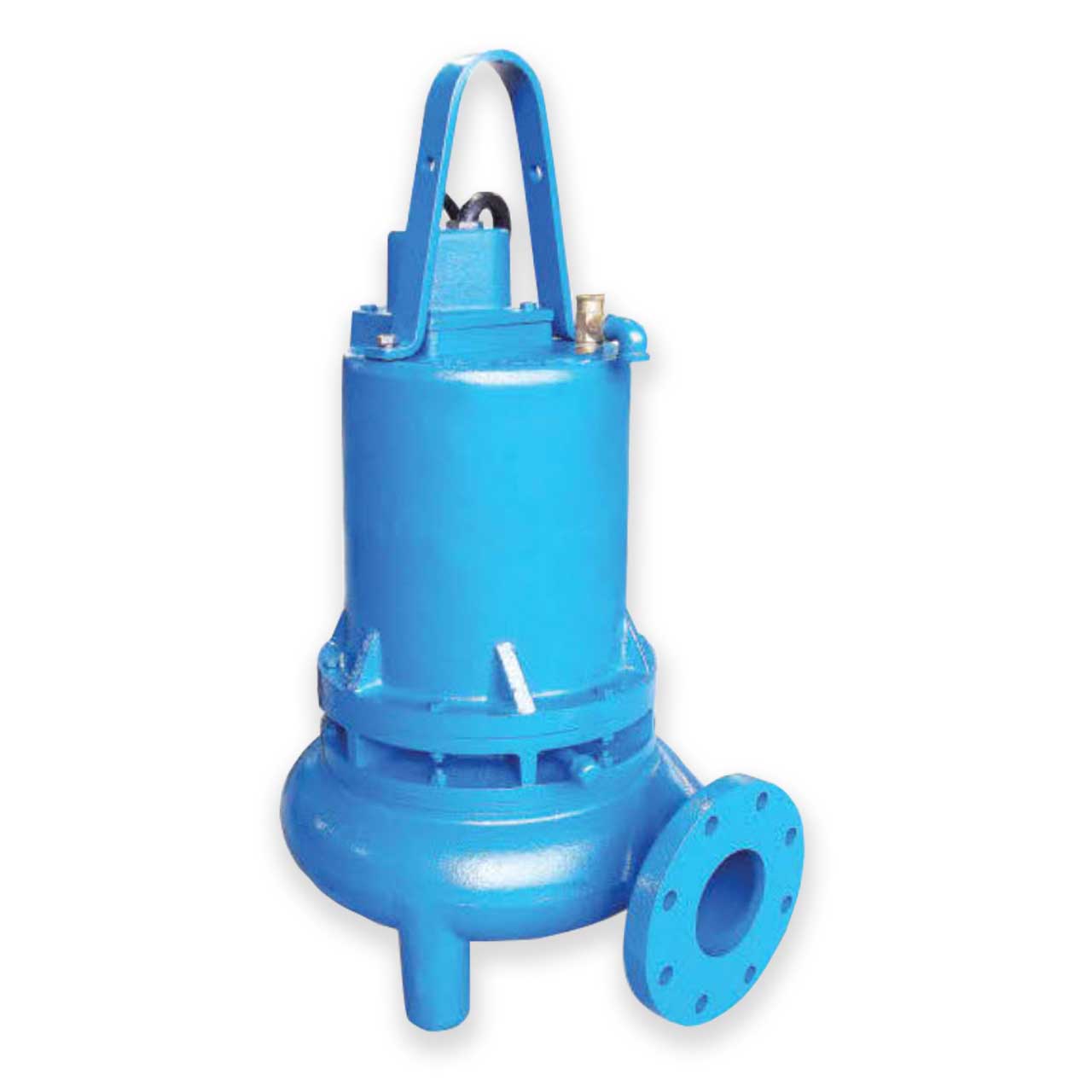

Barmesa 4BSE-DS Series Submersible Non-Clog Sewage Pump
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa 4BSE-DS Series Submersible Non-Clog Sewage Pump Features
- NEMA B, Three Phase, Oil Filled. Requires Overload Protection to be Included in Control Panel. Class F Insulation.
- Cast Iron ASTM A-48 Class 30 Motor Housing
- Upper Ball Bearings, Permanently Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Permanently Oil Lubricated, Designed for Radial and Thrust Loads.
- Double Mechanical Seal
- Seal is Silicone Carbide Outboard Seal, Carbon Ceramic Inboard Seal with Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 4" 125' Flange Horizontal Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 4BSE753DS Pump Specifications
- VOLTAGE: 3ø, 200/230V, 60Hz
- HORSEPOWER: 7.5 HP
- AMP DRAW (full load): 23.6
- MOTOR TYPE: NEMA B, Oil Filled
- RPM: 1750
- MAXIMUM HEAD: 58'
- MAXIMUM CAPACITY: 792 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" 125LB Flange Horizontal
- MAXIMUM SOLIDS HANDLING: 3.0" Spherical Solids
- IMPELLER TYPE: Cast Iron, 2 Vane, Open w/ Vanes on Back Side
- IMPELLER DIAMETER: Ø7.75" Standard
- CORD LENGTH: 40'
- CORD SIZE: 10/4 Type: SO
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- CONTROL BOX REQUIRED
Barmesa 4BSE-DS Series Submersible Non-Clog Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 4BSE-DS Series Submersible Non-Clog Sewage Pump Product Resources
Download Barmesa 4BSE-DS Series Catalog Sheet
