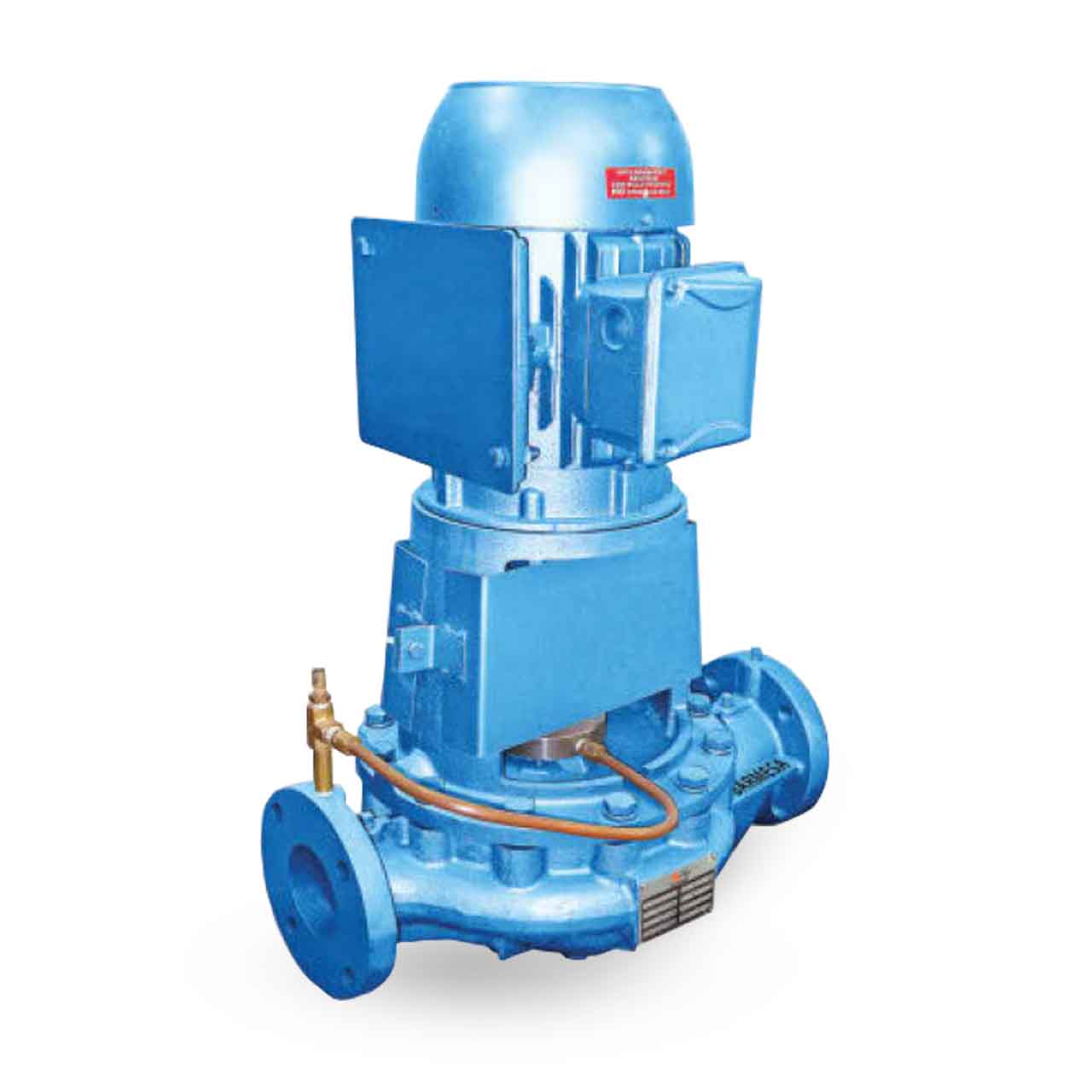

Barmesa 3X3X10 Split Coupled Vertical In-Line Pump 1.0 HP 3PH

Barmesa 3X3X10 Split Coupled Vertical In-Line Pump 1.0 HP 3PH

Usually ships within 2 days

SKU : BMS60400233

In Stock Quantity:0

:
Brand : Barmesa Pumps
$4,780.50 USD
Shipping calculated at checkout.

Description

Barmesa 3X3X10 Split Coupled Vertical In-Line Pump

The BVL Vertical In-Line Pump Series is a versatile and cost-effective pumping solution. The BVL Series does not require field alignment or a foundation. The pump is supported by the pipes, thus avoiding misalignment. Plus the vertical design takes up to three times less space than a horizontal split case pump installation. The BVL pumps are engineered  with a dynamically balanced impeller to ensure silent operation and require minimum maintenance time.

Barmesa 3X3X10 Split Coupled Vertical In-Line Pump Typical Applications

  • Air Conditioning
  • Condensed Water
  • Chilled Water
  • Service Water

Barmesa 3X3X10 Split Coupled Vertical In-Line Pump Features and Benefits

  • Pumps do not Require Field Alignment or a Foundation.
  • Space Saving Can Take up to Three Times Less Space Than the Horizontal Split Case Pump.
  • Coupling Allows all Mechanical Seals Components to be Removed for Servicing without Disturbing other Components. Reinstalling it gets the Pump Back to its Original Specifications.
  • Highly Reliable Due to the Rotating Assembly and the Dynamically Balanced Impeller Assuring a Silent Operation
  • Simplifies Pipes Fixing Considerably. The Pump is Supported by the Pipes Avoiding Misalignment.
  • Installation and Servicing Costs are Highly Reduced.
  • Minimum Time Required for Maintenance
  • Servicing can be Done without Disassembling it.
  • Mechanical Seal is Viton Secondary, Carbon Rotating Face and Silicon Carbide Stationary Seat. Stainless Steel Multi-Spring Outside Balanced Type.

Specifications

Barmesa 3X3X10 Split Coupled Vertical In-Line Pump Specifications

  • HORSEPOWER: 1.0 HP
  • PHASE: 3 Ph
  • HERTZ: 60 Hz
  • RPM: 1150 RPM
  • DISCHARGE PIPE SIZE: 3.0" Discharge
  • MAX HEAD: 48.25'
  • MAX FLOW RATE: 247.25 GPM
  • IMPELLER TYPE: Fully Enclosed, Dynamically Balanced
  • FRAME SIZE: 145TC

Barmesa 3X3X10 Split Coupled Vertical In-Line Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa Split Coupled Vertical In-Line Pump Product Resources


Download Barmesa Split Coupled Vertical In-Line Pump Series Brochure

Download Barmesa Split Coupled Vertical In-Line Pump Series Manual
