Barmesa 3KMUD553 Submersible Slurry Pump 5.5 HP 230V 3PH 50' Cord Manual
Barmesa 3KMUD553 Submersible Slurry Pump 5.5 HP 230V 3PH 50' Cord Manual
SKU : BMS70090271
In Stock Quantity:0
:
Brand
:
Regular price
$4,405.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

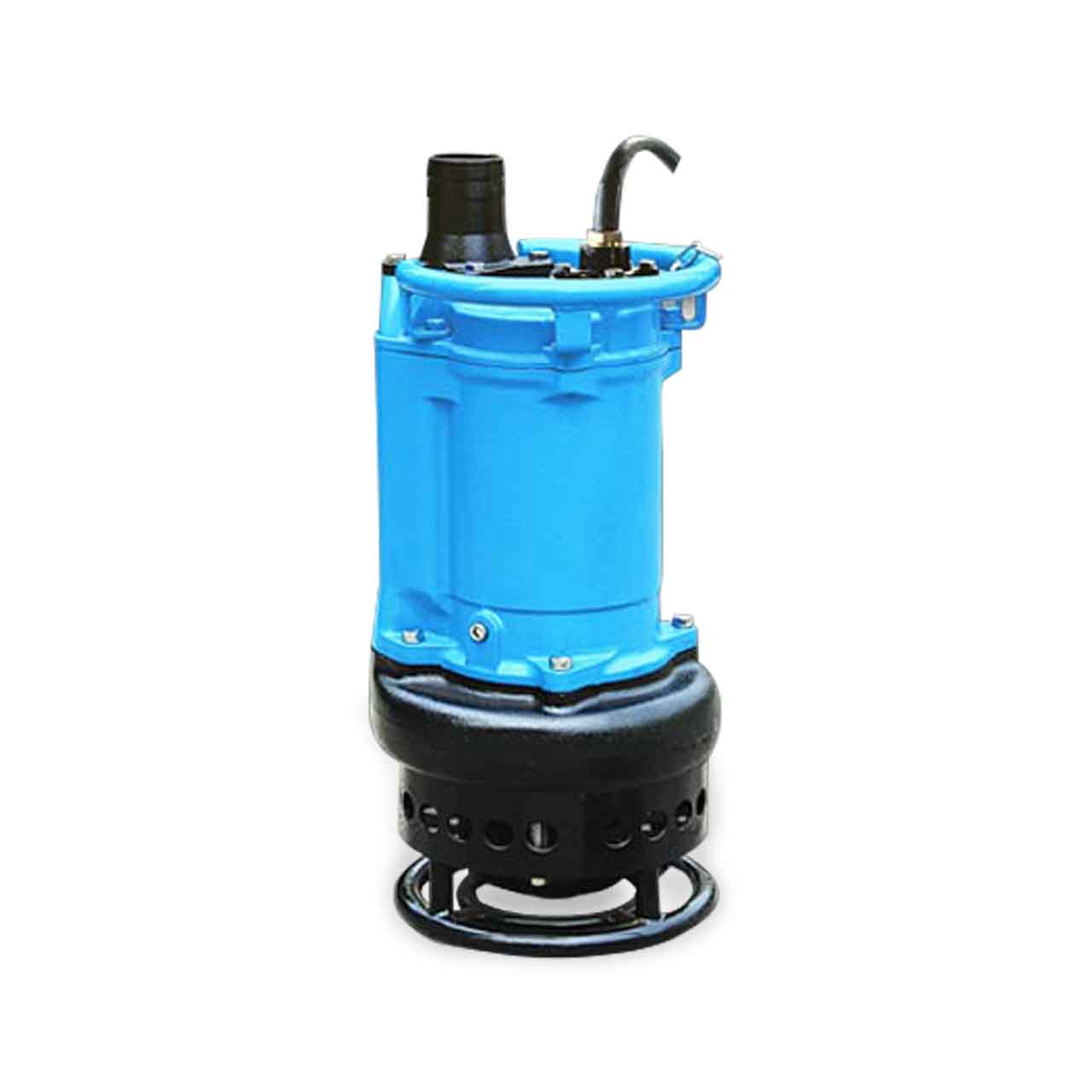

Barmesa KMUD Series Submersible Slurry Pump
Built for extreme slurry applications, the KMUD Series tackles tough, abrasive pumping challenges with ease. Its high nickel chrome agitator and high chrome alloy impeller work in tandem to maintain smooth, efficient operation. Equipped with a robust three-phase induction motor, the KMUD Series delivers reliable power under demanding conditions.
Barmesa KMUD Series Submersible Slurry Pump Applications
- Open Mines
- Construction
- Treatment Plants
- Drilling Mud
- Pulp & Paper Process
- Iron & Steel and More!
Barmesa KMUD Series Submersible Slurry Pump Features
- Three Phase Induction Motor, 230 & 460 Volts, 60 Hz, 1750 RPM. Insulation Class F and IP68 Protection Class.
- Cast Iron ASTM A-48 Class 30 Motor Housing
- Double Mechanical, Oil Filled Chamber Seal
- Seal is SiC-SiC/SiC-SiC. Stainless Steel Hardware
- Impeller is made of High Chrome Alloy, Semi-Open
- 8.0" Vertical for Hose Coupling. Cast Iron ASTM A-48 Class 30
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 3KMUD553 Submersible Slurry Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 5.5 HP
- AMP DRAW (full load): 17.5
- MOTOR TYPE: Three Phase Induction Motor
- RPM: 1750
- MAXIMUM HEAD: 50'
- MAXIMUM CAPACITY: 370 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 3.0"
- IMPELLER TYPE: High Chrome Alloy, Semi-Open
- CORD LENGTH: 50' Type Neoprene Cord
- BODY CONSTRUCTION: Cast Iron ASTM A-48 Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa KMUD Series Submersible Slurry Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa KMUD Series Submersible Slurry Pump Product Resources
Download Barmesa 3KMUD553 Series Submersible Slurry Pump Catalog Sheet
