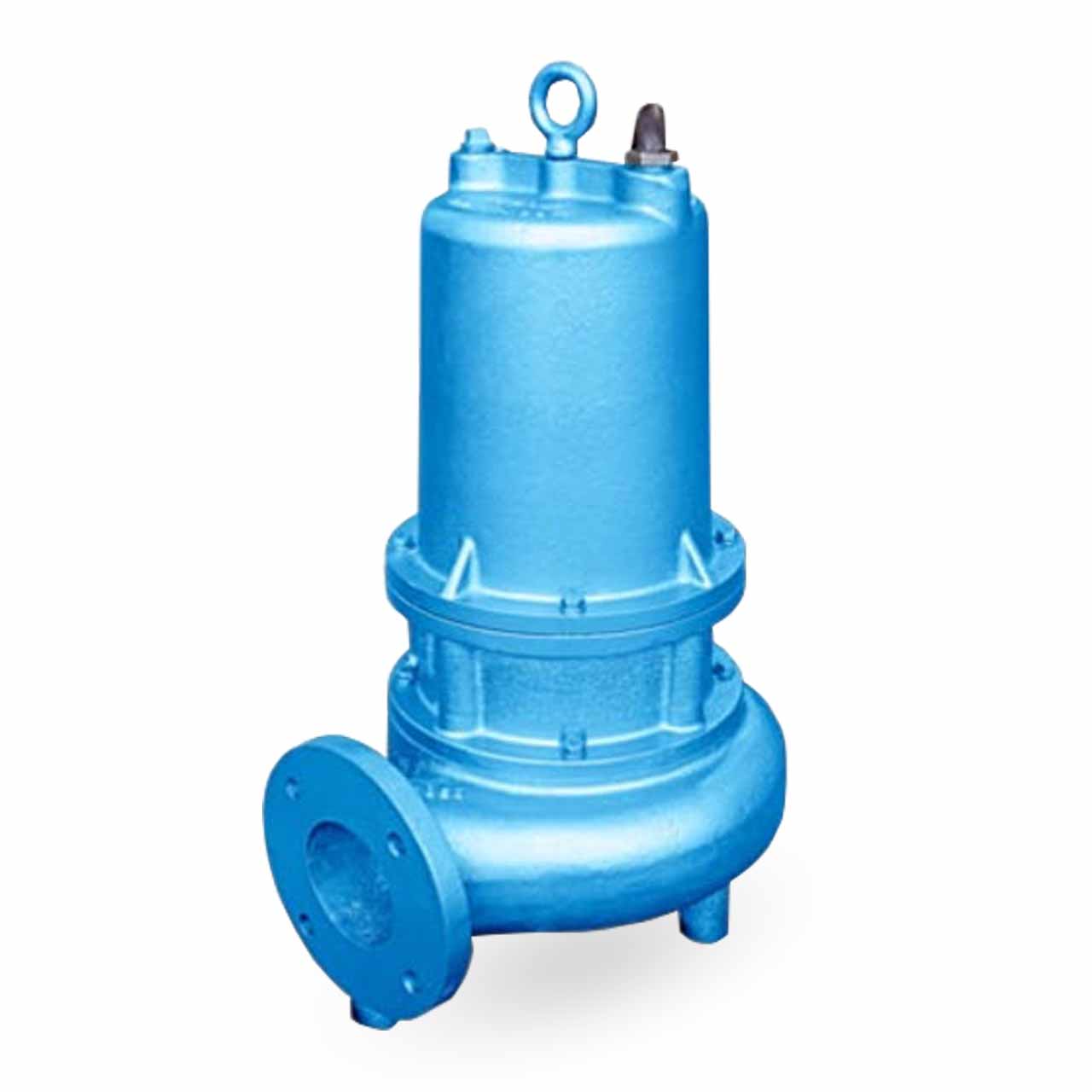

Barmesa 3BWSE204DS Submersible Non-Clog Sewage Pump 2.0 HP 460V 3PH 40' Cord Manual
Barmesa 3BWSE204DS Submersible Non-Clog Sewage Pump 2.0 HP 460V 3PH 40' Cord Manual
SKU : BMS62170162
In Stock Quantity:0
:
Brand
:
Regular price
$4,434.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa 3BWSE-DS Series Submersible Non-Clog Sewage Pump
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa 3BWSE-DS Series Submersible Non-Clog Sewage Pump Features
- NEMA B, Three Phase, Oil Filled, with Class F Insulation. Requires Overload Protection to be Included in Control Panel.
- Cast Iron Motor Housing
- Dual, Mechanical, Oil Filled Chamber Seal
- Seal is Silicone Carbide with Viton Type 01 Outer Seal, Carbon Ceramic with Buna-N Type 01 Inner Seal, with Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 3" 125LB Flange Horizontal Discharge
- Temperature Rating: 104°F (40°C) Continuous, 140°F (60°C) Intermittent Operation
Specifications
Specifications
Barmesa 3BWSE204DS Non-Clog Sewage Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 7.2
- MOTOR TYPE: NEMA B, Oil Filled
- RPM: 1750
- MAXIMUM HEAD: 47'
- MAXIMUM CAPACITY: 380 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 3.0" 125LB Flange Horizontal
- MAXIMUM SOLIDS HANDLING: 2.5" Spherical Solids
- IMPELLER TYPE: Cast Iron, 2 Vane, Semi-Open w/ Vanes on Back Side
- CORD LENGTH: 25'
- CORD SIZE: 14/4 Type: STWO
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- CONTROL BOX REQUIRED
Barmesa 3BWSE-DS Series Submersible Non-Clog Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 3BWSE-DS Series Submersible Non-Clog Sewage Pump Product Resources
Download Barmesa 3BWSE-DS Series Non-Clog Sewage Pump Catalog Sheet
Download Barmesa 3BWSE-DS Series Non-Clog Sewage Pump Installation Manual
