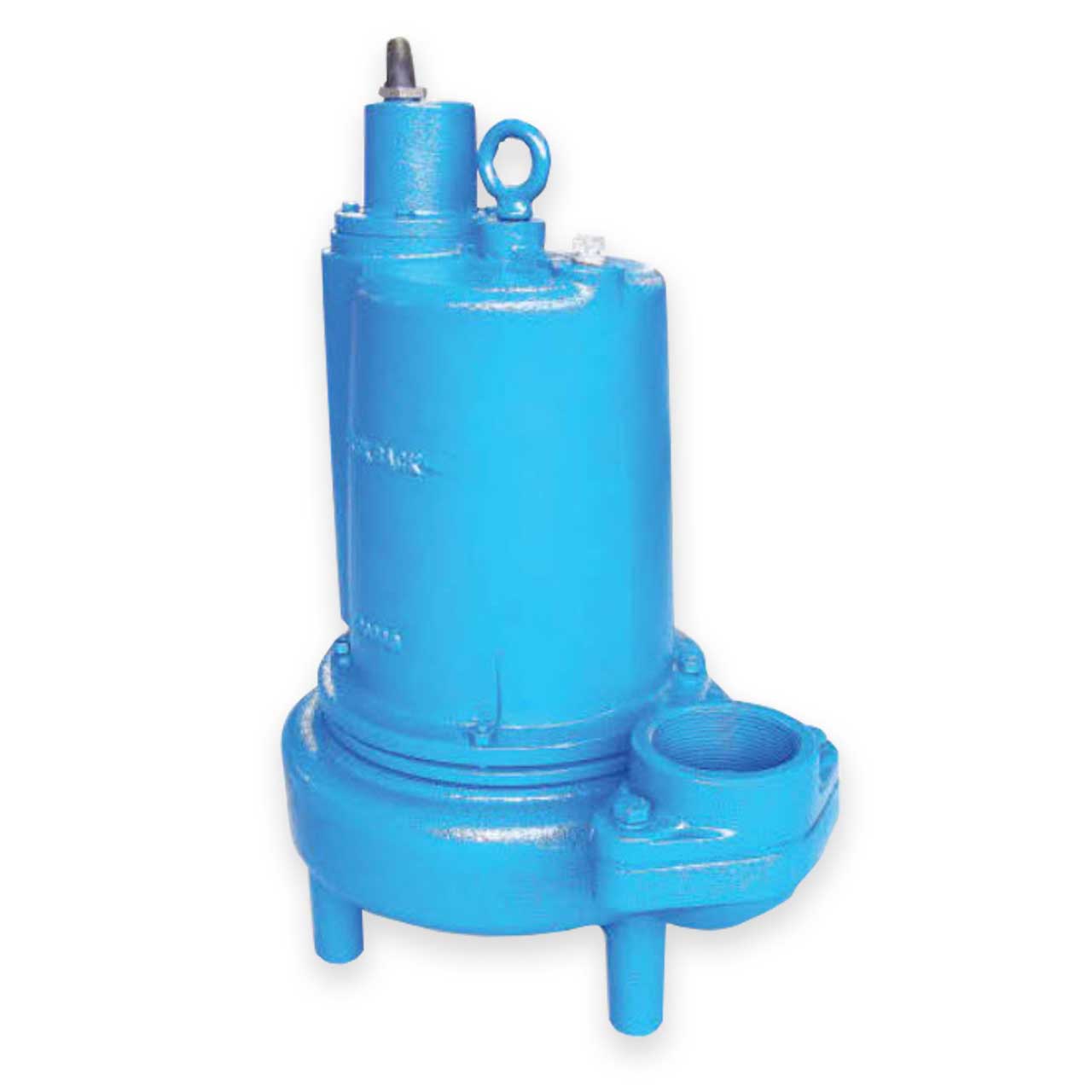

Barmesa 3BSE304SS Submersible Non-Clog Sewage Pump 3.0 HP 460V 3PH 25' Cord Manual
Barmesa 3BSE304SS Submersible Non-Clog Sewage Pump 3.0 HP 460V 3PH 25' Cord Manual
SKU : BMS62170018
In Stock Quantity:0
:
Brand
:
Regular price
$3,912.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa 3BSE-SS Series Non-Clog Sewage Pump Description
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa 3BSE-SS Series Non-Clog Sewage Pump Features
- Three Phase, Oil Filled, Requires Overload Protection to be Included in Control Panel.
- Cast Iron Motor Housing
- Upper Ball Bearings, Permanently Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Permanently Oil Lubricated, Designed for Radial and Thrust Loads.
- Inboard Single Mechanical Seal
- Seal is Silicone Carbide Stationary with Stainless Steel Hardware.
- Impeller is made of Cast Iron ASTM A-48 Class 30
- 3" NPT Female Vertical Bolt on Flange Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 3BSE303SS Non-Clog Sewage Pump Specifications
- VOLTAGE: 1ø, 460V, 60Hz
- HORSEPOWER: 3.0 HP
- AMP DRAW (full load): 9
- MOTOR TYPE: NEMA B, Oil Filled
- RPM: 1750
- MAXIMUM HEAD: 65'
- MAXIMUM CAPACITY: 340 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 3.0" NPT
- MAXIMUM SOLIDS HANDLING: 2.5" Spherical Solids
- IMPELLER TYPE: Cast Iron, 2 Vane, Open w/ Vanes on Back Side
- IMPELLER DIAMETER: Ø7.5" Standard
- CORD LENGTH: 25'
- CORD SIZE: 10/4 Type: SJO
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- CONTROL BOX REQUIRED
Barmesa 3BSE-SS Series Non-Clog Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 3BSE-SS Series Non-Clog Sewage Pump Product Resources
Download Barmesa 3BSE-SS Series Non-Clog Sewage Pump Catalog Sheet
Download Barmesa 3BSE-SS Series Non-Clog Sewage Pump Manual
Download Barmesa 3BSE-SS Series Non-Clog Sewage Pump Specifications
