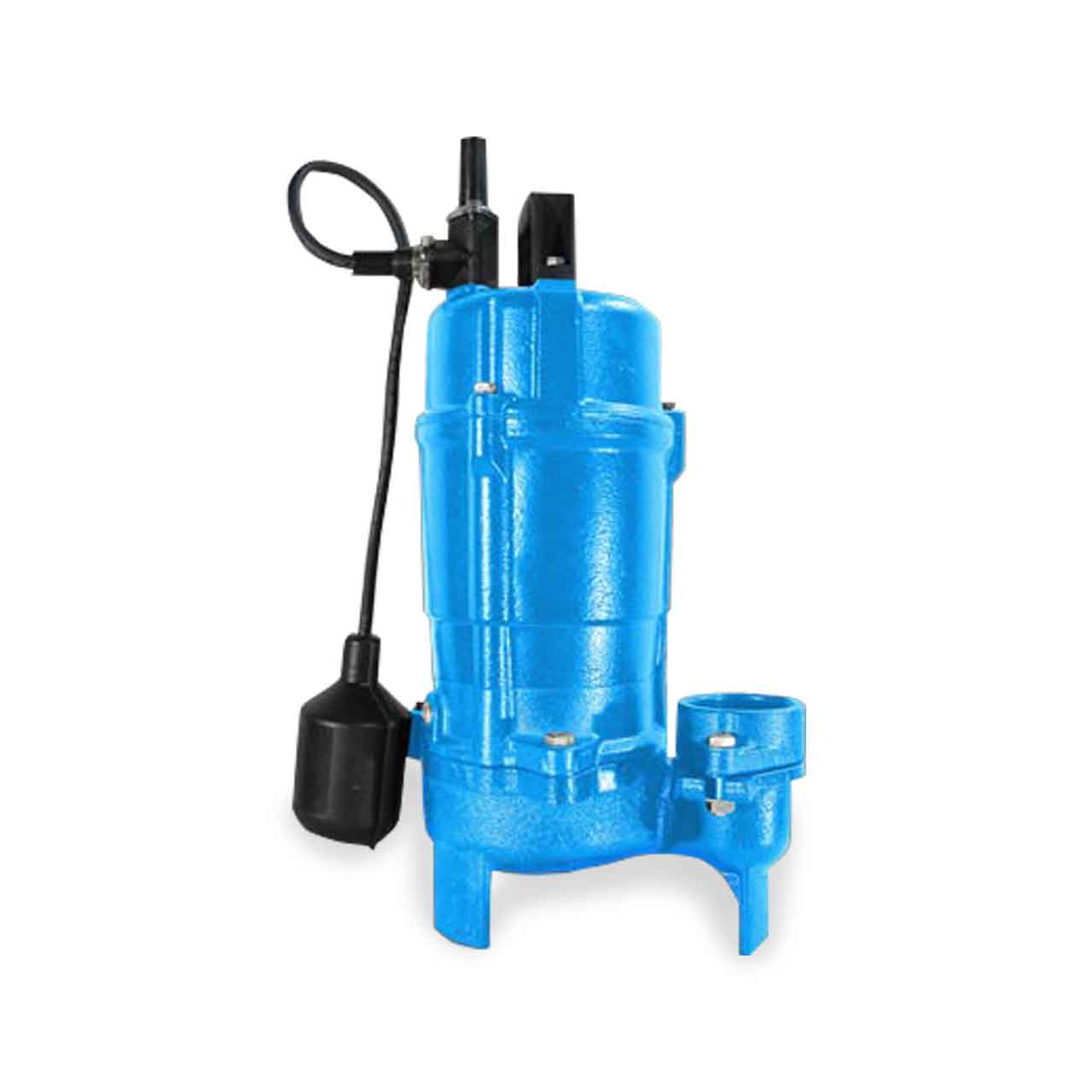

Barmesa SVEN Series Submersible Effluent Pump
Designed to efficiently remove water from enclosed spaces like sump pits, basements, and utility areas, these pumps prevent flooding and water damage by swiftly pumping out accumulated water. Widely used in residential, commercial and industrial settings, they aid in maintaining dry and safe environments while facilitating drainage in diverse situations.
Barmesa SVEN Series Submersible Effluent Pump Features
- Dry Type Submersible Motor, 1 & 3 Phase, 115 & 230 Volt, 60 Hz, 3450 RPM. Insulation Class B and IP68 Protection Class.
- Cast Iron ASTM-A, Class 30 Pump Body
- Ball Bearings are Single Row, Permanently Oil Lubricated for 60,000 Hours of Work.
- Double Mechanical Seal, Oil Filled Chamber.
- Seal is Carbon-Ceramic Upper Part and Silicone Carbide Lower Part with Stainless Steel Hardware
- Impeller is 8-Vane, Semi-Open, Vortex and made of Hytrel® Thermoplastic Elastomer.
- 2" NPT Vertical Discharge, Cast Iron ASTM A-48, Class 20. Adapter Included.
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 2SVEN-103 Submersible Effluent Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 4
- MOTOR TYPE: Dry Type Submersible w/ Thermal Protector
- RPM: 3450
- MAXIMUM HEAD: 51'
- MAXIMUM CAPACITY: 95 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING: 1.37" Spherical Solids
- IMPELLER TYPE: Hytrel Thermoplastic Elastomer, 8 Vane Vortex, Semi-Open Vortex
- CORD LENGTH: 20'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barmesa SVEN Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa SVEN Series Submersible Effluent Pump Product Resources
Download Barmesa SVEN Series Submersible Effluent Pump Catalog Sheet
Download Barmesa SVEN Series Submersible Effluent Pump Manual
