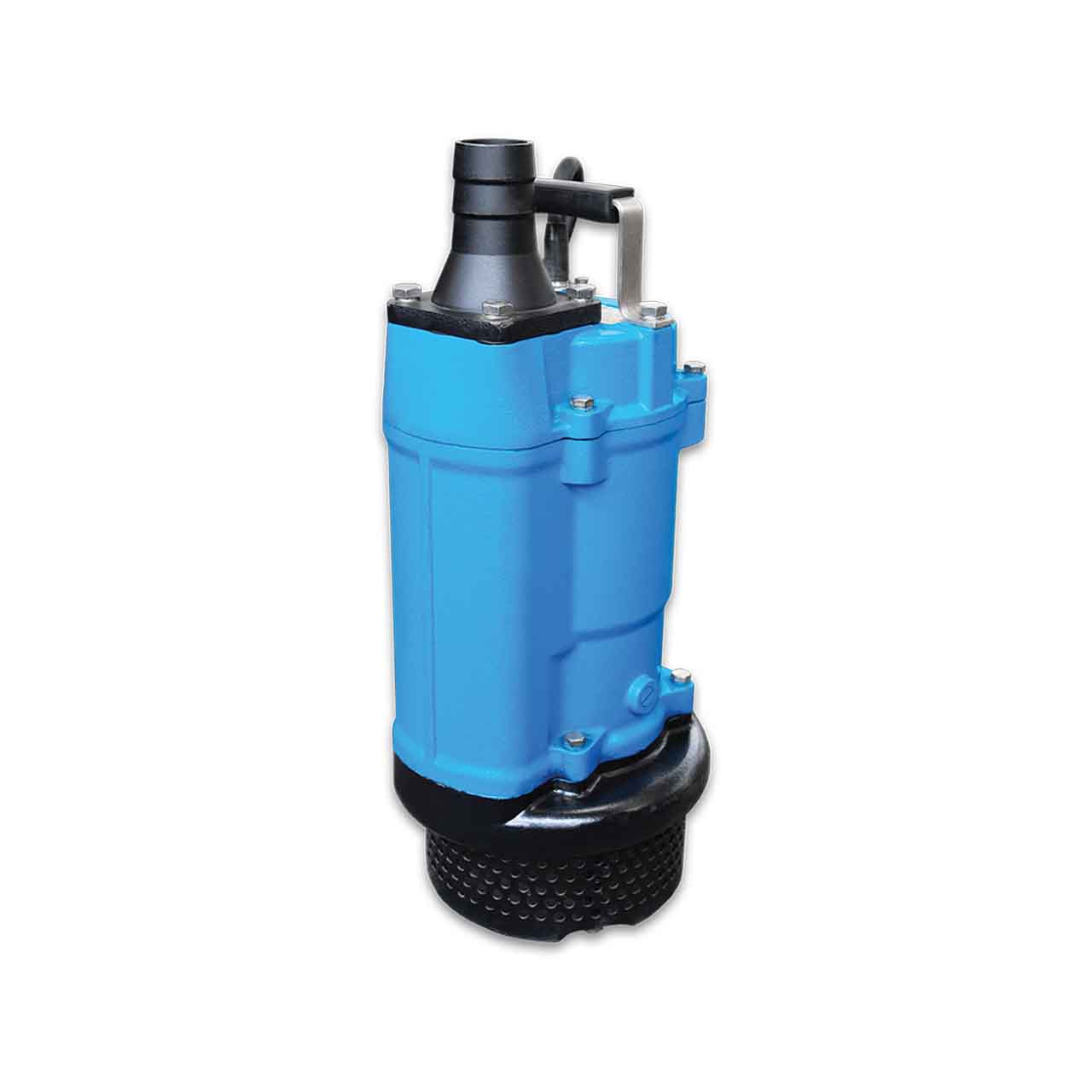

Barmesa 2KTM304 Submersible Dewatering Pump 3.0 HP 460V 3PH 50' Cord Manual

Barmesa 2KTM304 Submersible Dewatering Pump 3.0 HP 460V 3PH 50' Cord Manual

Usually ships within 2 days

SKU : BMS2KTM304

In Stock Quantity:0

:
Brand : Barmesa Pumps
$1,984.50 USD
Shipping calculated at checkout.

Description

Barmesa KTM Series Submersible Dewatering Pump

The KTM Series submersible dewatering pumps are built for muddy water removal and continuous duty. Featuring high chrome steel impellers and pump covers, they offer superior resistance to corrosion. Available in both single and three-phase models, these pumps perform reliably, even when not fully submerged.

Barmesa KTM Series Submersible Dewatering Pump Applications

  • Construction Sites
  • Portable Utility
  • Flood Control
  • Open Mining
  • Quarries
  • Dewatering Muddy Water

Barmesa KTM Series Submersible Dewatering Pump Features

  • Three Phase Induction Motor, 460 Volts, 60 Hz, 3450 RPM. Insulation Class F and IP68 Protection Class.
  • Cast Iron ASTM A-48 Class 30 Motor Housing
  • Double Mechanical, Oil Filled Chamber Seal
  • Seal is SiC-SiC/Carbon-SiC. Stainless Steel Hardware
  • Impeller is made of High Chrome Alloy, Semi-Open
  • 4.0" Vertical for Hose Coupling. Cast Iron ASTM A-48 Class 30
  • Temperature Rating: 104°F (40°C)

Specifications

Barmesa 2KTM304 Submersible Dewatering Pump Specifications

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 3.0 HP
  • AMP DRAW (full load): 4.1
  • MOTOR TYPE: Three Phase Induction Motor
  • RPM: 3450
  • MAXIMUM HEAD: 92'
  • MAXIMUM CAPACITY: 135 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 2.0"
  • IMPELLER TYPE: High Chrome Alloy, Semi-Open
  • CORD LENGTH: 50' Type Neoprene Cord
  • BODY CONSTRUCTION: Cast Iron ASTM A-48 Class 30
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)

Barmesa KTM Series Submersible Dewatering Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa KTM Series Submersible Dewatering Pump Product Resources


Download Barmesa 2KTM303/304 Series Submersible Dewatering Pump Catalog Sheet

Download Barmesa Submersible Dewatering Pump Brochure

Download Barmesa KTM Series Submersible Dewatering Pump Manual
