Barmesa 2KLEIN-203 Submersible Stainless Dewatering Pump 2.0 HP 230V 3PH 32' Cord Manual
Barmesa 2KLEIN-203 Submersible Stainless Dewatering Pump 2.0 HP 230V 3PH 32' Cord Manual
SKU : BMS70090127
In Stock Quantity:0
:
Brand
:
Regular price
$2,099.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

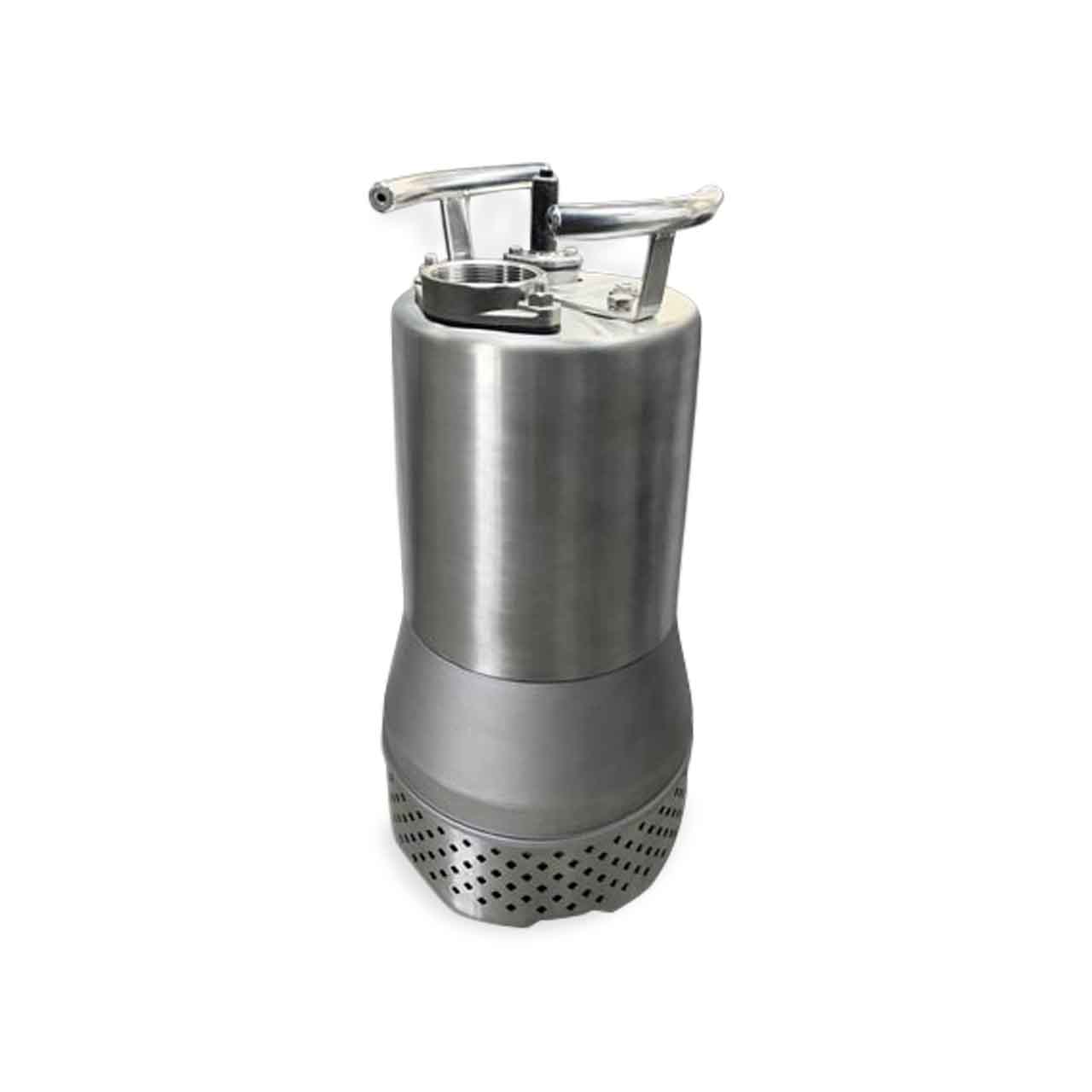

Barmesa Klein Series Submersible Stainless Dewatering Pump
Submersible stainless steel pump for dewatering, ideal for site drainage, mining, tunneling, public works, floods, portable utility and more. Suitable for light chemical liquids in drainage and general pumping applications.
- High Resistance to Abrasive Liquids
- Lost-Wax Casting AISI 304
- Compact & Lightweight Design
- Efficient Circumferential Cooling for Continuous Duty
Barmesa Klein Series Submersible Stainless Dewatering Pump Features
- Dry Type Submersible Motor in 1 & 3 Phase. Insulation Class B and IP68 Protection Class.
- 304 AISI Stainless Steel Motor Housing
- Dual Mechanical, Oil Filled Chamber Seal
- Seal is Upper Part is Carbon-Ceramic and Lower Part is Silicon Carbide. Stainless Steel Hardware
- Impeller is made of 304 AISI Stainless Steel, 8- Vane, Semi-Open
- 2.0" NPT Female, Vertical Bolt on Flange. Lost Wax Casting 304 AISI Stainless Steel
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 2KLEIN-203 Submersible Stainless Dewatering Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 8
- MOTOR TYPE: Dry Type Submersible Motor
- RPM: 3450
- MAXIMUM HEAD: 67'
- MAXIMUM CAPACITY: 139 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0"
- MAXIMUM SOLIDS HANDLING SIZE: 0.23"
- IMPELLER TYPE: 304 AISI Stainless Steel, 8 Vane, Semi-Open
- CORD LENGTH: 32' Type Neoprene Cord
- BODY CONSTRUCTION: 304 AISI Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa Klein Series Submersible Stainless Dewatering Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa Klein Series Submersible Stainless Dewatering Pump Resources
Download Barmesa KLEIN Series Submersible Stainless Dewatering Pump Catalog Sheet
Download Barmesa Submersible Dewatering Pump Brochure
Download Barmesa KLEIN Series Submersible Stainless Steel Dewatering Pump Manual
