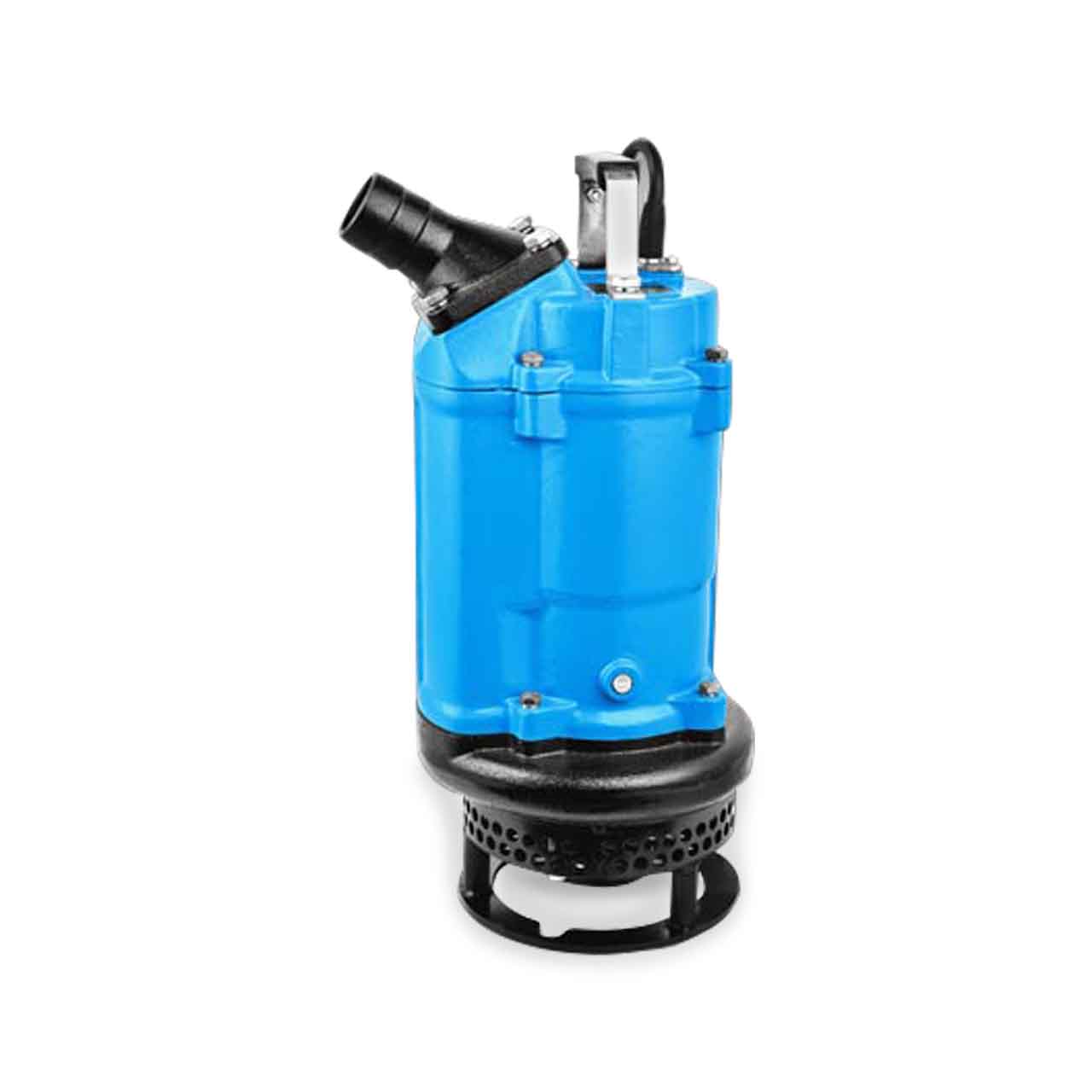

Barmesa 2KAG304 Submersible Light Slurry Pump 3.0 HP 460V 3PH 50' Cord Manual
Barmesa 2KAG304 Submersible Light Slurry Pump 3.0 HP 460V 3PH 50' Cord Manual
SKU : BMS2KAG304
In Stock Quantity:0
:
Brand
:
Regular price
$1,601.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa KAG Series Submersible Light Slurry Pump
The KAG Series is engineered for demanding abrasive environments. Its high chrome steel impeller and pump cover offer exceptional wear resistance, while the built-in high nickel chrome agitator ensures efficient handling of muddy water with abrasive solids. Available in single and three-phase motor options.
Barmesa KAG Series Submersible Light Slurry Pump Applications
- Construction Sites
- Light Mud
- Effluent Water
- Sewage/Wastewater
Barmesa KAG Series Submersible Light Slurry Pump Features
- Three Phase Induction Motor, 230 & 460 Volts, 60 Hz, 3450 RPM. Insulation Class F and IP68 Protection Class.
- Cast Iron ASTM A-48 Class 30 Motor Housing
- Double Mechanical, Oil Filled Chamber Seal
- Seal is SiC-SiC/Carbon-SiC. Stainless Steel Hardware
- Impeller is made of High Chrome Alloy, Semi-Open
- 4.0" Vertical/Horizontal Hose Coupling. Cast Iron ASTM A-48 Class 30
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 2KAG304 Submersible Light Slurry Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 3.0 HP
- AMP DRAW (full load): 4.1
- MOTOR TYPE: Three Phase Induction Motor
- RPM: 3450
- MAXIMUM HEAD: 90'
- MAXIMUM CAPACITY: 130 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0"
- IMPELLER TYPE: High Chrome Alloy, Semi-Open
- CORD LENGTH: 50' Type Neoprene Cord
- BODY CONSTRUCTION: Cast Iron ASTM A-48 Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa KAG Series Submersible Light Slurry Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa KAG Series Submersible Light Slurry Pump Product Resources
Download Barmesa 2KAG304 Series Submersible Light Slurry Pump Catalog Sheet
Download Barmesa Submersible Dewatering Pump Brochure
Download Barmesa KAG Series Submersible Light Slurry Pump Manual
