Barmesa 2BSV-104DS Submersible Stainless Vortex Sewage Pump 1.0 HP 460V 3PH 33' Cord Manual
Barmesa 2BSV-104DS Submersible Stainless Vortex Sewage Pump 1.0 HP 460V 3PH 33' Cord Manual
SKU : BMS72090065
In Stock Quantity:0
:
Brand
:
Regular price
$1,202.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

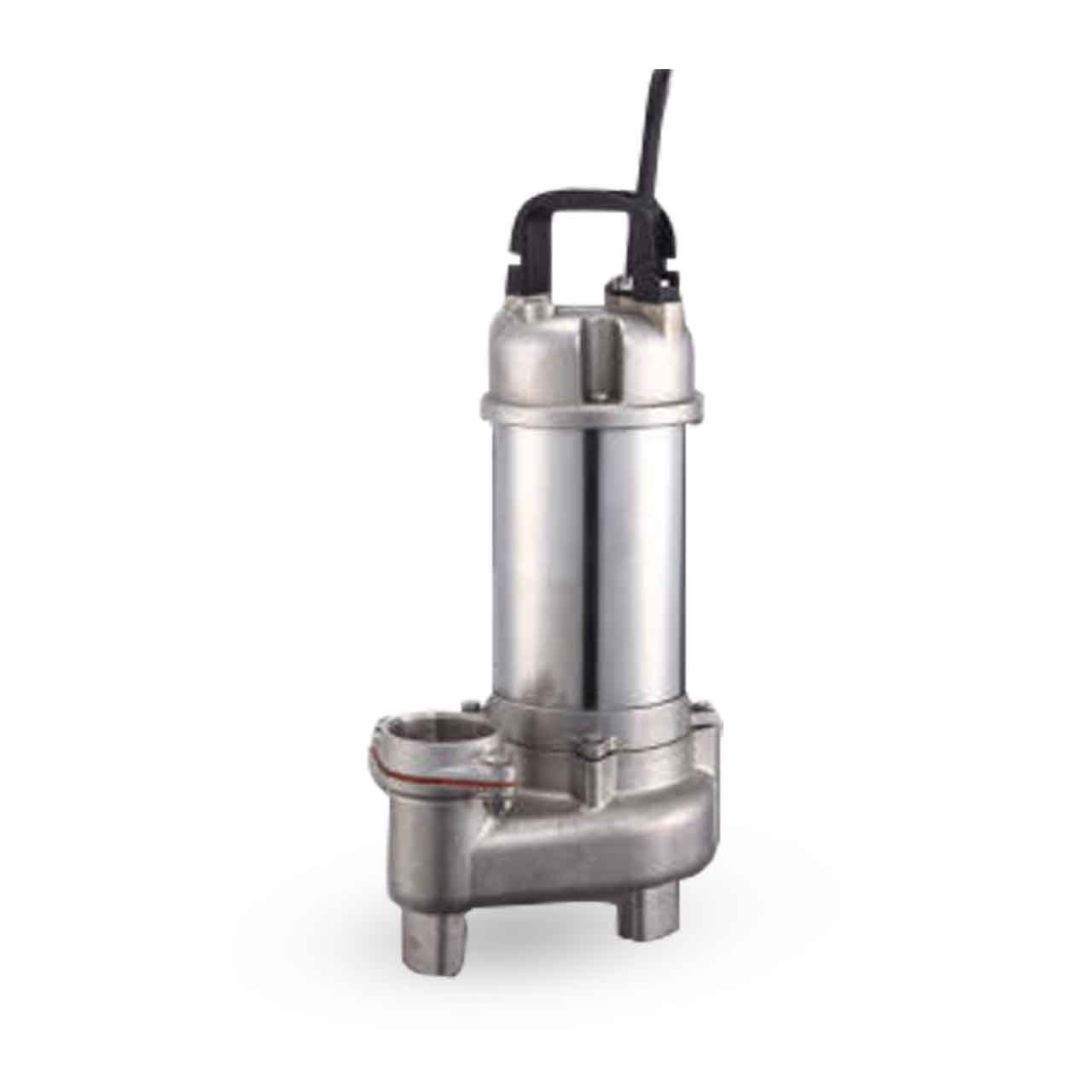

Barmesa BSV Series Submersible Stainless Vortex Sewage Pump
The Barmesa BSV Series submersible pumps feature rugged 316 stainless steel construction for exceptional corrosion resistance, outperforming cast iron in the toughest environments. Designed for continuous duty in demanding applications, they excel in sewage, saltwater, chemically aggressive liquids, and other corrosive conditions. The precision-engineered stainless-steel vortex impeller handles solids up to 2 inches with ease, minimizing clogs and maximizing uptime. From industrial and municipal systems to aquariums and decorative fountains, the BSV series delivers reliable performance wherever durability and versatility are required.
Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Applications
- Wastewater Management
- Sewage Pumping
- Salt Water
- Sewage Treatment
- Ornamental Fountains
- Industrial Facilities
- Commercial Buildings
- Aquariums
Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Features
- For Continuous Duty, Dry Type, Insulation Class B, Protection IP68.
- 316 Stainless Steel Motor Housing
- Ball Bearings are Single Row, Permanently Oil Lubricated for Radial and Thrust Load.
- Double Mechanical Seal, Oil Filled Chamber
- Seal is Carbon-Ceramic Upper Seal, Silicone Carbide Lower Seal, Stainless Steel Spring.
- Impeller is 316 Series Stainless Steel; 8 Vane, Semi-Open Vortex.
- 2.0" NPT Vertical Elbow Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 2BSV-104DS Submersible Stainless Vortex Sewage Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 2
- MOTOR TYPE: Continuous Duty, Dry Type
- RPM: 3450
- MAXIMUM HEAD: 40'
- MAXIMUM CAPACITY: 120 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT Elbow, Vertical
- MAXIMUM SOLIDS HANDLING: 1.5" Spherical Solids
- IMPELLER TYPE: 316 Series Stainless Steel, 8 Vane, Semi-Open Vortex
- CORD LENGTH: 33'
- BODY CONSTRUCTION: 316 Series Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Product Resources
Download Barmesa 2BSV Series Submersible Stainless Vortex Sewage Pump Catalog Sheet
Download Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Manual
