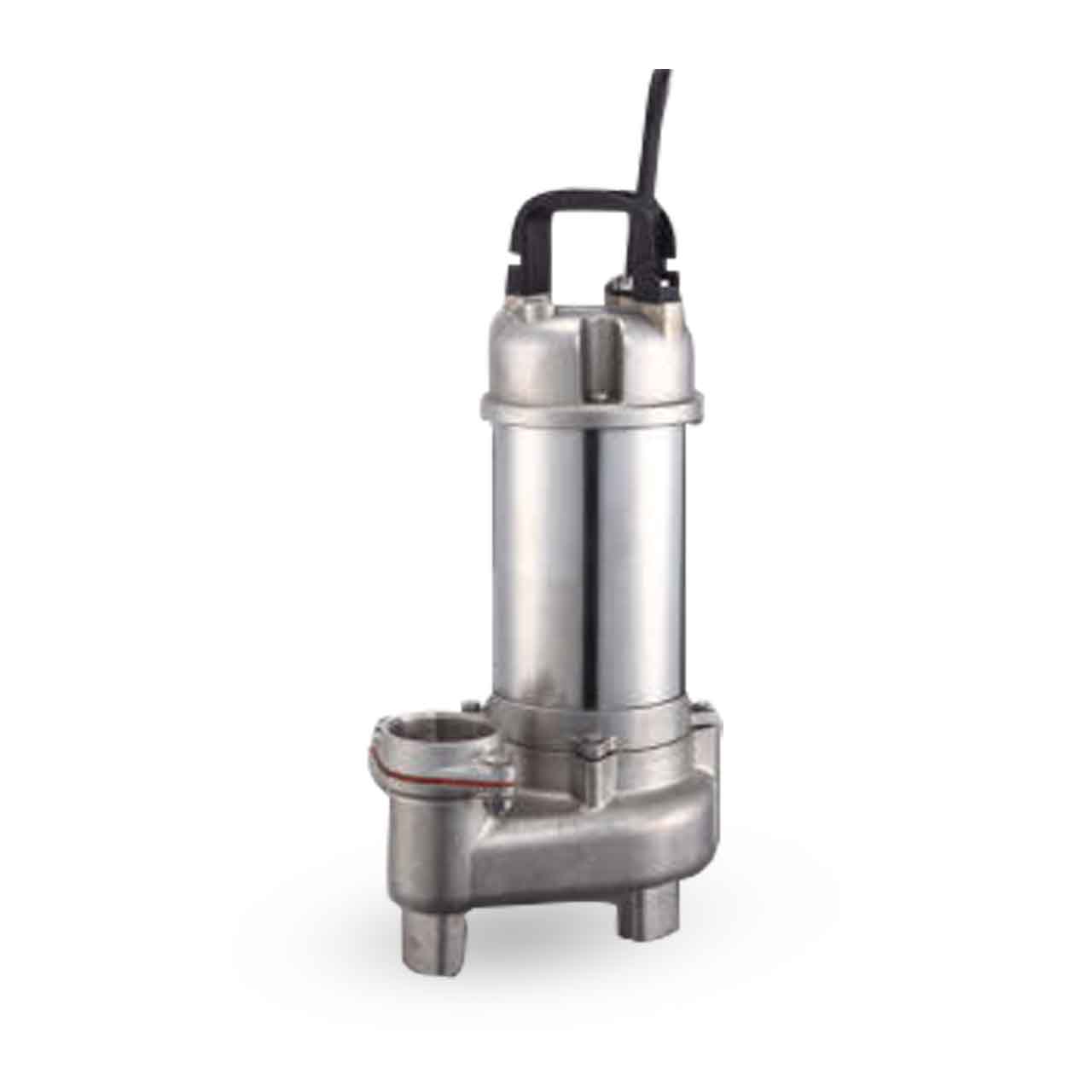

Barmesa 2BSV-051DS Submersible Stainless Vortex Sewage Pump 0.5 HP 115V 1PH 33' Cord Manual

Barmesa 2BSV-051DS Submersible Stainless Vortex Sewage Pump 0.5 HP 115V 1PH 33' Cord Manual

Usually ships within 2 days

SKU : BMS2BSV051DS

In Stock Quantity:0

:
Brand : Barmesa Pumps
$982.50 USD
Shipping calculated at checkout.

Description

Barmesa BSV Series Submersible Stainless Vortex Sewage Pump

The Barmesa BSV Series submersible pumps feature rugged 316 stainless steel construction for exceptional corrosion resistance, outperforming cast iron in the toughest environments. Designed for continuous duty in demanding applications, they excel in sewage, saltwater, chemically aggressive liquids, and other corrosive conditions. The precision-engineered stainless-steel vortex impeller handles solids up to 2 inches with ease, minimizing clogs and maximizing uptime. From industrial and municipal systems to aquariums and decorative fountains, the BSV series delivers reliable performance wherever durability and versatility are required.

Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Applications

  • Wastewater Management
  • Sewage Pumping
  • Salt Water
  • Sewage Treatment
  • Ornamental Fountains
  • Industrial Facilities
  • Commercial Buildings
  • Aquariums

Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Features

  • For Continuous Duty, Dry Type, Insulation Class B, Protection IP68.
  • 316 Stainless Steel Motor Housing
  • Ball Bearings are Single Row, Permanently Oil Lubricated for Radial and Thrust Load.
  • Double Mechanical Seal, Oil Filled Chamber
  • Seal is Carbon-Ceramic Upper Seal, Silicone Carbide Lower Seal, Stainless Steel Spring.
  • Impeller is 316 Series Stainless Steel; 8 Vane, Semi-Open Vortex.
  • 2.0" NPT Vertical Elbow Discharge
  • Temperature Rating: 104°F (40°C)

Specifications

Barmesa 2BSV-051DS Pump Specifications

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 8
  • MOTOR TYPE: Continuous Duty, Dry Type
  • RPM: 3450
  • MAXIMUM HEAD: 28'
  • MAXIMUM CAPACITY: 80 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 2.0" NPT Elbow, Vertical
  • MAXIMUM SOLIDS HANDLING: 1.5" Spherical Solids
  • IMPELLER TYPE: 316 Series Stainless Steel, 8 Vane, Semi-Open Vortex
  • CORD LENGTH: 33'
  • BODY CONSTRUCTION: 316 Series Stainless Steel
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
  • DUTY RATING: Continuous

Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Product Resources


Download Barmesa 2BSV Series Submersible Stainless Vortex Sewage Pump Catalog Sheet

Download Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Manual
