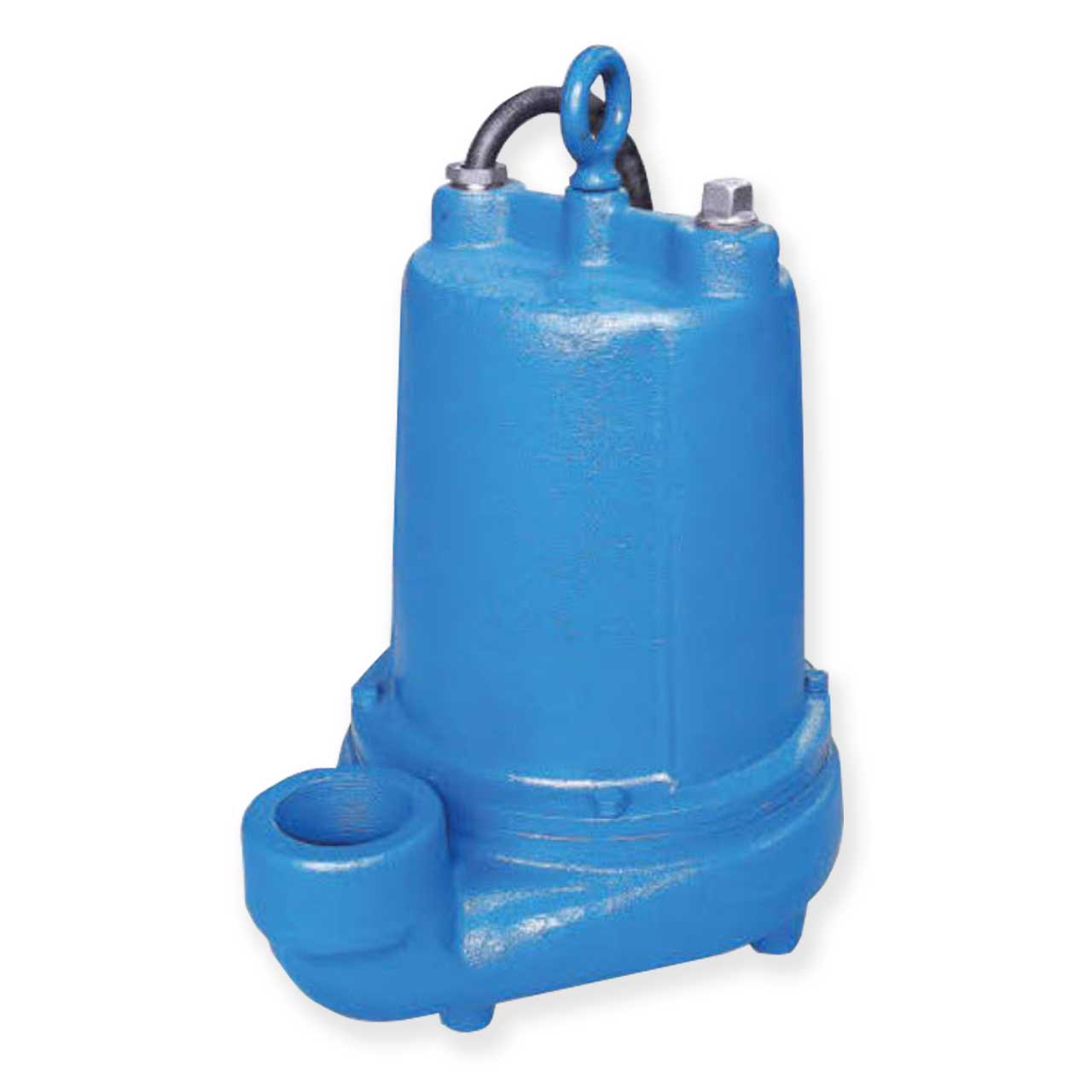

Barmesa 2BEH512SS Submersible Effluent Pump 0.5 HP 115V 1PH 15' Cord Manual
Barmesa 2BEH512SS Submersible Effluent Pump 0.5 HP 115V 1PH 15' Cord Manual
SKU : BMS2BEH512SS
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED: Barmesa Effluent Pumps
Barmesa 2BEH-SS Series Submersible Effluent Pump
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa 2BEH-SS Series Submersible Effluent Pump Features
- NEMA L, Single Phase, Permanent Split Capacitor, Oil Filled, with Overload Protection in Motor.
- Cast Iron Motor Housing
- Upper Ball Bearings, Permanently Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Permanently Oil Lubricated, Designed for Radial and Axial Loads.
- Inboard Single Mechanical Seal
- Seal is Silicone Carbide, Buna-N Elastomer and Stainless Steel Hardware.
- Impeller is made of Bronze 85-5-5-5
- 2" NPT Vertical Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 2BEH512SS Submersible Effluent Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 11
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3500
- MAXIMUM HEAD: 52'
- MAXIMUM CAPACITY: 66 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solids
- IMPELLER TYPE: Bronze, 2 Vane, Open, w/ Vanes on Back Side, Dynamically Balanced
- IMPELLER DIAMETER: 04" Standard
- CORD LENGTH: 15'
- CORD SIZE: 14/3 Type: SJTOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa 2BEH-SS Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 2BEH-SS Series Submersible Effluent Pump Product Resources
Download Barmesa 2BEH-SS Series Submersible Effluent Pump Catalog Sheet
Download Barmesa 2BEH-SS Series Submersible Effluent Pump Manual
