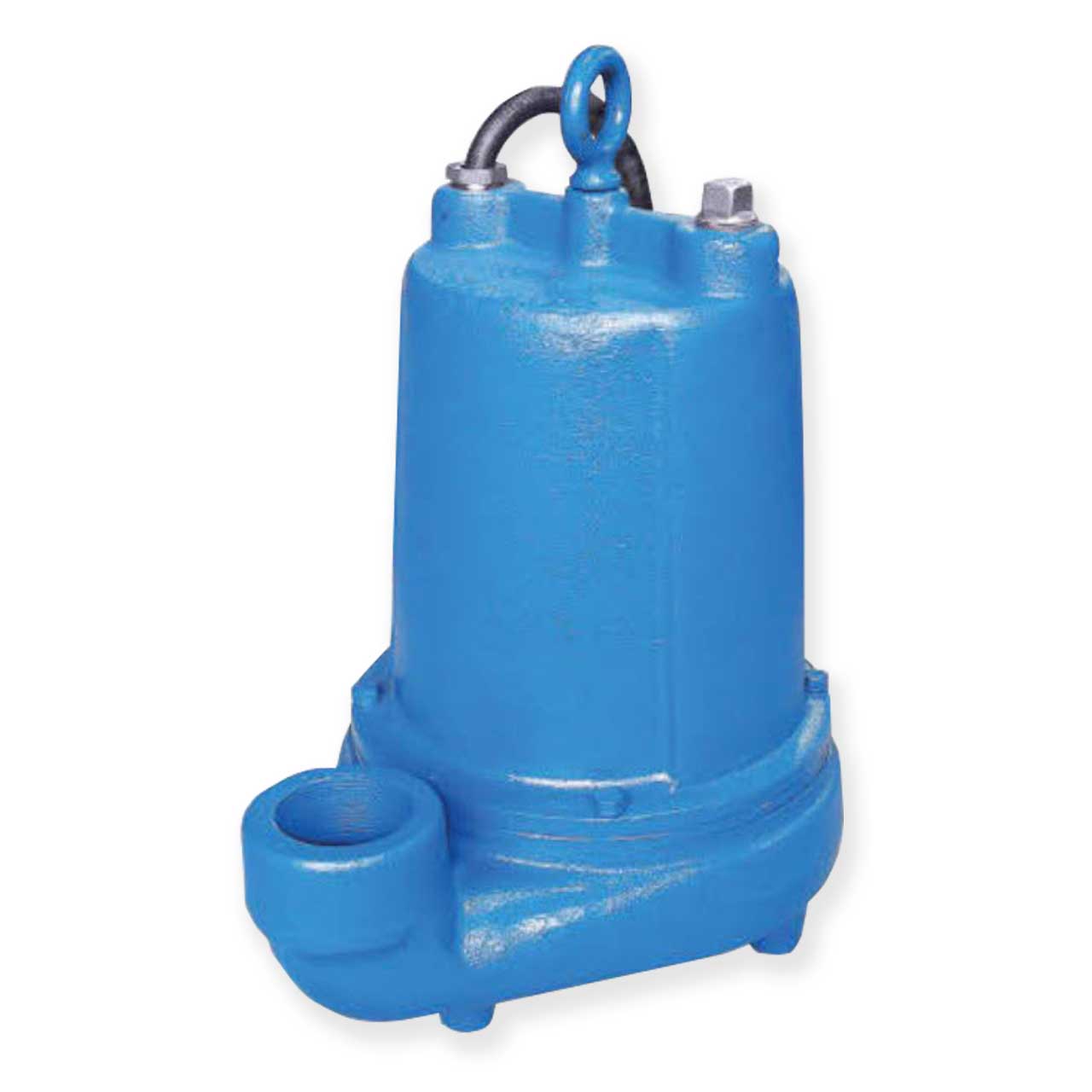

Barmesa 2BEH104SS Submersible Effluent Pump 1.0 HP 460V 3PH 15' Cord Manual

Barmesa 2BEH104SS Submersible Effluent Pump 1.0 HP 460V 3PH 15' Cord Manual

Discontinued or no longer available

SKU : BMS2BEH104SS

In Stock Quantity:0

:
Brand : Barmesa Pumps
Shipping calculated at checkout.

Description

DISCONTINUED: Barmesa Effluent Pumps

Barmesa 2BEH-SS Series Submersible Effluent Pump

Efficiently transferring wastewater from septic tanks to drainage fields or disposal areas, these pumps are adept at handling solids, making them suitable for various residential, commercial, and industrial applications. They play a crucial role in sewage systems, agricultural practices, construction sites and wastewater treatment facilities, ensuring proper disposal and environmental protection.

Barmesa 2BEH-SS Series Submersible Effluent Pump Features

  • NEMA B, Three Phase, Oil Filled, with Overload Protection in Motor.
  • Cast Iron Motor Housing
  • Upper Ball Bearings, Permanently Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Permanently Oil Lubricated, Designed for Radial and Axial Loads.
  • Inboard Single Mechanical Seal
  • Seal is Silicone Carbide, Buna-N Elastomer with Stainless Steel Hardware.
  • Impeller is made of Bronze 85-5-5-5
  • 2" NPT Vertical Discharge
  • Temperature Rating: 104°F (40°C)

Specifications

Barmesa 2BEH104SS Submersible Effluent Pump Specifications

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 1.0 HP
  • AMP DRAW (full load): 2.8
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 3500
  • MAXIMUM HEAD: 80'
  • MAXIMUM CAPACITY: 82 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 2.0" NPT
  • MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solids
  • IMPELLER TYPE: Bronze, 2 Vane, Open, w/ Vanes on Back Side, Dynamically Balanced
  • IMPELLER DIAMETER: 04.62" Standard
  • CORD LENGTH: 15'
  • CORD SIZE: 12/4 Type: SOW
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
  • CONTROL BOX REQUIRED

Barmesa 2BEH-SS Series Submersible Effluent Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa 2BEH-SS Series Submersible Effluent Pump Product Resources


Download Barmesa 2BEH-SS Series Submersible Effluent Pump Catalog Sheet

Download Barmesa 2BEH-SS Series Submersible Effluent Pump Manual
