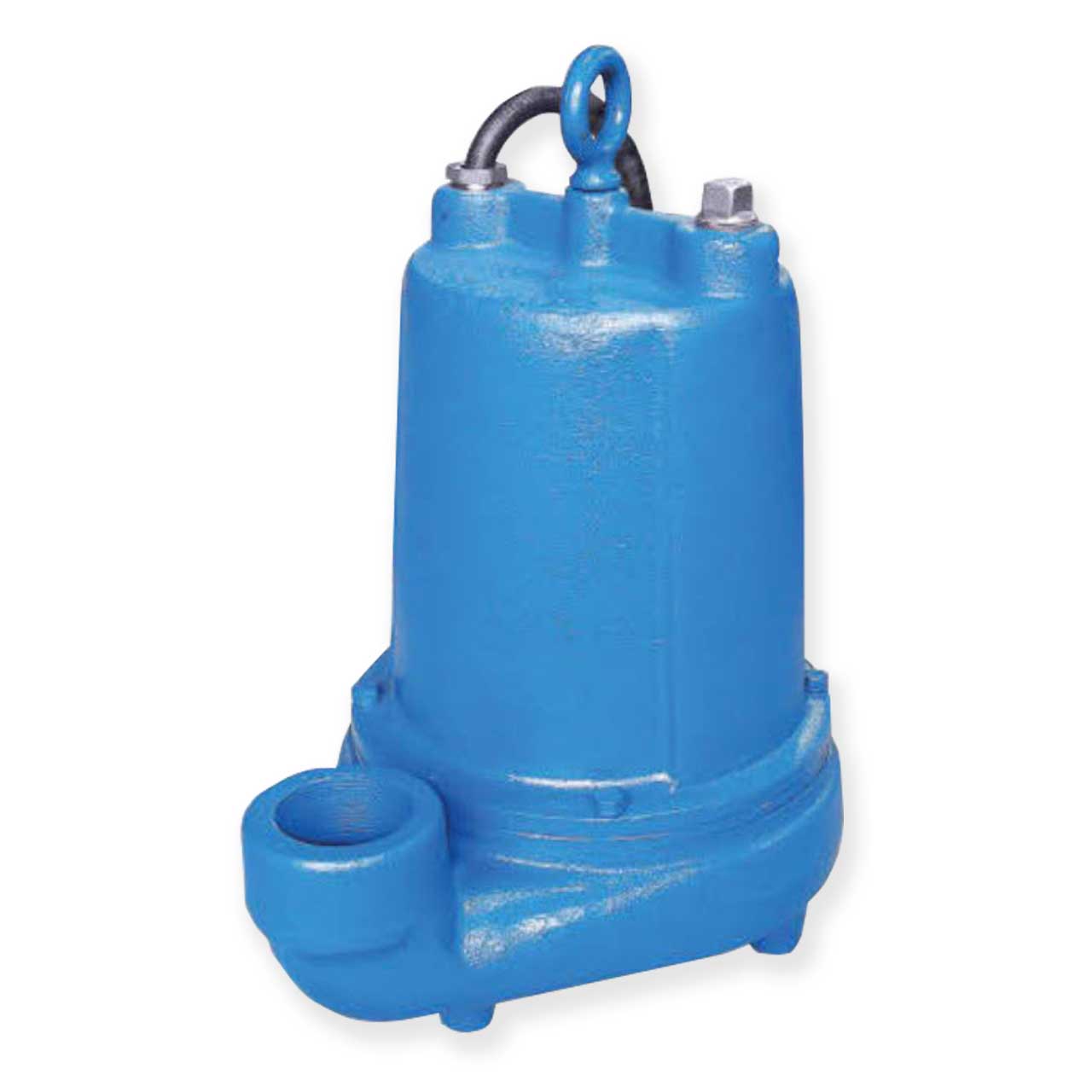

Barmesa 2BEH102SS Submersible Effluent Pump 1.0 HP 230V 1PH 15' Cord Manual
Barmesa 2BEH102SS Submersible Effluent Pump 1.0 HP 230V 1PH 15' Cord Manual
SKU : BMS2BEH102SS
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED: Barmesa Effluent Pumps
Barmesa 2BEH-SS Series Submersible Effluent Pump
Efficiently transferring wastewater from septic tanks to drainage fields or disposal areas, these pumps are adept at handling solids, making them suitable for various residential, commercial, and industrial applications. They play a crucial role in sewage systems, agricultural practices, construction sites and wastewater treatment facilities, ensuring proper disposal and environmental protection.
Barmesa 2BEH-SS Series Submersible Effluent Pump Features
- NEMA L, Single Phase, Permanent Split Capacitor, Oil Filled, with Overload Protection in Motor.
- Cast Iron Motor Housing
- Upper Ball Bearings, Permanently Oil Lubricated, Designed for Radial Load. Lower Ball Bearings, Permanently Oil Lubricated, Designed for Radial and Axial Loads.
- Inboard Single Mechanical Seal
- Seal is Silicone Carbide, Buna-N Elastomer and Stainless Steel Hardware.
- Impeller is made of Bronze 85-5-5-5
- 2" NPT Vertical Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 2BEH102SS Submersible Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 8.2
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3500
- MAXIMUM HEAD: 80'
- MAXIMUM CAPACITY: 82 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solids
- IMPELLER TYPE: Bronze, 2 Vane, Open, w/ Vanes on Back Side, Dynamically Balanced
- IMPELLER DIAMETER: 04.62" Standard
- CORD LENGTH: 15'
- CORD SIZE: 14/3 Type: SJTOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa 2BEH-SS Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 2BEH-SS Series Submersible Effluent Pump Product Resources
Download Barmesa 2BEH-SS Series Submersible Effluent Pump Catalog Sheet
Download Barmesa 2BEH-SS Series Submersible Effluent Pump Manual
