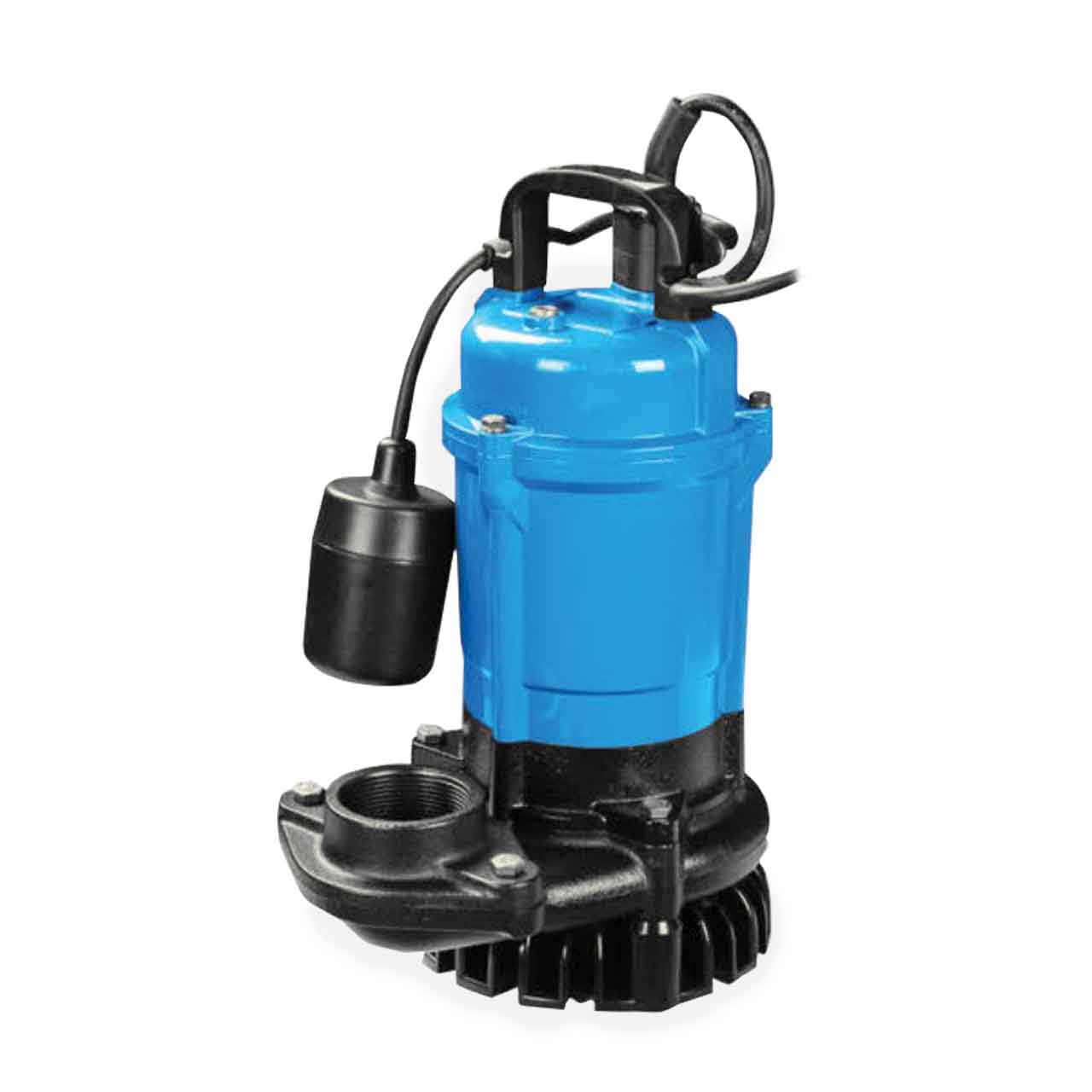

Barmesa 2AHS051A Submersible Dewatering Pump 0.5 HP 115V 1PH 15' Cord Automatic
Barmesa 2AHS051A Submersible Dewatering Pump 0.5 HP 115V 1PH 15' Cord Automatic
SKU : BMS2AHS051A
In Stock Quantity:0
:
Brand
:
Regular price
$415.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa 2AHS Series Submersible Dewatering Pump
A Submersible Pump for dewatering, ideal for use in residential, commercial, industrial dewatering and site drainage, decorative waterfalls and fountains, raw water supply from lakes or rivers, sediment removal from small sumps or basins, portable utility and more.
- High Abrasive Resistance Resin Vortex Impeller
- Double Mechanical Seal/Designed Agitator
- Auto Reset Thermal Protector/Non Air Locking
- Automatic Version for Use in Small Pits
Barmesa 2AHS Series Submersible Dewatering Pump Features
- Dry Type Submersible Motor, Oil Filled. For Continuous Duty, with Thermal Protector in Winding.
- Aluminum Alloy Motor Housing and Cast Iron Pump Body
- Ball Bearings, Single Row, Permanently Oil Lubricated for 60,000 Hours of Work. Designed for Radial and Axial Loads.
- Double Mechanical Seal
- Seal is Carbon-Ceramic Upper Part and Silicone Carbide Lower Part with Stainless Steel Hardware
- Impeller is made of Hytrel® Thermoplastic Elastomer
- 2" NPT Vertical Discharge
- Temperature Rating: 104°F (40°C)
Specifications
Specifications
Barmesa 2AHS051A Submersible Dewatering Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 6
- MOTOR TYPE: Dry Type Submersible w/ Thermal Protector
- RPM: 3500
- MAXIMUM HEAD: 40'
- MAXIMUM CAPACITY: 59 GPM
- SWITCH TYPE: Automatic
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING: 1/4" Spherical Solids
- IMPELLER TYPE: Hytrel Thermoplastic Elastomer, 8 Vane Vortex, Semi-Open Vortex
- CORD LENGTH: 15'
- CORD SIZE: 16 AWG/3C
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barmesa 2AHS Series Submersible Dewatering Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 2AHS Series Submersible Dewatering Pump Product Resources
Download Barmesa 2AHS Series Submersible Dewatering Pump Catalog Sheet
Download Barmesa Submersible Dewatering Pump Brochure
Download Barmesa 2AHS Series Submersible Dewatering Pump Manual
