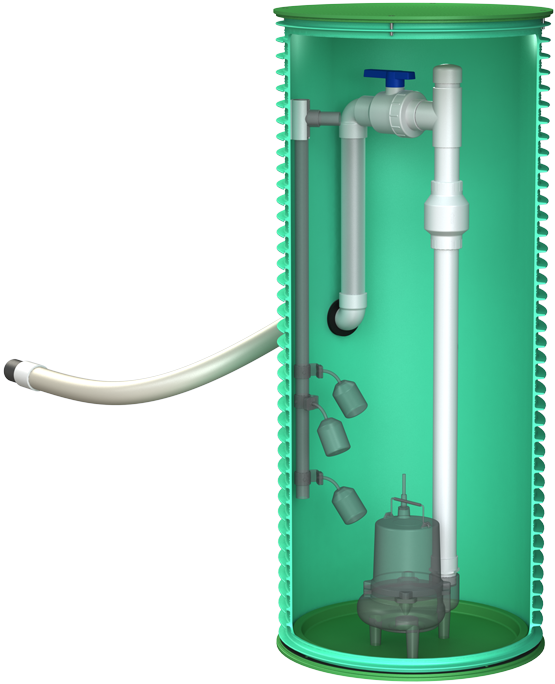

AFSPBA Pump Basin Typical Application

AFS Pump Basins Assemblies are designed to house effluent, sewage ejector, or grinder pumps in wastewater pumping systems. AFS Sump Pump Basin Assemblies allow specification, delivery, and installation of a complete pump, basin, and discharge plumbing system in a convenient manufactured package. All internal plumbing is complete prior to shipment saving valuable time in the field.

AFSPBA Pump Basin Technical Details

• 24" diameter PVC IPEX Utra-Rib ribbed riser pipe body
• Heights from 36 to 144 inches in 12" increments
• Orenco fiberglass bonded base and gasketed lid
• 1.5" Schedule 80 PVC discharge piping and fittings with 1.25" male adapter included
• 1.5" Union Ball Valve included
• Float bracket
• 1.88 gallons per inch, 24 gallons per foot
• Made to order - please allow 1-3 days to ship

AFSPBA Pump Basin Features

• SCH40 PVC plumbing
• True-union ball valve
• PVC swing check valve
• Gauge connection
• Float mounting bracket
• Ultra-Rib 24” PVC riser pipe
• Orenco Systems molded fiberglass base and access cover
• Stainless steel lid fasteners and wrench included
• Ty-Seal Gasket for 4” inlet pipe shipped loose for field installation

AFSPBA Pump Basin Specifications:

• Capacity: 24 gallons per foot
• Weight: 22 pounds per foot, add 50 pounds for base and lid and plumbing
• Riser pipe material: 24” Ultra-Rib riser pipe
• Base material: FRP encapsulated wood core epoxy bonded to riser pipeaccess
• Cover material: FRP encapsulated wood core with neoprene gasket and stainless steel fasteners
• Basin capacity: 1.88 gallons/inch
• Plumbing material: SCH40 PVC
• Discharge fitting: 1.5” female NPT 1.25" male adapter included
